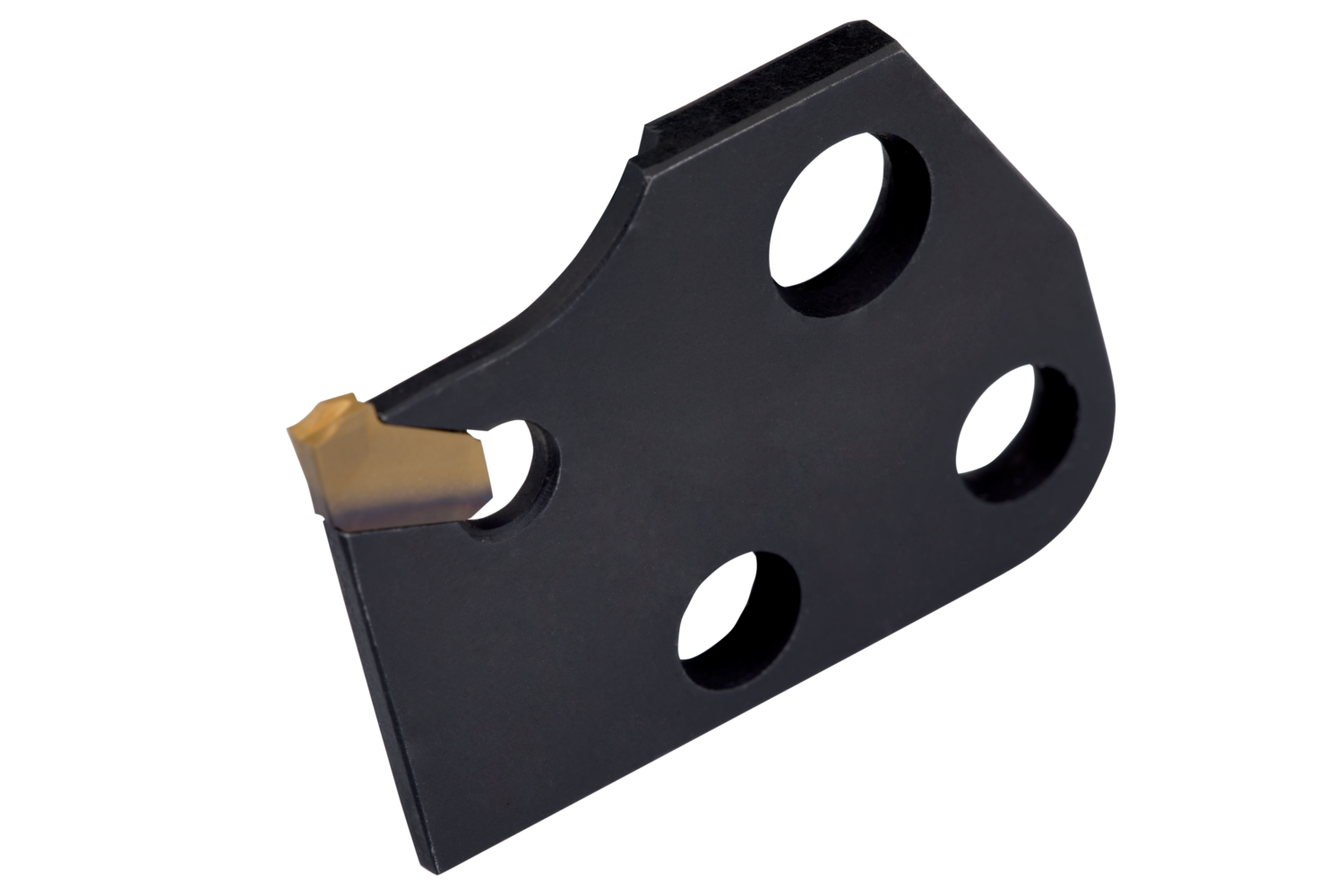

PRAMET XLCFN 250325-4.00 Turning holders for parting, grooving and copy turning

Product Code: XLCFN 250325-4.00

$163.15$148.32 Ex. GST

Product Code: XLCFN 250325-4.00 SKU XLCFN 250325-4.00 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Spring clamp parting and grooving tool blade for holding a single ended insert with 4mm cutting width (designation LFMX 4.1-. ), tool style assembly with MS-EN.. (KMP)(S), right or left hand side, insert parallel to the shank for a maximum grooving depth of 25mm, for shallow and deep radial grooving, parting-off and tube parting-off

Additional information

Weight 0.1584 kg
barcode
Additional Information

Description: Value
EAN number: 3603602916891
Product number (SAP): 84000317
Ordering code ANSI: XLCFN 250325-4.00
Gross weight – grams: 60.5
Functional height – millimeter (HF): 24 mm
Shank height – millimeter (H): 29 mm
Functional length – millimeter (LF): 50 mm
Cutting width – millimeter (CW): 4.1 mm
Cutting depth maximum – millimeter (CDX): 25 mm
Net weight – grams: 40
ISO: XLCFN250325-4.00

Brand

PRAMET
