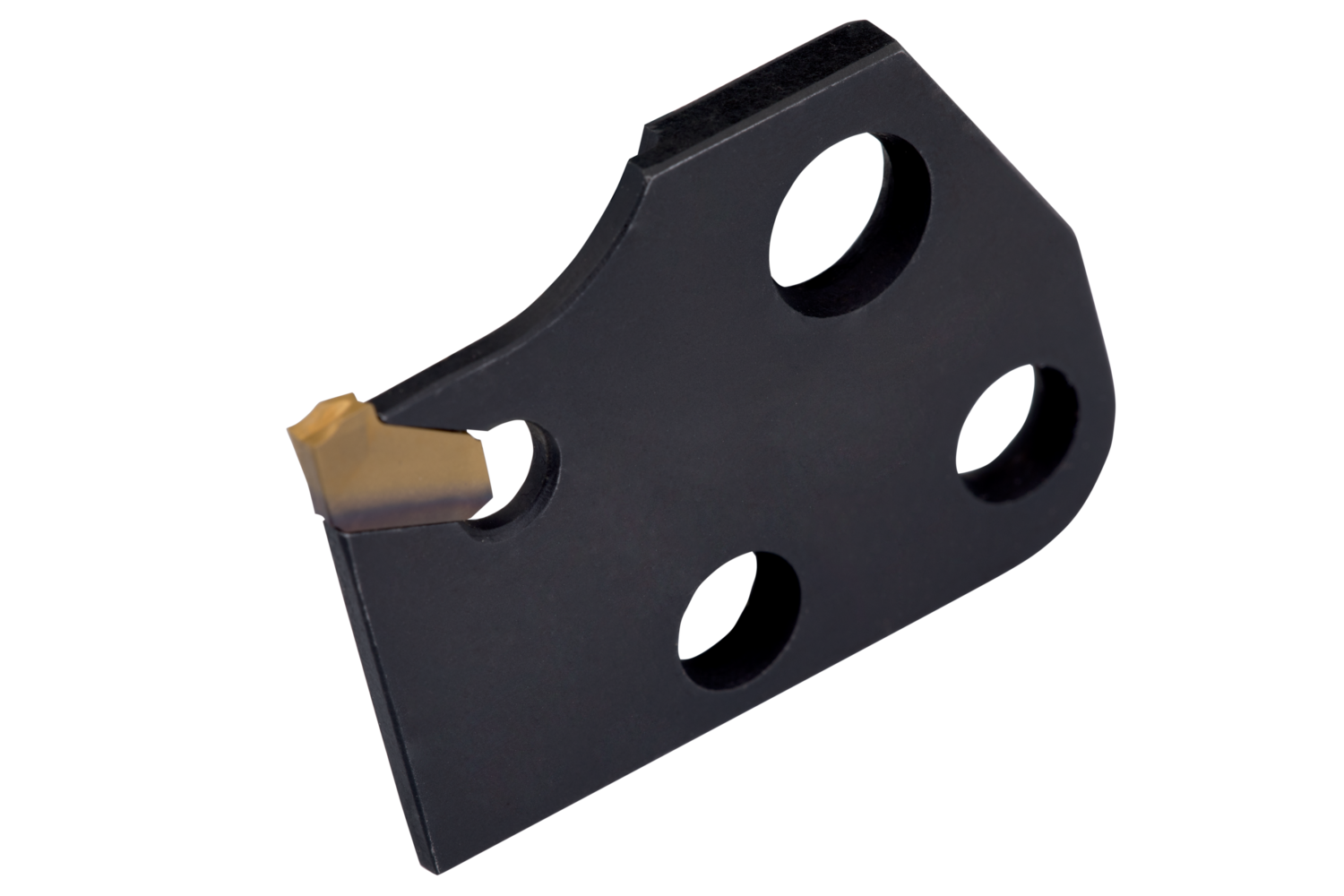

PRAMET XLCFN 250425-5.00 Turning holders for parting, grooving and copy turning

Product Code: XLCFN 250425-5.00

$165.42$150.38 Ex. GST

Product Code: XLCFN 250425-5.00 SKU XLCFN 250425-5.00 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Spring clamp parting and grooving tool blade for holding a single ended insert with 5mm cutting width (designation LFMX 5.1-. ), tool style assembly with MS-EN.. (KMP)(S), right or left hand side, insert parallel to the shank for a maximum grooving depth of 25mm, for shallow and deep radial grooving, parting-off and tube parting-off

Additional information

Weight 0.1606 kg
barcode
Additional Information

Description: Value
EAN number: 3603602916976
Product number (SAP): 84000361
Ordering code ANSI: XLCFN 250425-5.00
Gross weight – grams: 64
Functional height – millimeter (HF): 24 mm
Shank height – millimeter (H): 29 mm
Functional length – millimeter (LF): 50 mm
Cutting width – millimeter (CW): 5.1 mm
Cutting depth maximum – millimeter (CDX): 25 mm
Net weight – grams: 45
ISO: XLCFN250425-5.00

Brand

PRAMET
