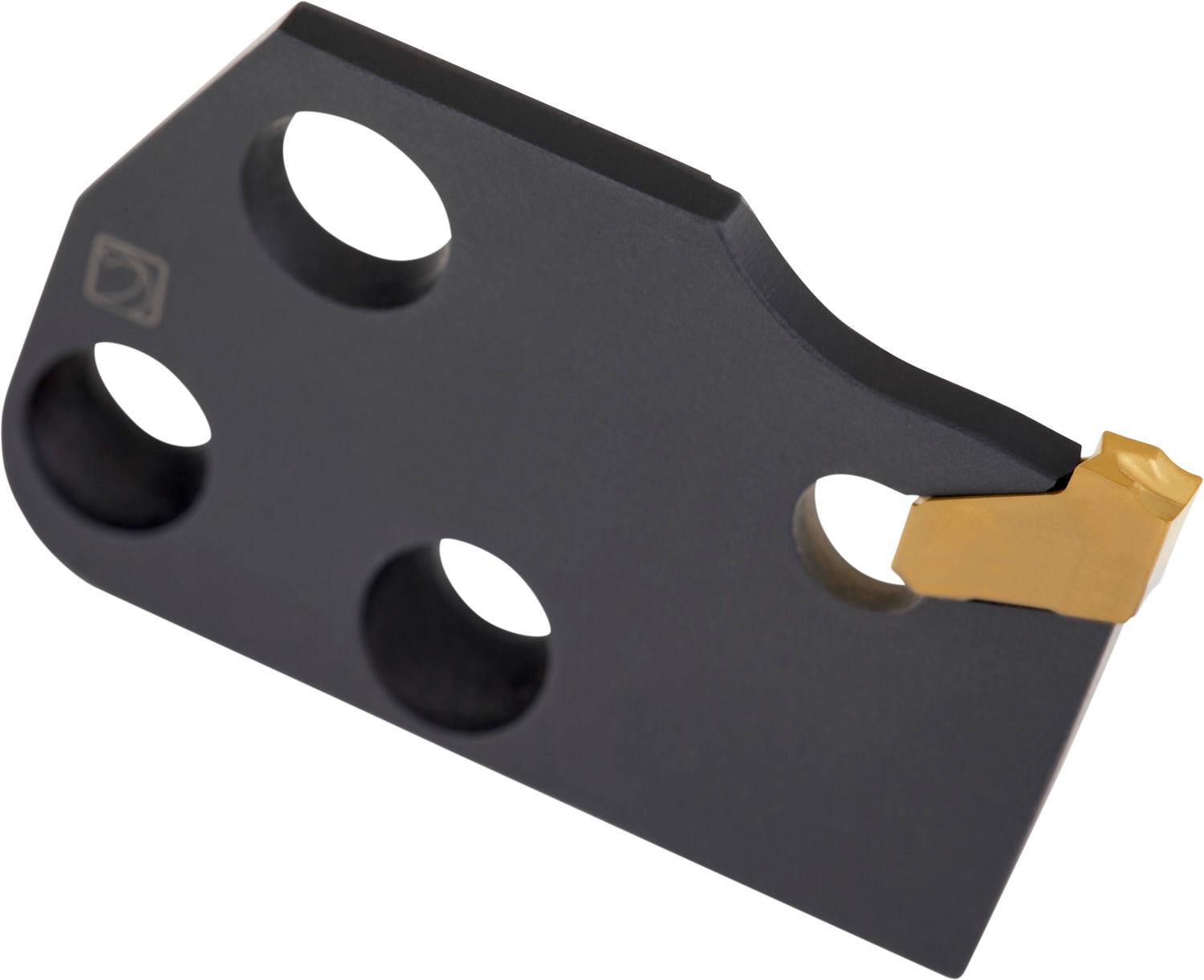

PRAMET XLXFL 250220-3.00-100 Turning holders for parting, grooving and copy turning

Product Code: XLXFL 250220-3.00-100

$171.08$155.53 Ex. GST

Product Code: XLXFL 250220-3.00-100 SKU XLXFL 250220-3.00-100 Categories , ,
PRAMET XLXFL 250220-3.00-100 Turning holders for parting, grooving and copy turning

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Spring clamp parting and grooving tool blade for holding a single ended insert with 3mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (KMP)(S), left handed with insert parallel to the shank for a maximum grooving depth of 20mm, with a counter clockwise curved blade for face grooving a diameter range of 100 and 155mm

Additional information

Weight 0.1661 kg
barcode
Additional Information

Description: Value
EAN number: 3603602917126 Product number (SAP): 84000385 Ordering code ANSI: XLXFL 250220-3.00-100 Gross weight: 50.5 grams Shank height (H): 29 mm Functional height (HF): 24 mm Functional length (LF): 46 mm Cutting width (CW): 3.1 mm Cutting depth maximum (CDX): 20 mm Minimum axial groove inside diameter (DAXIN): 100 mm Maximum axial groove outside diameter (DAXX): 155 mm Net weight: 30 grams ISO: XLXFL250220-3.00-100

Brand

PRAMET
