PRAMET XLXFL 250220-3.00-150 Turning holders for parting, grooving and copy turning

Description

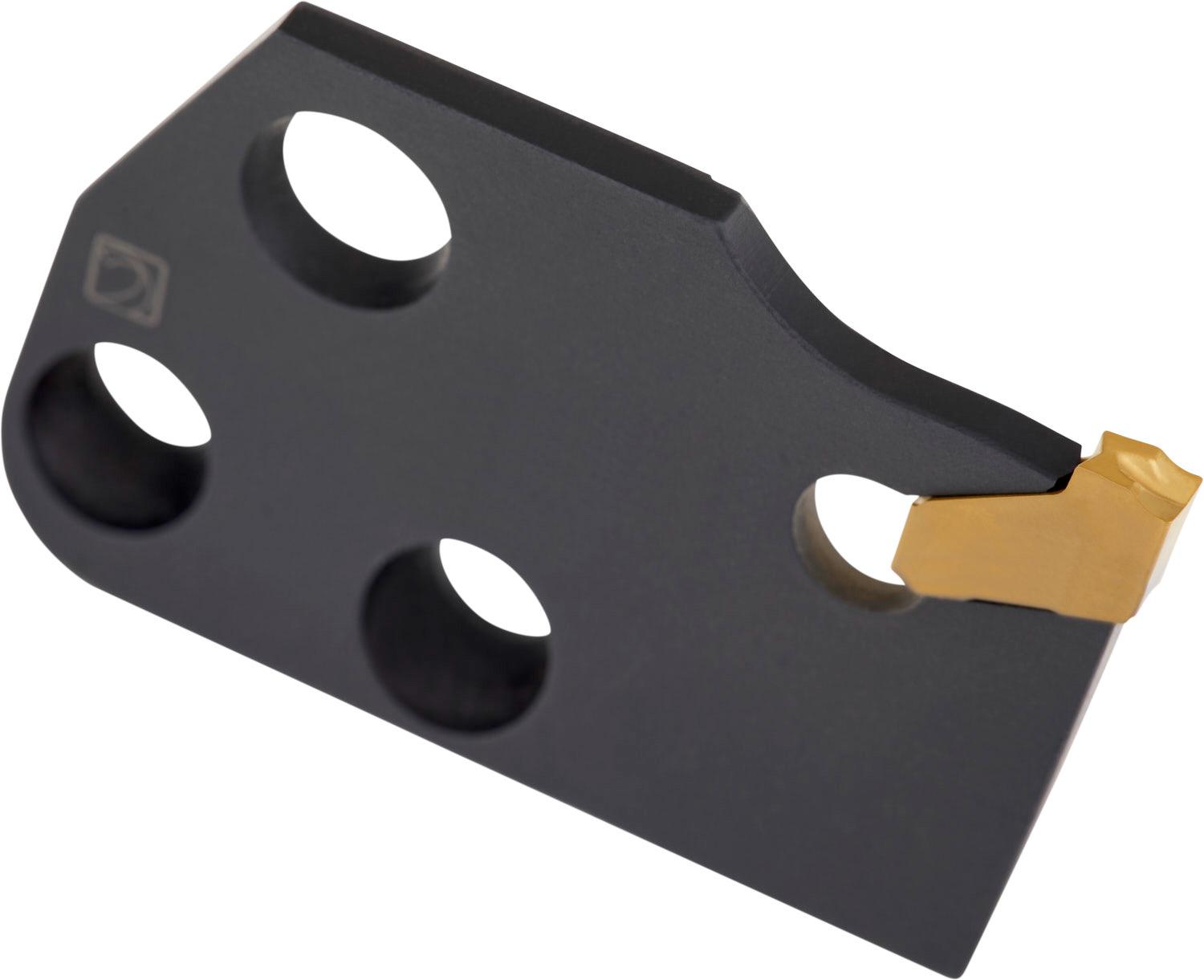

Spring clamp parting and grooving tool blade for holding a single ended insert with 3mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (KMP)(S), left handed with insert parallel to the shank for a maximum grooving depth of 20mm, with a counter clockwise curved blade for face grooving a diameter range of 150 and 280mm

Additional information

Weight	0.1661 kg
barcode
Additional Information	Description: Value EAN number: 3603602917133 Product number (SAP): 84000386 Ordering code ANSI: XLXFL 250220-3.00-150 Gross weight – grams: 47.7 Shank height – millimeter (H): 29 mm Functional height – millimeter (HF): 24 mm Functional length – millimeter (LF): 46 mm Cutting width – millimeter (CW): 3.1 mm Cutting depth maximum – millimeter (CDX): 20 mm Minimum axial groove inside diameter – millimeter (DAXIN): 150 mm Maximum axial groove outside diameter – millimeter (DAXX): 280 mm Net weight – grams: 30 ISO: XLXFL250220-3.00-150

PRAMET XLXFL 250220-3.00-150 Turning holders for parting, grooving and copy turning

Need Technical Advice?

Description

Additional information

Brand

PRAMET
