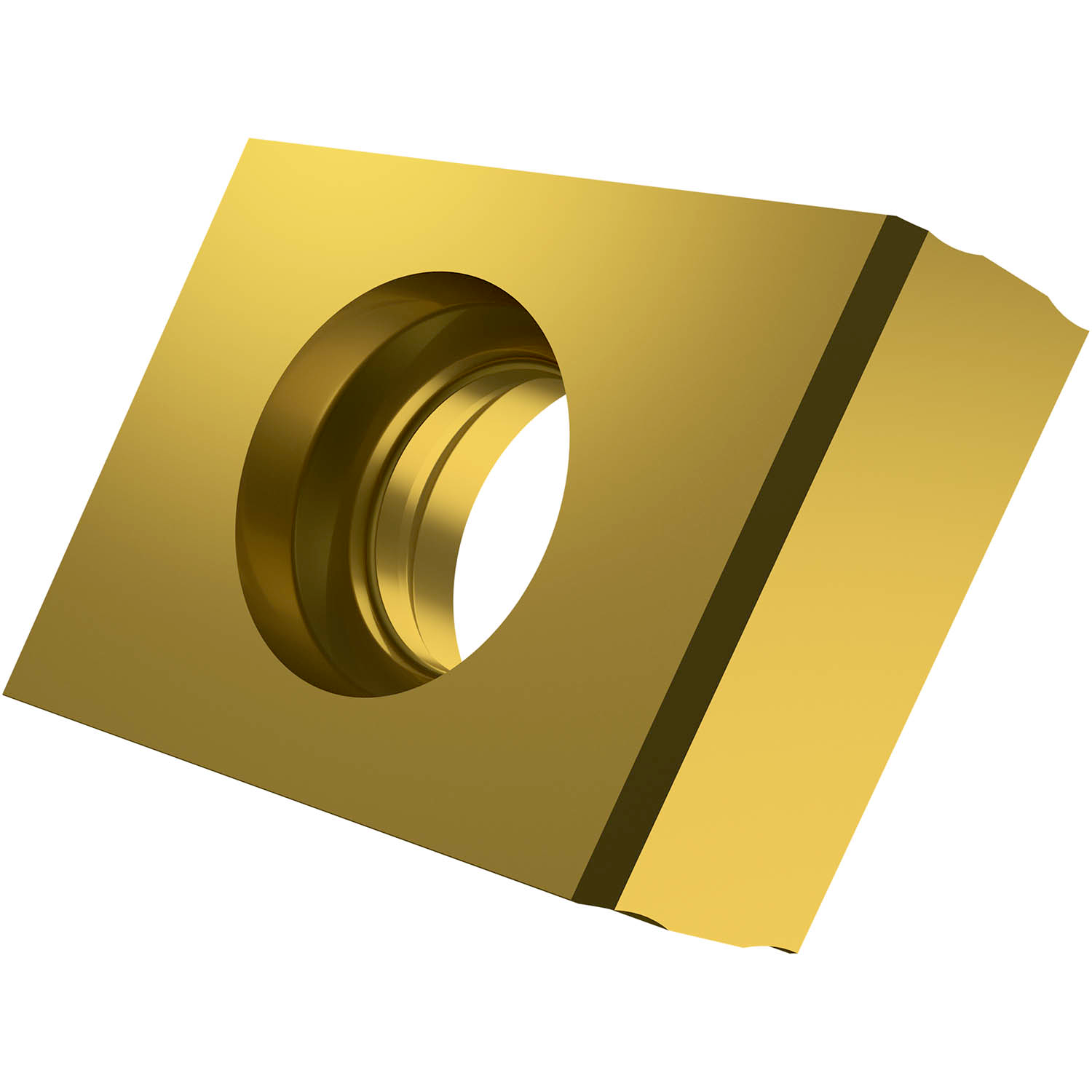

PRAMET XNHQ 1606AZTN:M8330 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603603389908
Product number (SAP): 80030256
Ordering code ANSI: XNHQ 1606AZTN:M8330
Gross weight – grams: 14.097
Corner chamfer length – millimeter (BCH): 0.5 mm
Inscribed circle diameter – millimeter (IC): 12 mm
Fixing hole diameter – millimeter (D1): 5.9 mm
Cutting edge length – millimeter (L): 16 mm
Insert width – millimeter (W1): 6.4 mm
Grade: M8330
Insert Clearance Code and Angle: N 0°
Insert size: 16
Insert Type: Q
Insert shape code (SC): X – Special design
ISO: XNHQ1606AZTN:M8330
