PRAMET XP 20ER-FM:M8345 Milling Insert for Sidelock

Product Code: XP 20ER-FM:M8345

$61.75$56.14 Ex. GST

Product Code: XP 20ER-FM:M8345 SKU XP 20ER-FM:M8345 Categories CUTTING TOOLS (HSS & Carbide), G6 - Mill Ins SideLok, Milling

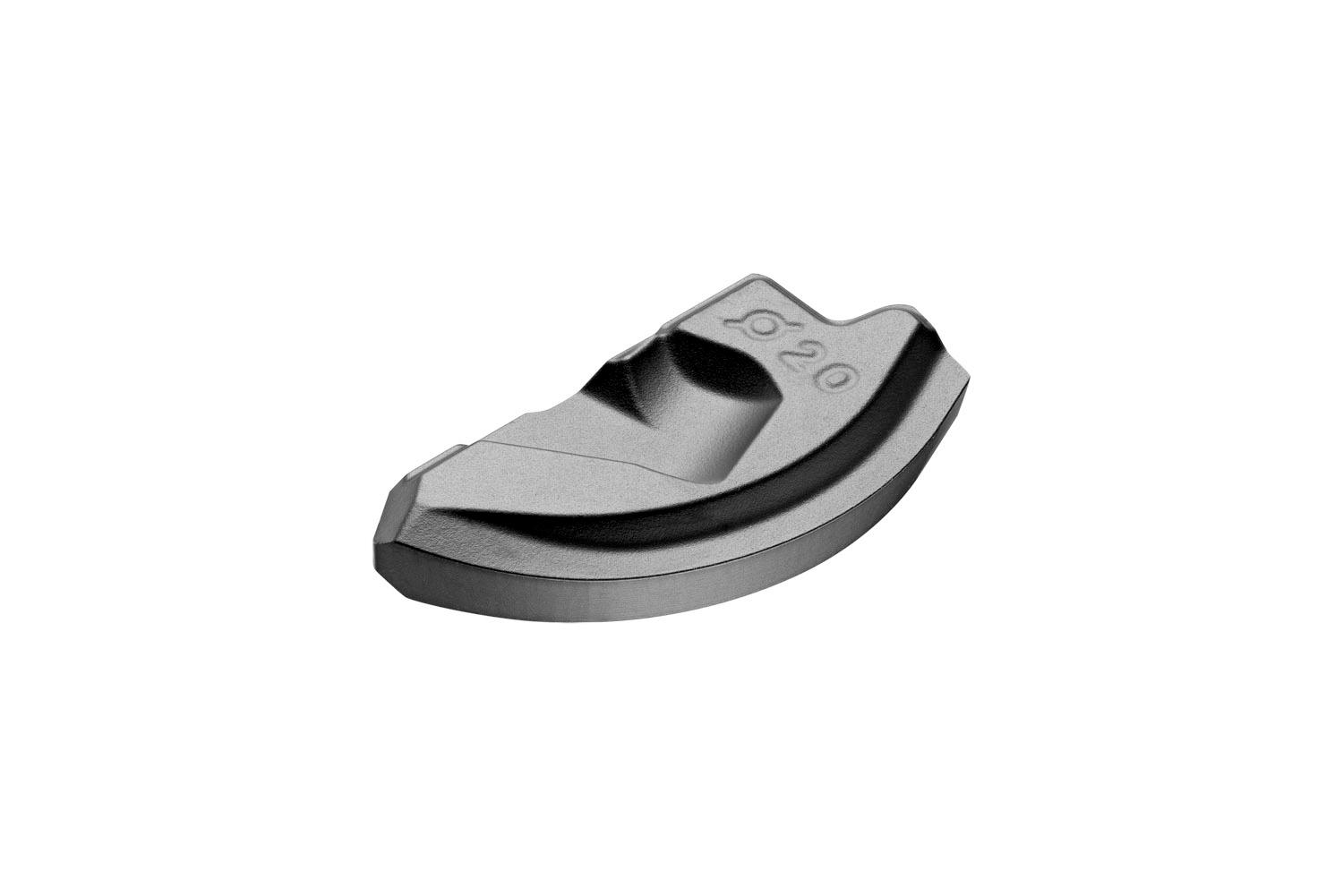

PRAMET XP 20ER-FM:M8345 Milling Insert for Sidelock

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ball nose segment copy milling insert for a diameter of 20mm for a maximum depth of cut of 10.0mm, FM geometry and M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel

Additional information

Weight	0.06 kg
barcode
Additional Information	Description: Value EAN number: 3603602915467 Product number (SAP): 80023530 Ordering code ANSI: XP 20ER-FM:M8345 Gross weight – grams: 2.584 Insert width – millimeter (W1): 20 mm Insert thickness – millimeter (S): 2.5 mm Grade: M8345 Insert size: 20 Chipbreaker manufacturer's designation (CBMD): FM ISO: XP20ER-FM:M8345
