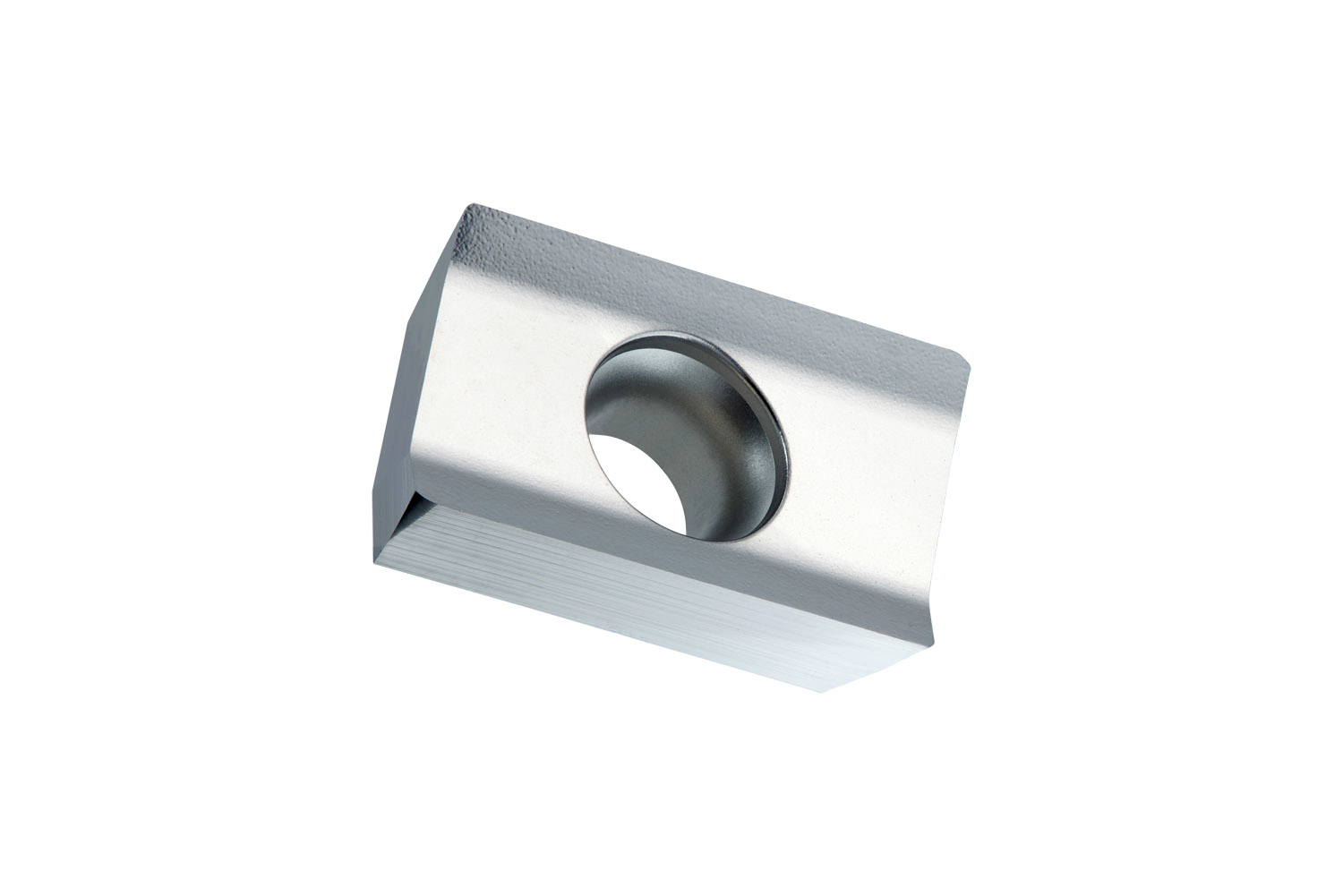

PRAMET XPHT 160408F-FA:HF7 Milling inserts – geometry FA

Product Code: XPHT 160408F-FA:HF7

$38.86$35.33 Ex. GST

Product Code: XPHT 160408F-FA:HF7 SKU XPHT 160408F-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert XPHT 1604 with chip-breakers, special shape for a maximum depth of cut of 15.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-H and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal

Additional information

Weight 0.0377 kg
barcode
Additional Information

Description: Value
EAN number: 3603602874412
Product number (SAP): 80005003
Ordering code ANSI: XPHT 160408F-FA:HF7
Gross weight – grams: 6.946
Insert width – millimeter (W1): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 15.88 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: HF7
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: P 11°
Insert size: 16
Insert Type: T
Insert shape code (SC): X – Special design
ISO: XPHT160408F-FA:HF7

Brand

PRAMET
