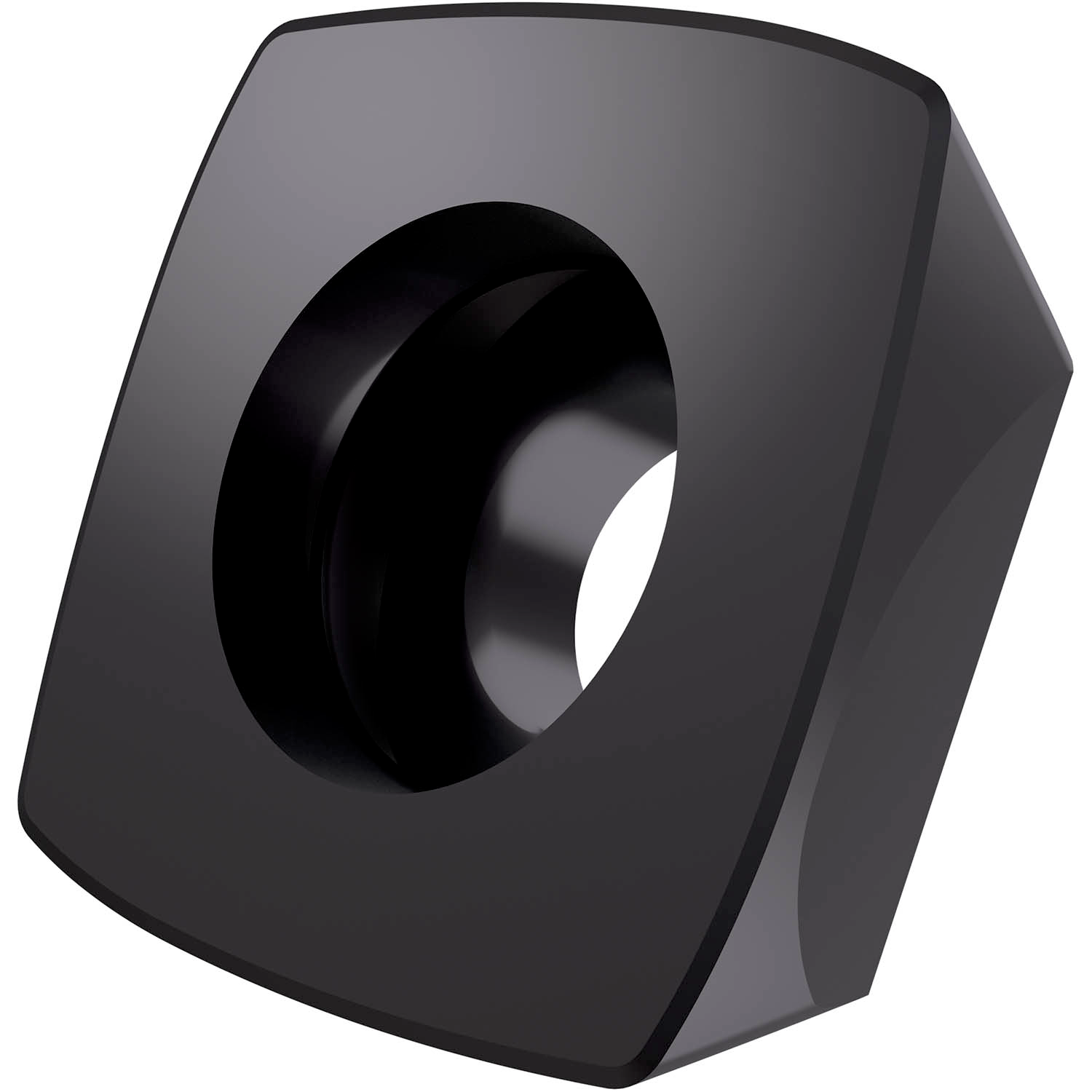

PRAMET ZDCW 070304:M8310 Milling Insert for HFC Cutters

Product Code: ZDCW 070304:M8310

$21.42$19.47 Ex. GST

Product Code: ZDCW 070304:M8310 SKU ZDCW 070304:M8310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ZDCW 0703 with a plane rake surface, special shape for a maximum depth of cut of 1.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-C, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01 -K10 and H05 -H15 for machining of cast-iron and hardened material

Additional information

Weight 0.0208 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072763
Product number (SAP): 80026131
Ordering code ANSI: ZDCW 070304:M8310
Gross weight – grams: 1.074
Inscribed circle diameter – millimeter (IC): 6.8 mm
Fixing hole diameter – millimeter (D1): 2.6 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: M8310
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: D 15°
Insert size: 07
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): X – Special design
ISO: ZDCW070304:M8310

Brand

PRAMET
