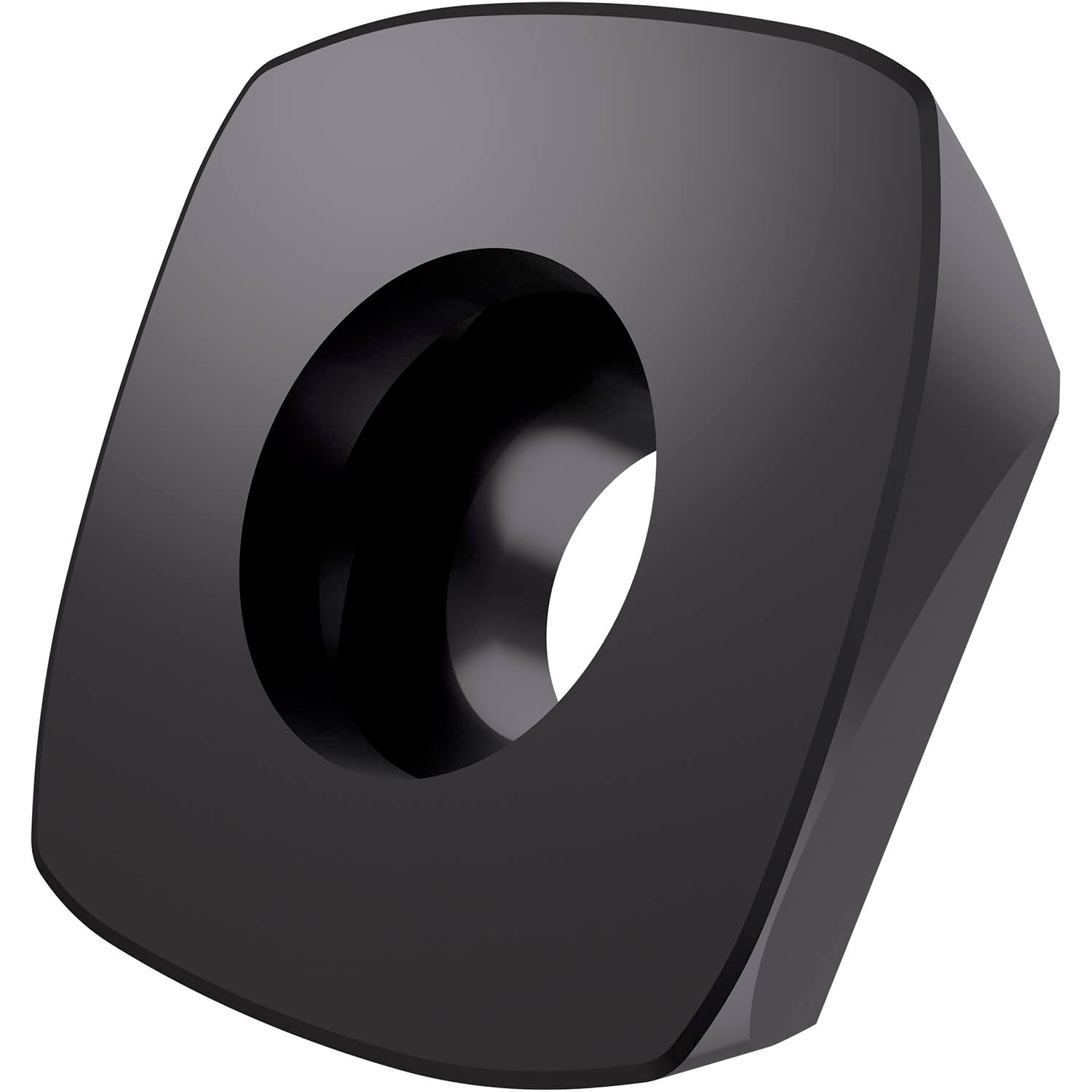

PRAMET ZDEW 120408:M8325 Milling Insert for HFC Cutters

Product Code: ZDEW 120408:M8325

$28.78$26.16 Ex. GST

Product Code: ZDEW 120408:M8325 SKU ZDEW 120408:M8325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ZDEW 1204 with a plane rake surface, special shape and high-feed design for a maximum depth of cut of 1.6mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide

Additional information

Weight 0.0279 kg
barcode
Additional Information

Description: Value
EAN number: 3603602913821
Product number (SAP): 80023292
Ordering code ANSI: ZDEW 120408:M8325
Gross weight – grams: 4.902
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8325
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: D 15°
Insert size: 12
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): X – Special design
ISO: ZDEW120408:M8325

Brand

PRAMET
