$239.53$217.75 Ex. GST

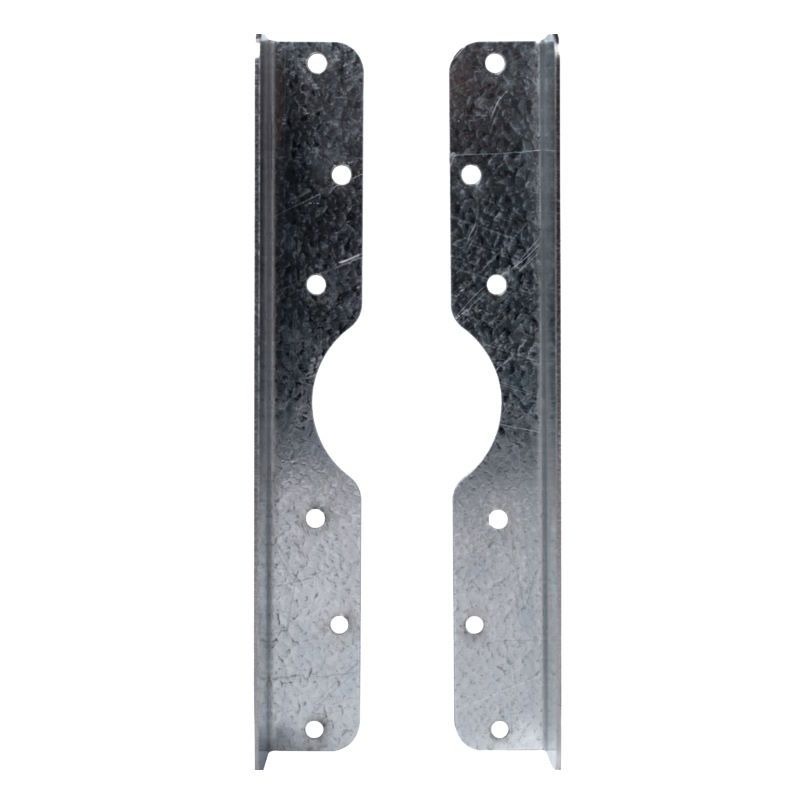

![PRYDA - FRAME FIX SERVICE HOLE BRACE 230 x 34 x 31 x 1.55mm [10]](https://shoponline.millerstooling.com.au/wp-content/uploads/2025/01/PFF2_img1.jpg)

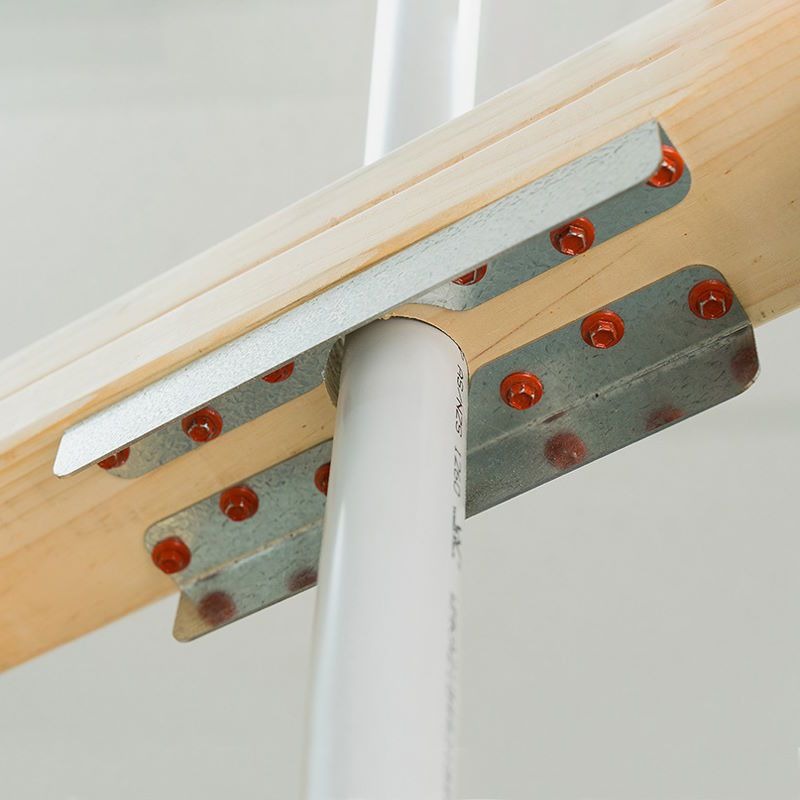

Frame Fix stiffens the timber frame top plate, when a large penetration through the timber is needed for pipes or cables. The two part bracket can be installed before or after the installation and restores the integrity of the frame to meet the various building codes.
Features & Benefits
Supports the frame top plate when a large penetration is needed
Structurally sound in accordance with standard AS1684 & AS1720
Perfect for large conduits, sewer pipes, vacuum ducting & more
Quick installation to top plate using self drilling screws
Can be installed before or after pipe installation
Suitable for both single and double frame top plates
Dimensions: 240 x 34 x 31mm
Screws included
| Dimensions | Length 24cm x Width 3.4cm x Depth 3.1cm |
|---|---|
| barcode | |
| Additional Information | Part Number: PFF2 |
