PTD CO500-121/4 Cobalt Drills

Description

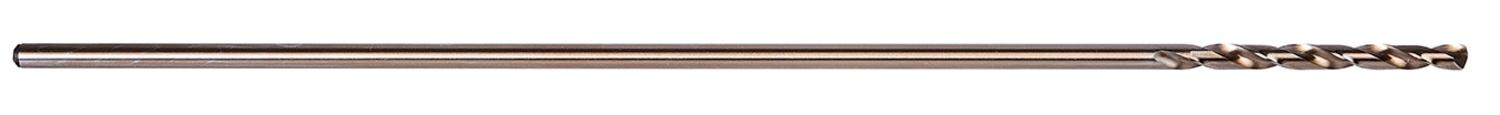

Aircraft extension-length drill with straight shank, diameter 0.2500″ (1/4) with an overall length of 12″ and flute length of 2.3/4″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0680 kg
Dimensions
barcode	086071526168
Additional Information	Description: Value Product name: CO500-121/4 Cutting diameter – fractional inch (DC): 1/4 Cutting diameter – inch (DC): 0.25 inch Length chip flute – fractional inch (LCF): 2.3/4 Overall length – fractional inch (OAL): 12" EAN number: 086071526168 Product number (SAP): 86032222 Gross weight – grams: 68 Cutting diameter – millimeter (DC): 6.35 mm Overall length – millimeter (OAL): 304.8 mm ISO: CO500-121/4
