PTD CO500-123/16 Cobalt Drills

Description

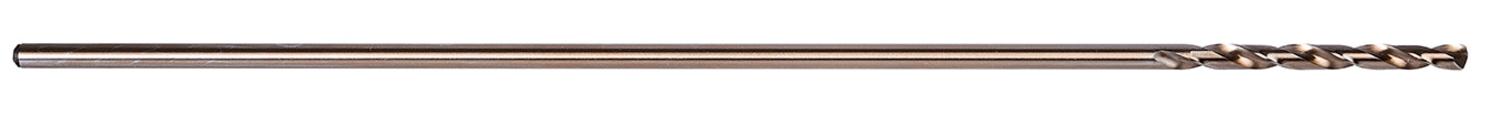

Aircraft extension-length drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 12″ and flute length of 2.5/16″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0390 kg
Dimensions
barcode	086071526120
Additional Information	Description: Value Product name: CO500-123/16 Cutting diameter – fractional inch (DC): 3/16 Cutting diameter – inch (DC): 0.1875 inch Length chip flute – fractional inch (LCF): 2.5/16 Overall length – fractional inch (OAL): 12" EAN number: 086071526120 Product number (SAP): 86032227 Gross weight – grams: 259.3 Cutting diameter – millimeter (DC): 4.76 mm Overall length – millimeter (OAL): 304.8 mm ISO: CO500-123/16
