PTD CO500-615/64 Cobalt Drills

Product Code: CO500-615/64

$44.30$40.27 Ex. GST

Product Code: CO500-615/64 SKU CO500-615/64 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

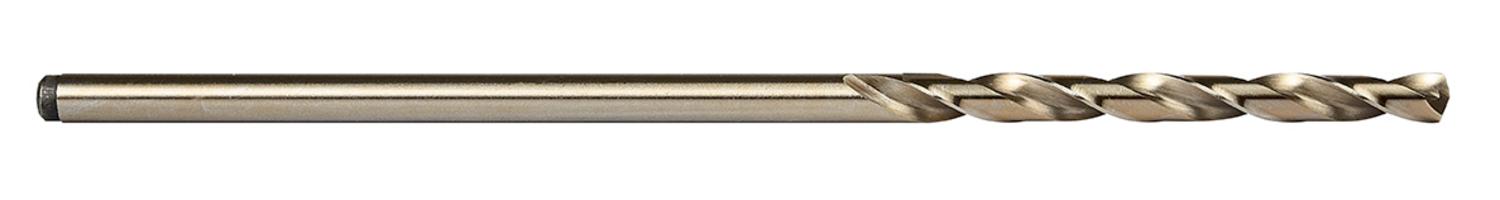

Aircraft extension-length drill with straight shank, diameter 0.2344″ (15/64) with an overall length of 6″ and flute length of 2.5/8″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight 0.0280 kg
Dimensions
barcode

086071536150

Additional Information

Description: Value
Product name: CO500-615/64
Cutting diameter – fractional inch (DC): 15/64
Cutting diameter – inch (DC): 0.2344 inch
Length chip flute – fractional inch (LCF): 2.5/8
Overall length – fractional inch (OAL): 6"
EAN number: 086071536150
Product number (SAP): 86032239
Gross weight – grams: 28.95
Cutting diameter – millimeter (DC): 5.95 mm
Overall length – millimeter (OAL): 152.4 mm
ISO: CO500-615/64
