PTD R10CO11/64 Cobalt Drills

Description

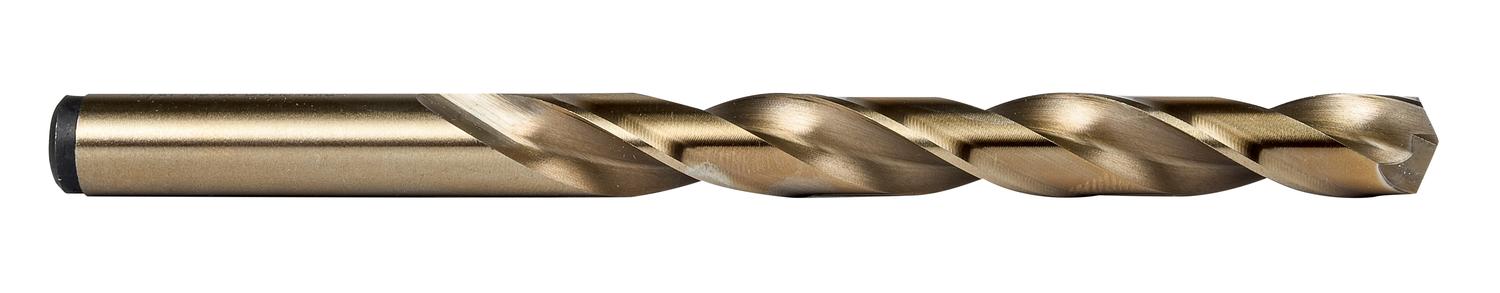

Jobber length drill with straight shank, diameter 0.1719″ (11/64) with an overall length of 3.1/4″ and flute length of 2.1/8″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0080 kg
Dimensions
barcode	086071103116
Additional Information	Description: Value EAN number: 086071103116 Product number (SAP): 86032376 Ordering code ANSI: R10CO11/64 Gross weight – grams: 8 Length chip flute – inch (LCF): 2.125 inch Cutting diameter – fractional inch (DC): 11/64 Cutting diameter – millimeter (DC): 4.37 mm Length chip flute – fractional inch (LCF): 2.1/8 Overall length – fractional inch (OAL): 3.1/4 Overall length – millimeter (OAL): 82.55 mm ISO: R10CO11/64
