PTD R10CO13/64 Cobalt Drills

Description

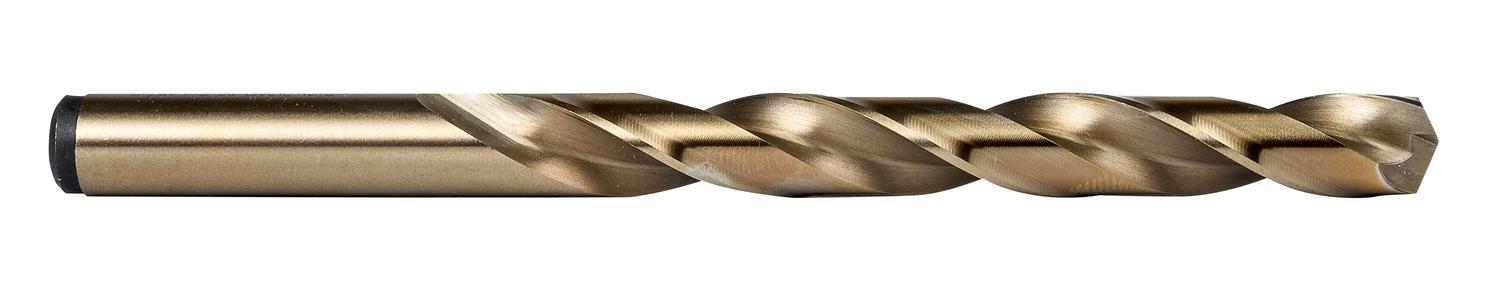

Jobber length drill with straight shank, diameter 0.2031″ (13/64) with an overall length of 3.5/8″ and flute length of 2.7/16″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0103 kg
Dimensions
barcode	086071103130
Additional Information	Description: Value EAN number: 086071103130 Product number (SAP): 86032378 Ordering code ANSI: R10CO13/64 Gross weight – grams: 12.083 Length chip flute – inch (LCF): 2.4375 inch Cutting diameter – fractional inch (DC): 13/64 Cutting diameter – millimeter (DC): 5.16 mm Length chip flute – fractional inch (LCF): 2.7/16 Overall length – fractional inch (OAL): 3.5/8 Overall length – millimeter (OAL): 92.08 mm ISO: R10CO13/64
