PTD R10CO3/16 Cobalt Drills

Product Code: R10CO3/16

$16.89$15.35 Ex. GST

Product Code: R10CO3/16 SKU R10CO3/16 Categories ,
PTD R10CO3/16 Cobalt Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

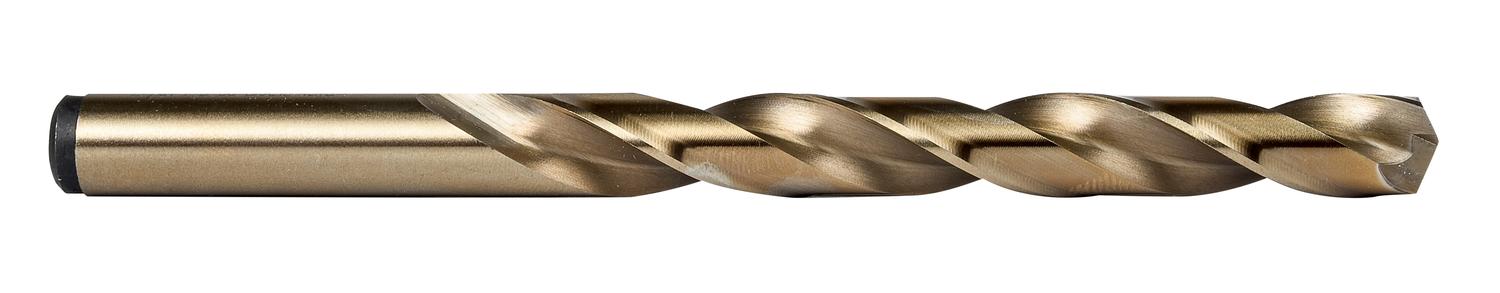

Jobber length drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 3.1/2″ and flute length of 2.5/16″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight 0.0090 kg
Dimensions
barcode

086071103123
Additional Information

Description: Value
EAN number: 086071103123
Product number (SAP): 86032391
Ordering code ANSI: R10CO3/16
Gross weight – grams: 9
Length chip flute – inch (LCF): 2.3125 inch
Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Length chip flute – fractional inch (LCF): 2.5/16
Overall length – fractional inch (OAL): 3.1/2
Overall length – millimeter (OAL): 88.9 mm
ISO: R10CO3/16
