PTD R10CO5/16 Cobalt Drills

Description

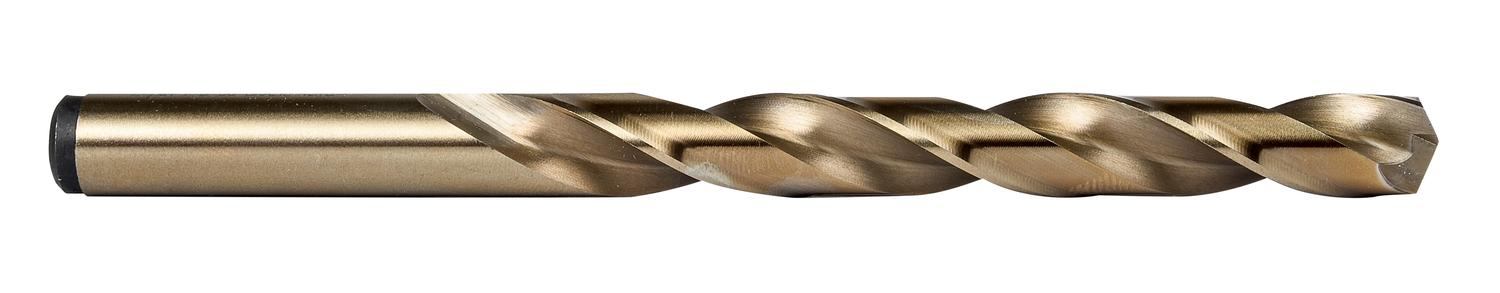

Jobber length drill with straight shank, diameter 0.3125″ (5/16) with an overall length of 4.1/2″ and flute length of 3.3/16″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0320 kg
Dimensions
barcode	086071103208
Additional Information	Description: Value EAN number: 086071103208 Product number (SAP): 86032402 Ordering code ANSI: R10CO5/16 Gross weight – grams: 32 Length chip flute – inch (LCF): 3.1875 inch Cutting diameter – fractional inch (DC): 5/16 Cutting diameter – millimeter (DC): 7.94 mm Length chip flute – fractional inch (LCF): 3.3/16 Overall length – fractional inch (OAL): 4.1/2 Overall length – millimeter (OAL): 114.3 mm ISO: R10CO5/16
