PTD R10CO5/8 Cobalt Drills

Description

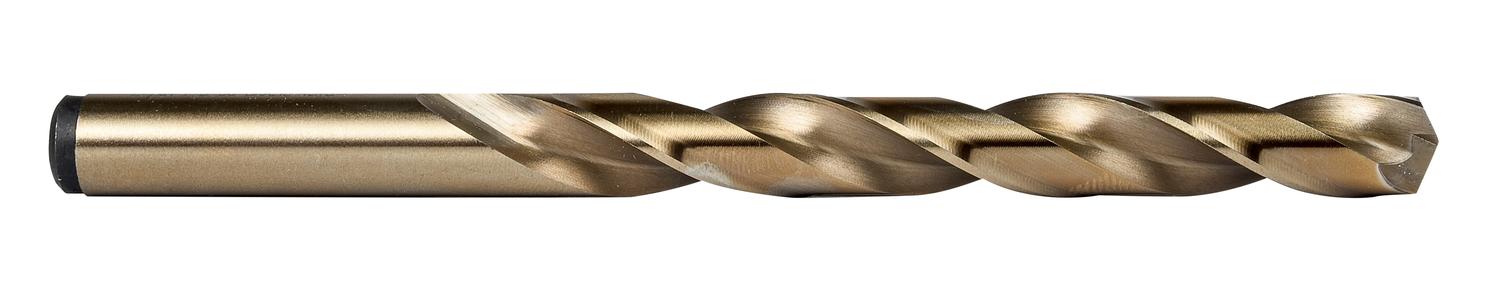

Jobber length drill with straight shank, diameter 0.6250″ (5/8) with an overall length of 7.1/8″ and flute length of 5.3/16″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.2130 kg
Dimensions
barcode	086071103406
Additional Information	Description: Value EAN number: 086071103406 Product number (SAP): 86032405 Ordering code ANSI: R10CO5/8 Gross weight – grams: 213 Length chip flute – inch (LCF): 5.1875 inch Cutting diameter – fractional inch (DC): 5/8 Cutting diameter – millimeter (DC): 15.88 mm Length chip flute – fractional inch (LCF): 5.3/16 Overall length – fractional inch (OAL): 7.1/8 Overall length – millimeter (OAL): 180.98 mm ISO: R10CO5/8
