PTD R15COH Cobalt Drills

Description

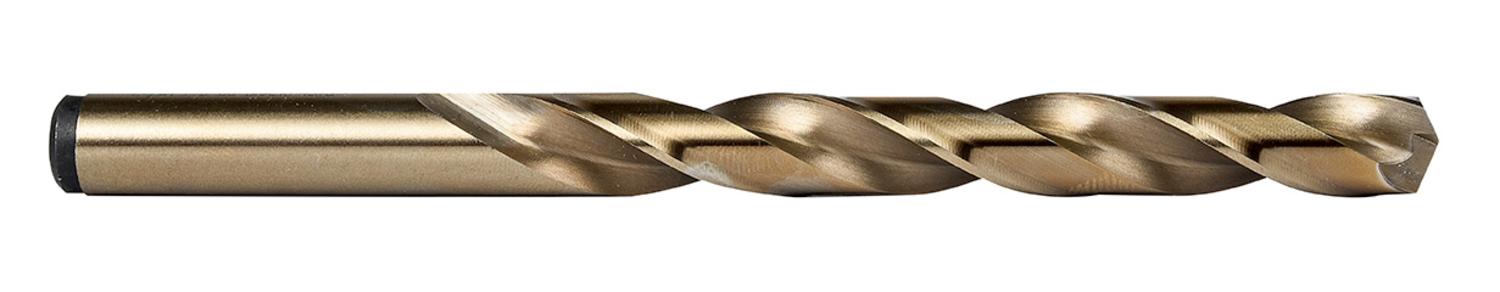

Jobber length drill with straight shank, diameter 0.2660″ (H) with an overall length of 4.1/8″ and flute length of 2.7/8″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0220 kg
Dimensions
barcode	086071153081
Additional Information	Description: Value EAN number: 086071153081 Product number (SAP): 86032471 Ordering code ANSI: R15COH Gross weight – grams: 22 Length chip flute – inch (LCF): 2.875 inch Cutting diameter – millimeter (DC): 6.76 mm Length chip flute – fractional inch (LCF): 2.7/8 Overall length – fractional inch (OAL): 4.1/8 Overall length – millimeter (OAL): 104.78 mm ISO: R15COH Cutting diameter – imperial letter (DC): H
