PTD R18AN20 HSS Jobber Drill (4)

Product Code: R18AN20

$9.17$8.34 Ex. GST

Product Code: R18AN20 SKU R18AN20 Categories ,
PTD R18AN20 HSS Jobber Drill (4)

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

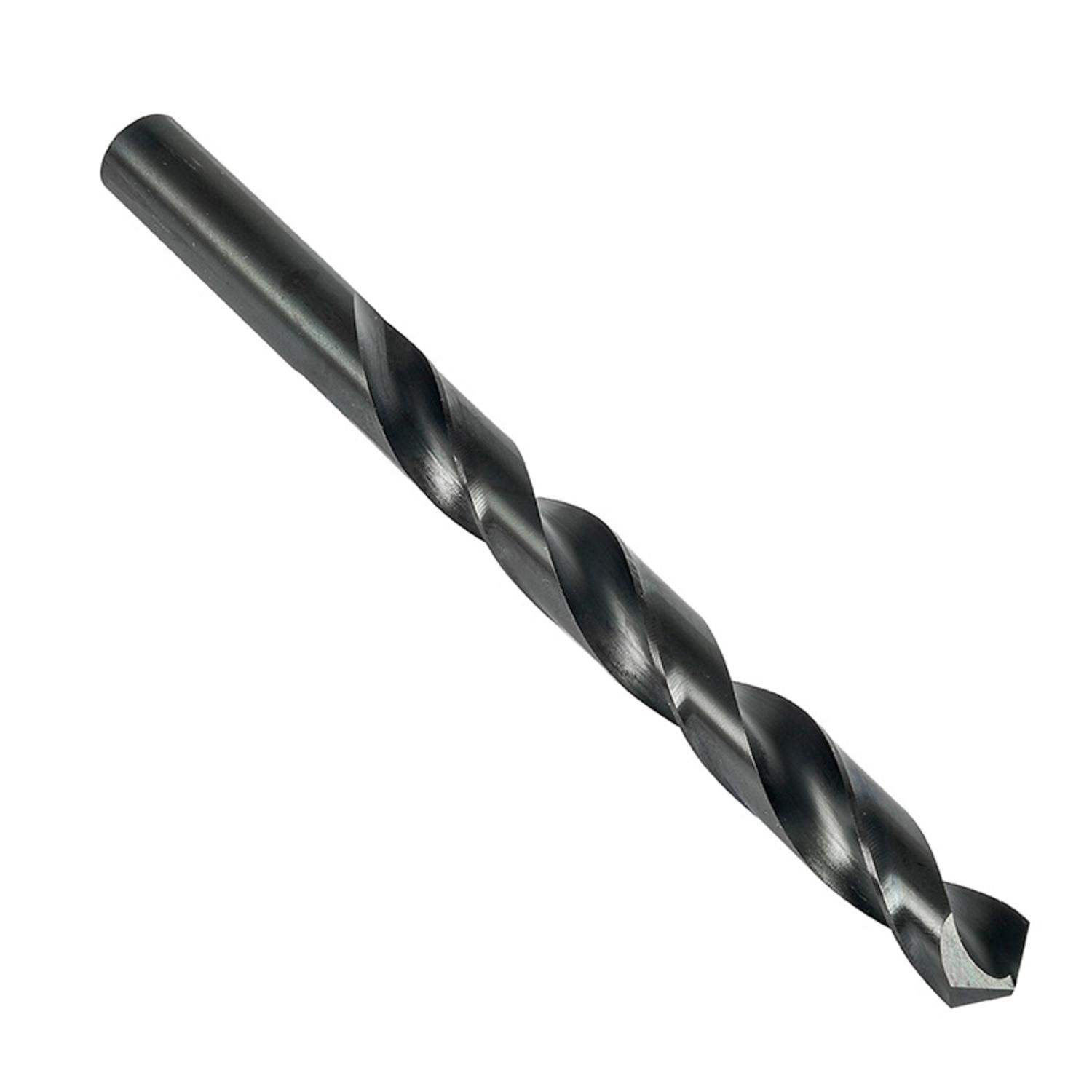

Jobber length drill with straight shank, diameter 0.1610″ (N20) with an overall length of 3.1/4″ and flute length of 2.1/8″ according to NAS907 Type A standard with 118° general purpose split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0059 kg
Dimensions
barcode

086071181206
Additional Information

Description: Value
EAN number: 086071181206
Product number (SAP): 86032502
Ordering code ANSI: R18AN20
Gross weight – grams: 5.94
Length chip flute – inch (LCF): 2.125 inch
Cutting diameter – millimeter (DC): 4.09 mm
Length chip flute – fractional inch (LCF): 2.1/8
Overall length – fractional inch (OAL): 3.1/4
Overall length – millimeter (OAL): 82.55 mm
ISO: R18AN20
Cutting diameter (wire gauge size) (DC): N20
