PTD R18BN43 HSS Jobber Drill (4)

Description

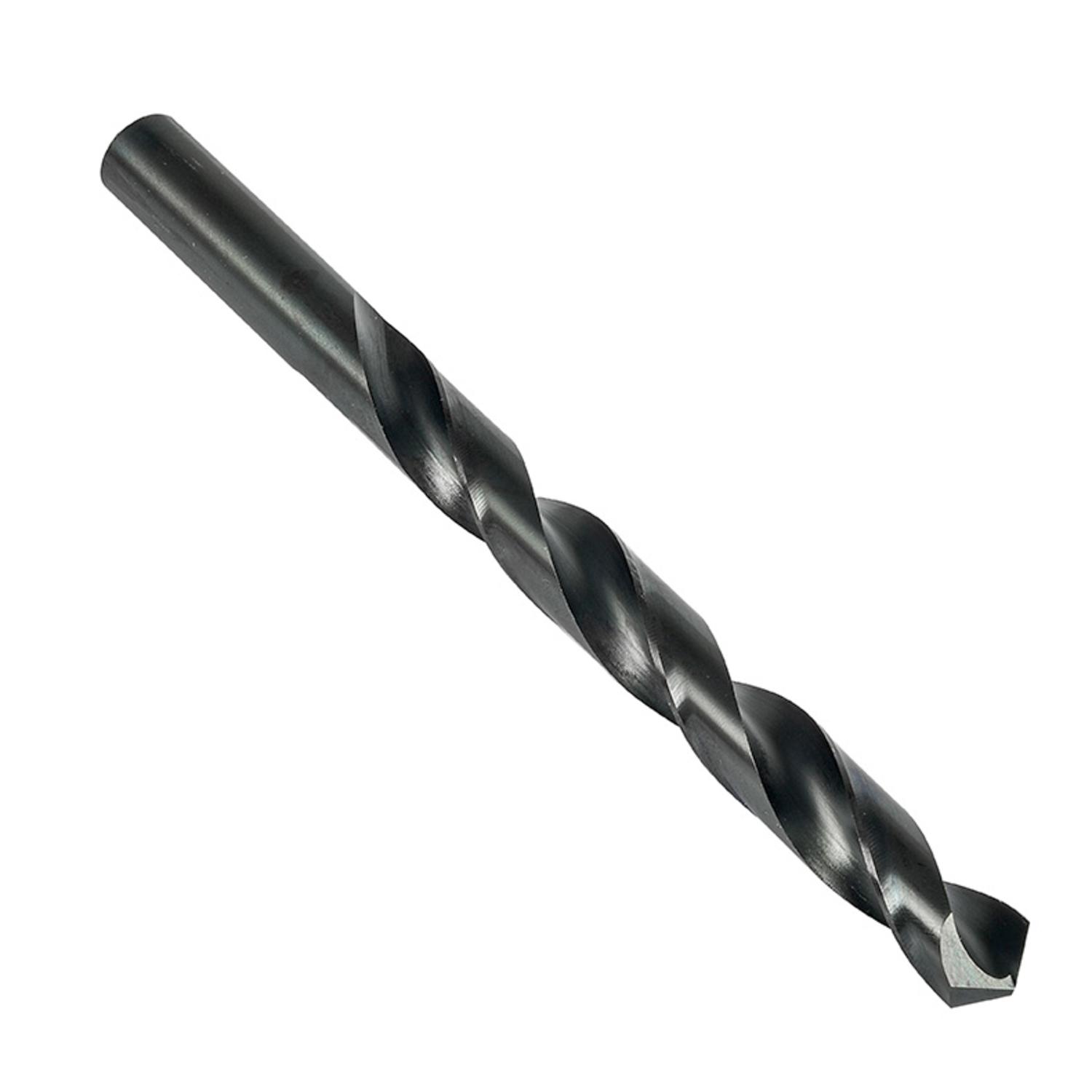

Jobber length drill with straight shank, diameter 0.0890″ (N43) with an overall length of 2.1/4″ and flute length of 1.1/4″ according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Additional information

Weight	0.0013 kg
Dimensions
barcode	086071182432
Additional Information	Description: Value EAN number: 086071182432 Product number (SAP): 86032579 Ordering code ANSI: R18BN43 Gross weight – grams: 1.3 Length chip flute – inch (LCF): 1.25 inch Cutting diameter – millimeter (DC): 2.26 mm Length chip flute – fractional inch (LCF): 1.1/4 Overall length – fractional inch (OAL): 2.1/4 Overall length – millimeter (OAL): 57.15 mm ISO: R18BN43 Cutting diameter (wire gauge size) (DC): N43
