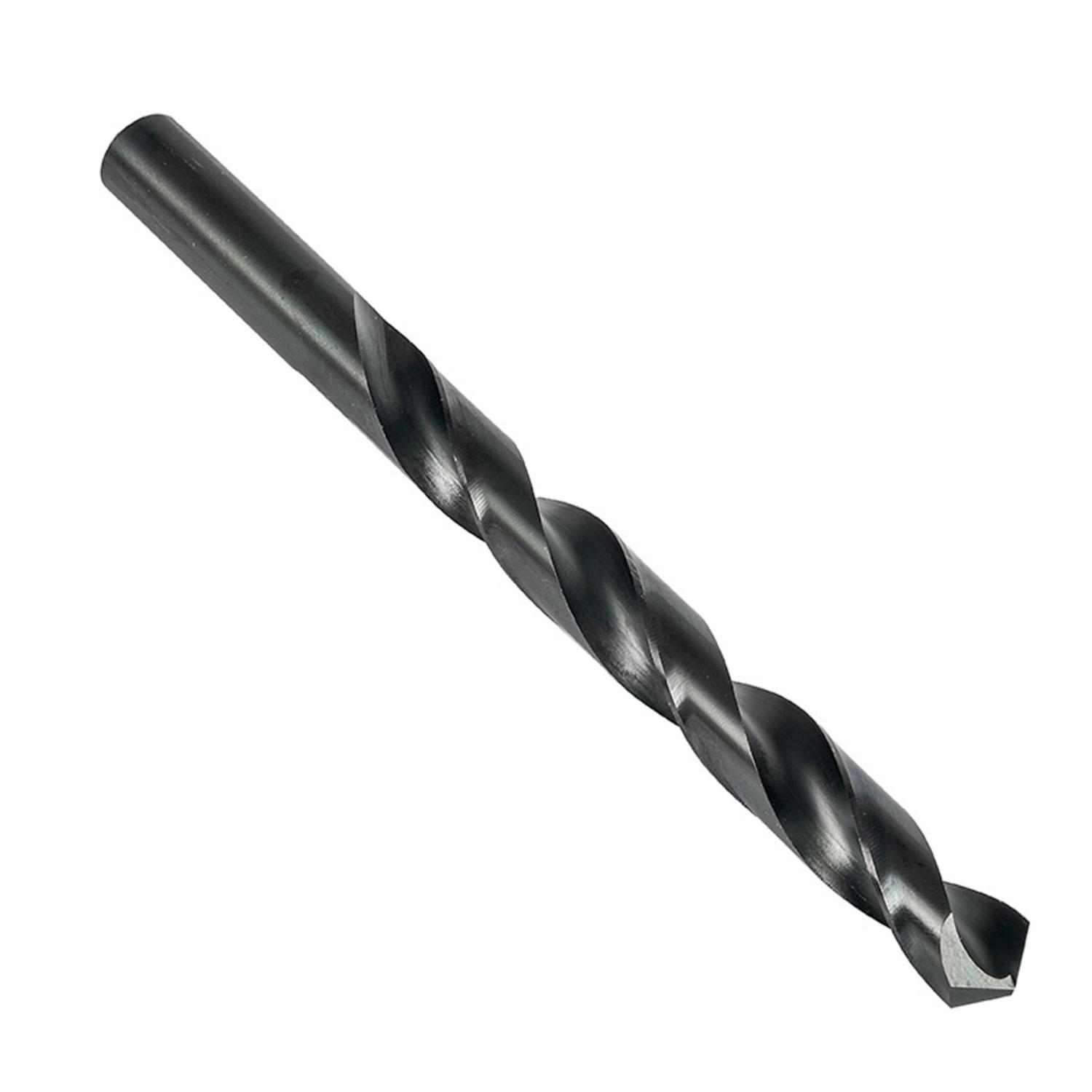

PTD R18BN45 HSS Jobber Drill (4)

Description

Jobber length drill with straight shank, diameter 0.0820″ (N45) with an overall length of 2.1/8″ and flute length of 1.1/8″ according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Additional information

Weight	0.0010 kg
Dimensions
barcode	086071182456
Additional Information	Description: Value EAN number: 086071182456 Product number (SAP): 86032581 Ordering code ANSI: R18BN45 Gross weight – grams: 1 Length chip flute – inch (LCF): 1.125 inch Cutting diameter – millimeter (DC): 2.08 mm Length chip flute – fractional inch (LCF): 1.1/8 Overall length – fractional inch (OAL): 2.1/8 Overall length – millimeter (OAL): 53.98 mm ISO: R18BN45 Cutting diameter (wire gauge size) (DC): N45
