PTD R18CON14 Cobalt Drills

Description

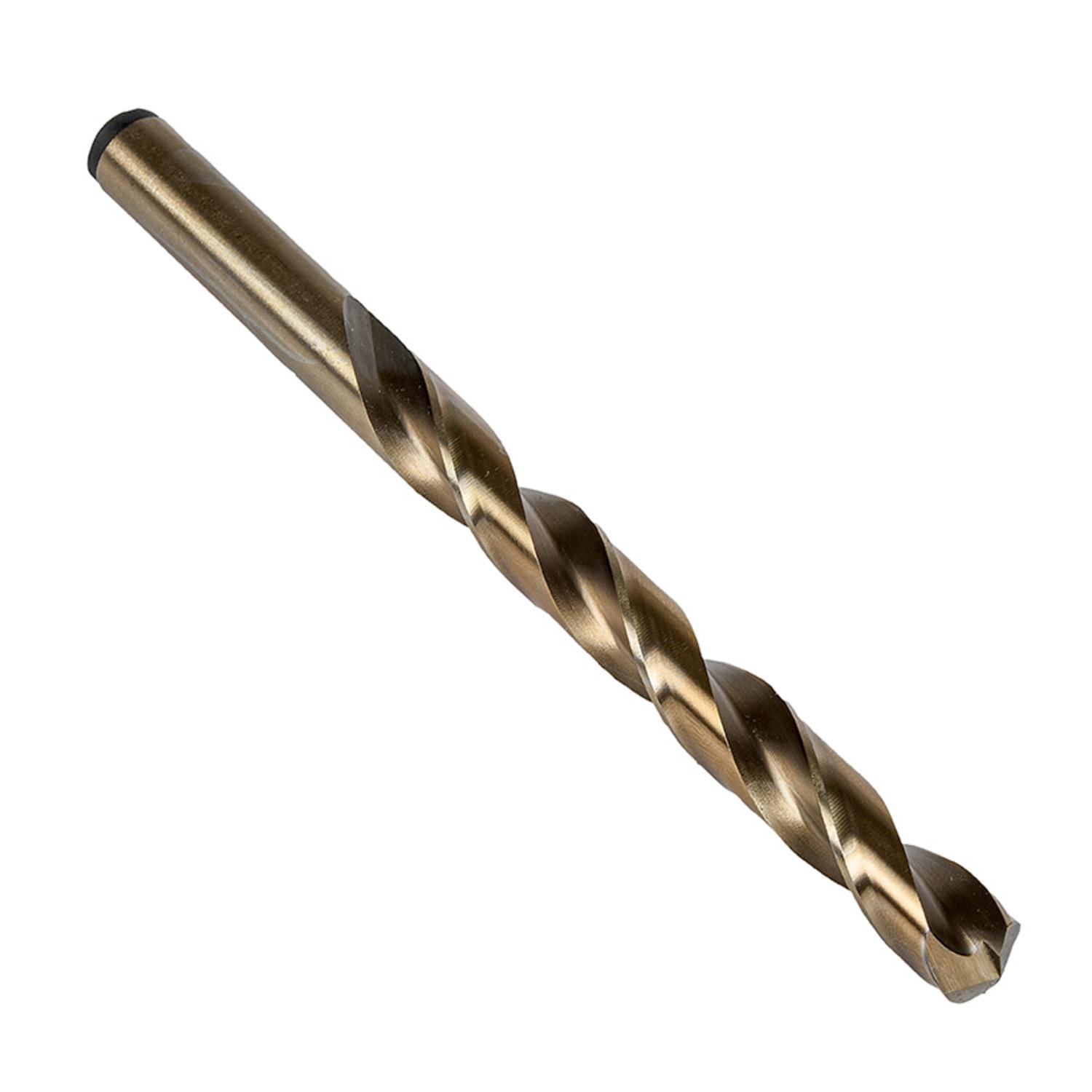

Jobber length drill with straight shank, diameter 0.1820″ (N14) with an overall length of 3.3/8″ and flute length of 2.3/16″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0080 kg
Dimensions
barcode	086071183149
Additional Information	Description: Value EAN number: 086071183149 Product number (SAP): 86032599 Ordering code ANSI: R18CON14 Gross weight – grams: 8 Length chip flute – inch (LCF): 2.1875 inch Cutting diameter – millimeter (DC): 4.62 mm Length chip flute – fractional inch (LCF): 2.3/16 Overall length – fractional inch (OAL): 3.3/8 Overall length – millimeter (OAL): 85.73 mm ISO: R18CON14 Cutting diameter (wire gauge size) (DC): N14
