PTD R18CON64 Cobalt Drills

Description

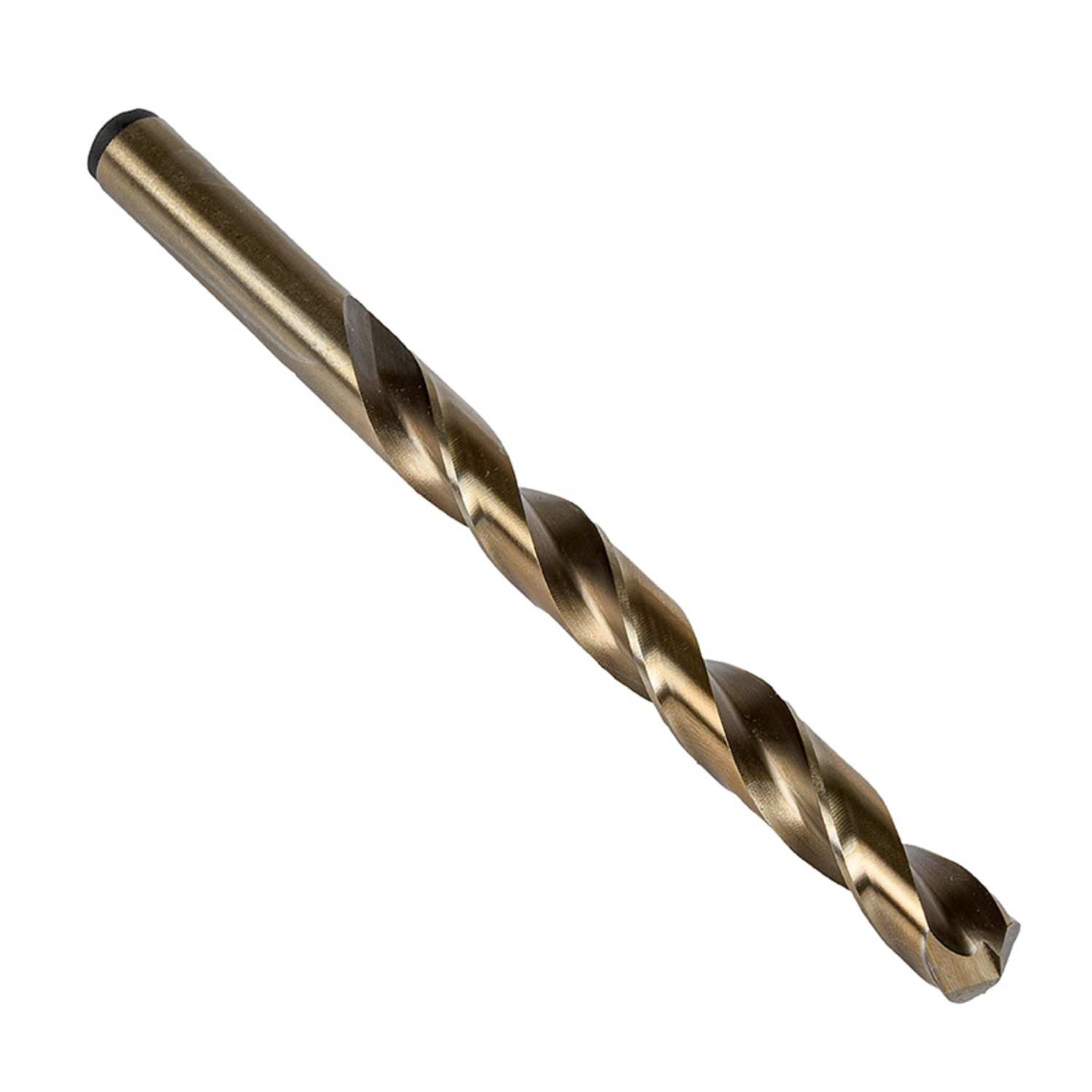

Jobber length drill with straight shank, diameter 0.0360″ (N64) with an overall length of 1.1/2″ and flute length of 5/8″ according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0002 kg
Dimensions
barcode	086071183644
Additional Information	Description: Value EAN number: 086071183644 Product number (SAP): 86032654 Ordering code ANSI: R18CON64 Gross weight – grams: 0.16 Length chip flute – inch (LCF): 0.625 inch Cutting diameter – millimeter (DC): 0.91 mm Length chip flute – fractional inch (LCF): 5/8 Overall length – fractional inch (OAL): 1.1/2 Overall length – millimeter (OAL): 38.1 mm ISO: R18CON64 Cutting diameter (wire gauge size) (DC): N64
