PTD R42CJ HSS Screw Mach Drill

Product Code: R42CJ

$30.48$27.71 Ex. GST

Product Code: R42CJ SKU R42CJ Categories CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

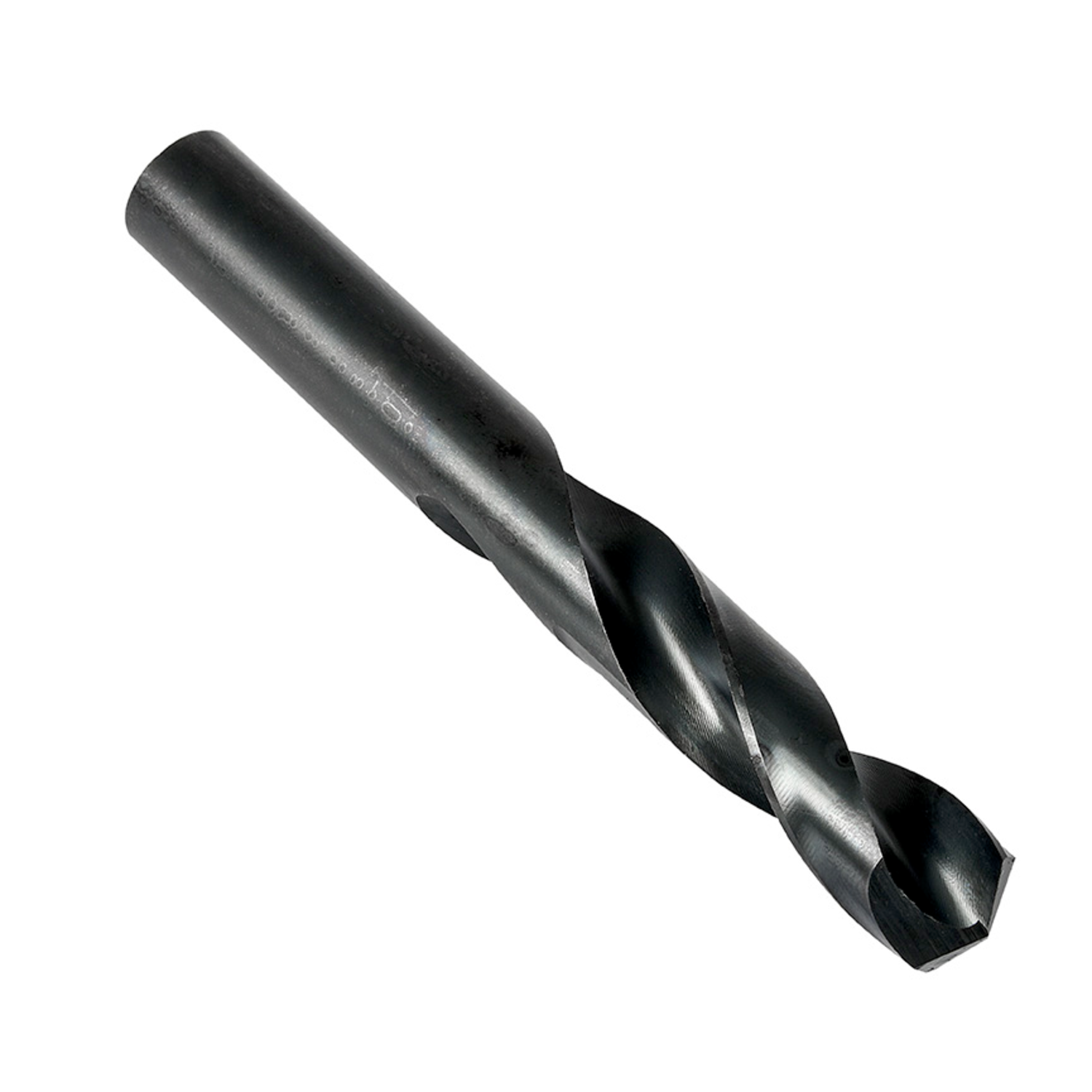

Stub length drill with straight shank, diameter 0.2770″ (J) with an overall length of 2.11/16″ and flute length of 1.1/2″ according to NAS907 Type C standard with 135° heavy duty split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight	0.0160 kg
Dimensions
barcode	086071428103
Additional Information	Description: Value EAN number: 086071428103 Product number (SAP): 86032771 Ordering code ANSI: R42CJ Gross weight: 16 g Length chip flute (LCF): 1.5 inch Cutting diameter (DC): 7.04 mm Length chip flute (LCF): 1.1/2 Overall length (OAL): 2.11/16 inch Overall length (OAL): 68.26 mm ISO: R42CJ Cutting diameter (DC): J
