PTD R42CU HSS Screw Mach Drill

Product Code: R42CU

$53.70$48.82 Ex. GST

Product Code: R42CU SKU R42CU Categories ,
PTD R42CU HSS Screw Mach Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

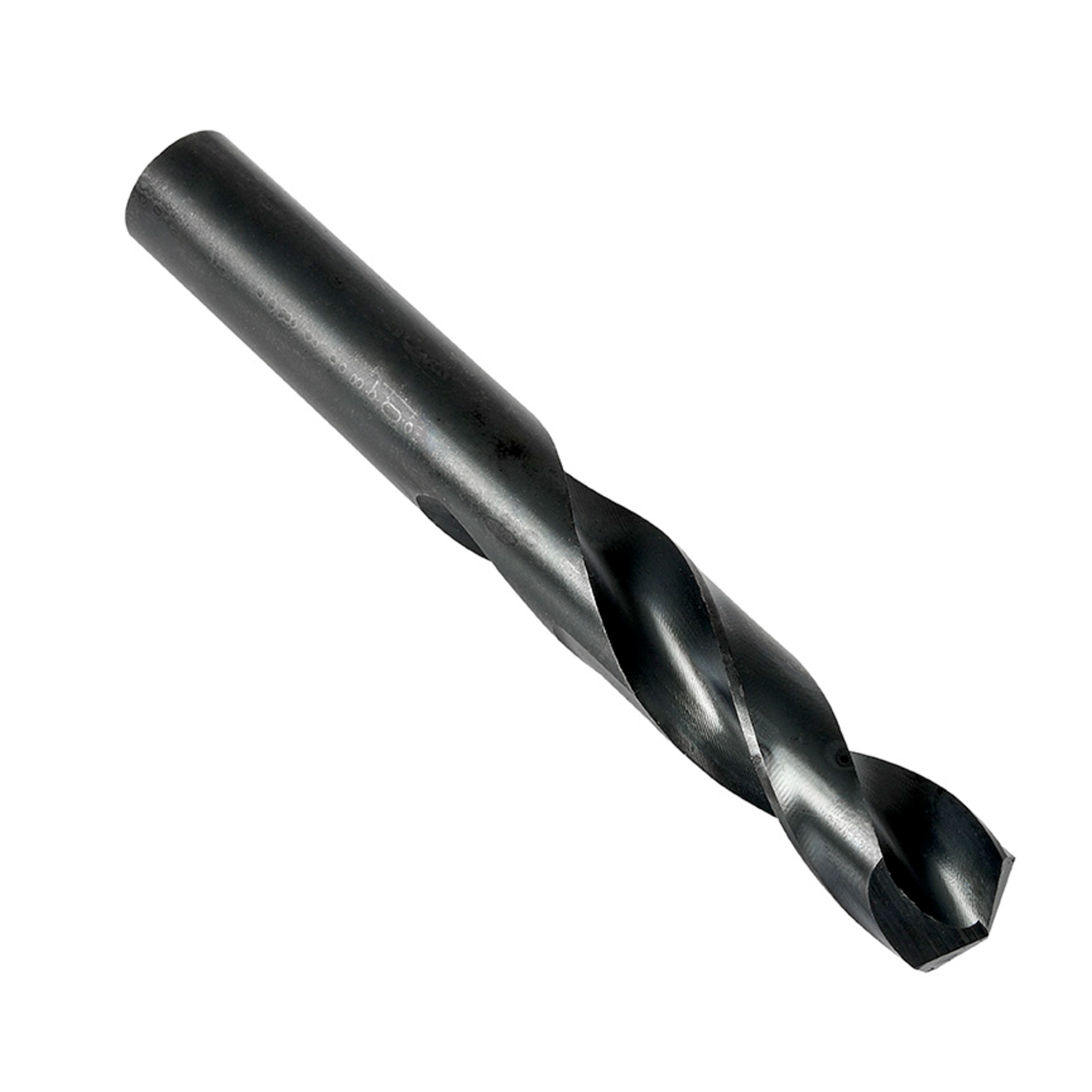

Stub length drill with straight shank, diameter 0.3680″ (U) with an overall length of 3.1/8″ and flute length of 1.13/16″ according to NAS907 Type C standard with 135° heavy duty split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0330 kg
Dimensions
barcode

086071428219
Additional Information

Description: Value
EAN number: 086071428219
Product number (SAP): 86032782
Ordering code ANSI: R42CU
Gross weight – grams: 33
Length chip flute – inch (LCF): 1.8125 inch
Cutting diameter – millimeter (DC): 9.35 mm
Length chip flute – fractional inch (LCF): 1.13/16
Overall length – fractional inch (OAL): 3.1/8
Overall length – millimeter (OAL): 79.38 mm
ISO: R42CU
Cutting diameter – imperial letter (DC): U
