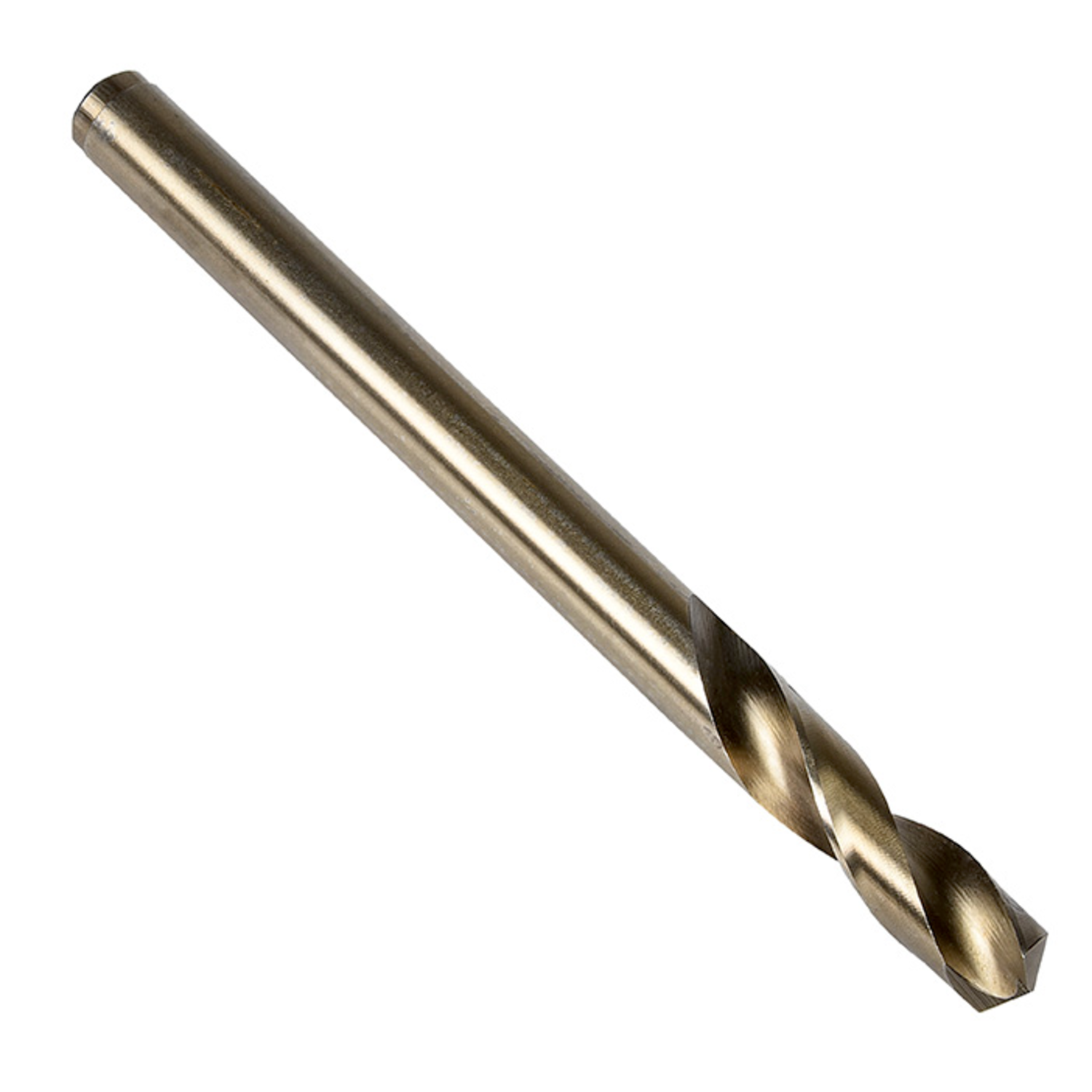

PTD R88CO29/64 Cobalt Drills

Description

Jobber length drill with straight shank, diameter 0.4531″ (29/64) with an overall length of 5.5/8″ and flute length of 2.1/8″ according to NAS907 Type D standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 3xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Additional information

Weight	0.0980 kg
Dimensions
barcode	086071587299
Additional Information	Description: Value EAN number: 086071587299 Product number (SAP): 86032805 Ordering code ANSI: R88CO29/64 Gross weight – grams: 98 Length chip flute – inch (LCF): 2.125 inch Cutting diameter – fractional inch (DC): 29/64 Cutting diameter – millimeter (DC): 11.51 mm Length chip flute – fractional inch (LCF): 2.1/8 Overall length – fractional inch (OAL): 5.5/8 Overall length – millimeter (OAL): 142.88 mm ISO: R88CO29/64
