$2,464.00$2,240.00 Ex. GST

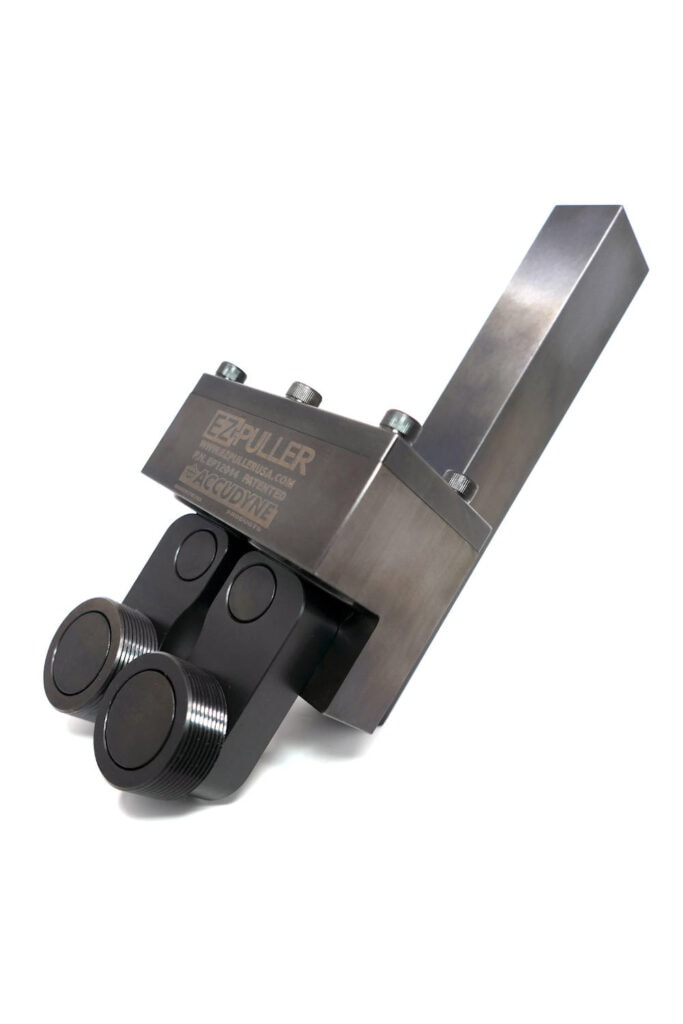

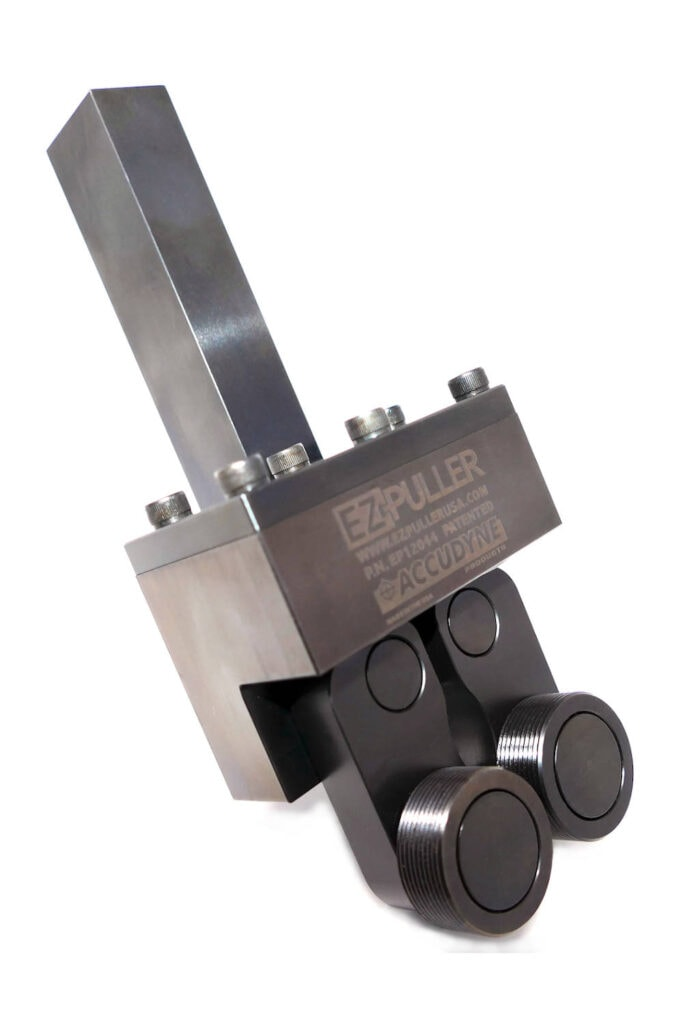

NOTE; Illustration is square bar, this model (EP-12044-08) is actually fitted with a
25mm round shank.
Is also avail in a 20mm round shank on applicationto our office.

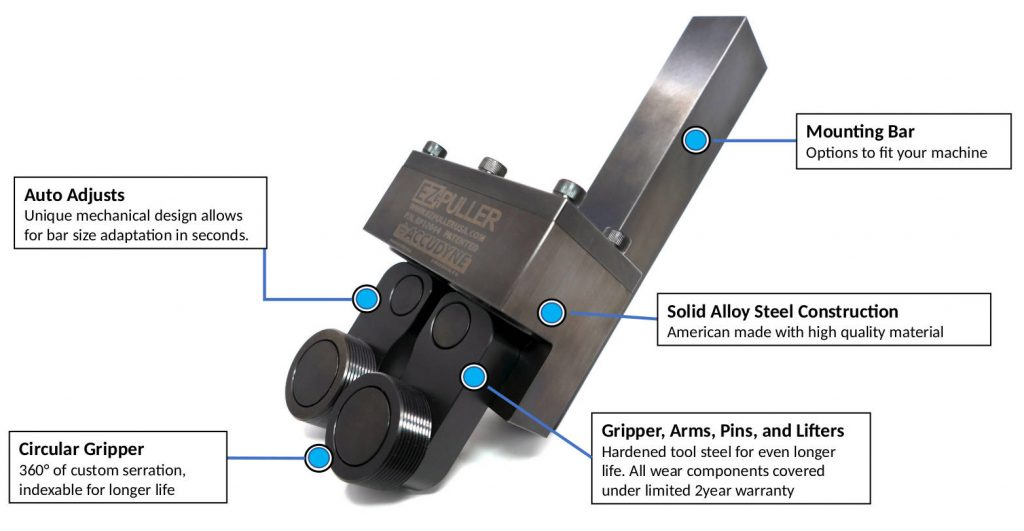

ROUND SHANK – CNC LATHE BAR PULLER for pulling stock into position, from the turret, no manual laoding or handling required.
It has a range of 0.093″ – 1.75″ for round stock (44.40mm)
0.125″ – 1.375″ for hex stock,
and 0.125″ – 1.000″ for square stock.
EP-12044-08 has a 25mm round low-profile mounting bar.
Made in USA
Benefits:
Reliably repeatable over hundred of THOUSANDS of pulls
No gripping fingers to adjust, break or lose
No coolant required to operate
Reduces material wasted per part
Saves operator time
One-time easy set-up, easy to use
No adjustments needed mechanically
Innovative design is versatile, dependable and easy to use
Set the x-axis end point in the program
Bar size can be changed in Seconds
Supports Round, Hex and Square bar stock
Advanced low-mar gripper innovation maximizes grip
Designed and built durably to last
| Weight | 2.3000 kg |
|---|---|
| Dimensions | Length 15cm x Width 15cm x Depth 15cm |
| barcode | |
| Additional Information | Benefits: Reliably repeatable over hundred of THOUSANDS of pulls |
