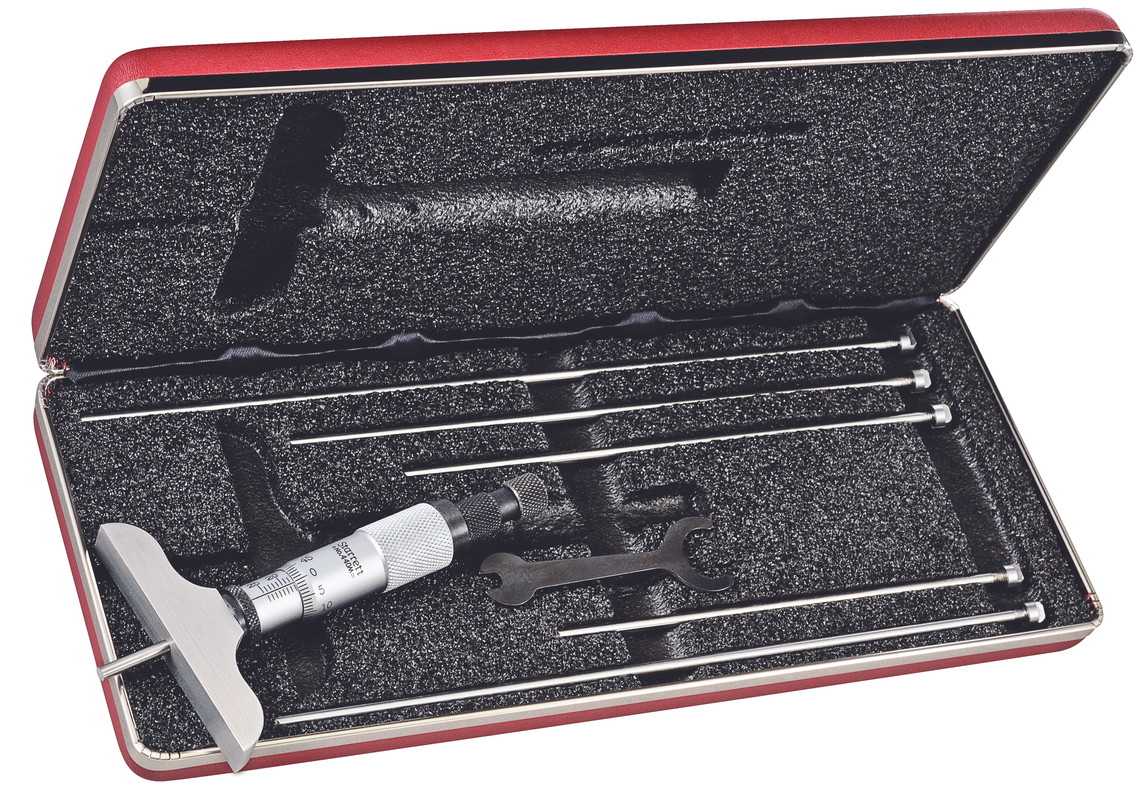

Starrett – Depth Gage 0-150mm Range 63.5mm Base 6 Rods Case

Description

Micrometer Depth Gage, Ratchet Thimble, 0-150mm Range, 0.01mm

Features:
The depths of holes, slots, shoulders and projections can be measured with these fine tools
63.5mm (2-1/2″) base and 3.2mm (1/8″) diameter measuring rods
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking

Specifications:
Country of Origin :United States
Case Type:Padded Case
Depth Micrometer Type:Mechanical
Base Length (mm):63.5mm
Max. Range (mm):150
Min. Range (mm):0
Graduations (mm):0.01mm
Lock Nut Type:Ring Type Knurled
Measuring Rods (qty):6
Micrometer Type:Depth
Range (mm):0-150mm
Rod Diameter (mm):3.2mm
Accuracy (mm):Mic head ‘+/-.0025mm; Rods ‘+/-.005mm
Thimble Type:Ratchet

Compliance:
Cal Prop 65 Chemical:Lead
Cal Prop 65 Warning:Yes
Cal Prop 65 Statement:WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
SDS Indicator:No

Packaging:
Unit Pack Height (in):1.4
Unit Pack Height (mm):35.56
Unit Pack Item Qty:1
Unit Pack Length (in):10.4
Unit Pack Length (mm):261.62
Unit Pack Weight (kg):0.7257472
Unit Pack Weight (lbs):1.45
Unit Pack Width (in):4.5
Unit Pack Width (mm):109.22
