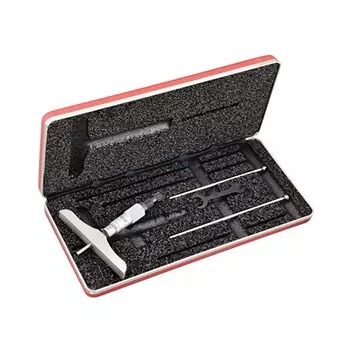

Starrett Depth Gage 0-75mm Range 100mm Base 3 Rods Case 445MBZ-75RL Depth Micrometer

Description

Micrometer Depth Gage, Ratchet Thimble, 0-75mm Range, 0.01mm
445MBZ-75RL Starrett Depth Micrometer with Ratchet/Speeder Combo: 0-75mm

The Starrett 445MBZ-75RL Depth Micrometer has the following specifications:

Range: 0-75mm
Graduation: .01mm
Micrometer Head Accuracy: +/- .0025mm
Rod Accuracy: +/- .005mm
Base Length: 100mm
Number of Rods: 3
Rod Diameter: 4mm
Lock Nut Type: Ring Type Knurled
Thimble Type: Ratchet
EDP: 52221

Features:
Made in USA
The depths of holes, slots, shoulders and projections can be measured with these fine tools
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking
Satin chrome reading surface is glare free and resists rust
