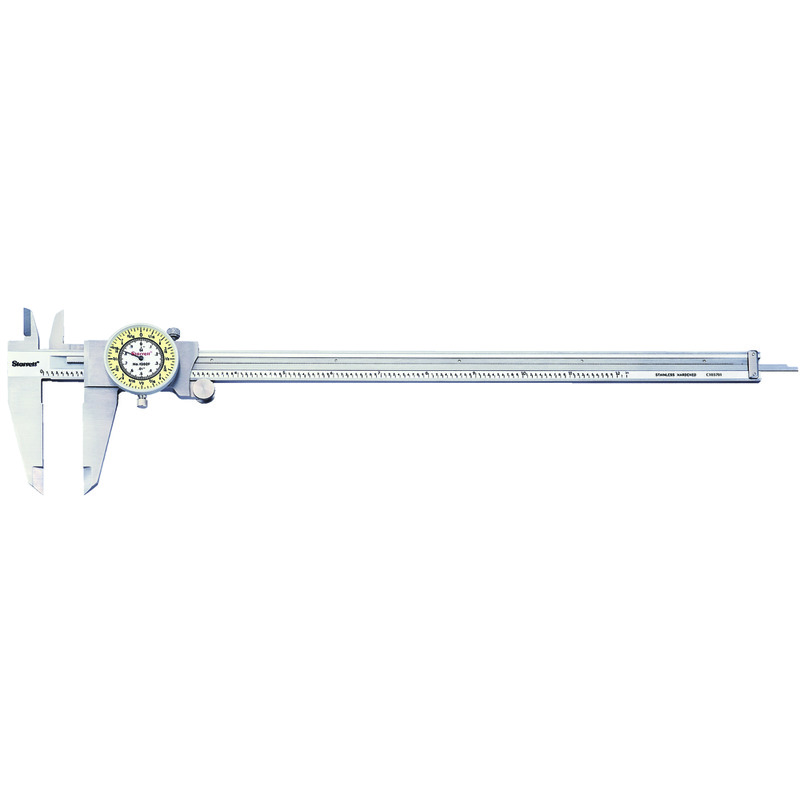

Starrett DIAL CALIPER- 0-12 1202F-12 Dial Caliper

Description

12″, Grad. In Fractions, in Fitted Case

The Starrett 1202F Series Fractional Dial Calipers show measurements as fractions on the yellow outer scale with 1/64th inch graduation, and decimal measurements on the white inner scale with 1/100th inch graduations. This series provides quick, accurate measurement of outside dimensions, inside dimensions, and depth. This series features 0-12″ fractional range. 12”, Grad. In Fractions, in Fitted Case

Features:
Provides quick, accurate measurement of O.D., I.D. and depth
1/64″ graduations on the yellow outer scale, and .01″ on the white inner scale
Shows measurements as fractions
Lock screws for sliding jaw and dial bezel
Adjustable bezel
Thumb-operated fine adjustment roll
Covered rack depth rod
Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
Knife-edge contacts
Positive, spring-loaded double pinion anti-backlash control
Positive, spring-loaded double pinion anti-backlash control
1/64″ graduations on the yellow outer scale, and .01″ on the white inner scale

Specifications:
Range (in): 0-12″
Graduations (in): .010″
Revolution Range (in): 1″
Bar Graduations: .100″
Construction Material: Stainless Steel
Dial Color: White
Inside Jaw Depth (in): 3/4″
Inside Jaw Depth (mm): 19mm
Outside Jaw Depth (in): 2-1/2″
Outside Jaw Depth (mm): 63mm
Case Type: Plastic
Accuracy (in): 0-6″ (+/-.001″) 6-12″ (+/-.0015″)
