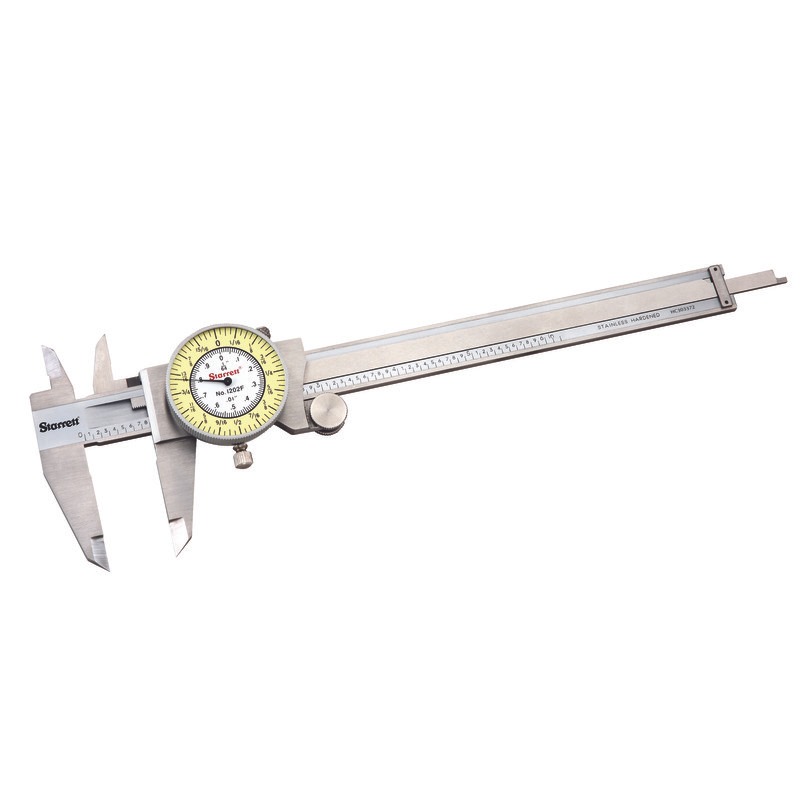

Starrett Dial Caliper 6in Fractional Reading 1202F-6 Dial Caliper

Description

Fractional Dial Slide Caliper, Stainless Steel, 0-6″ Range, .010″, 1/64″ Graduations

Features:
Provides quick, accurate measurement of O.D., I.D. and depth

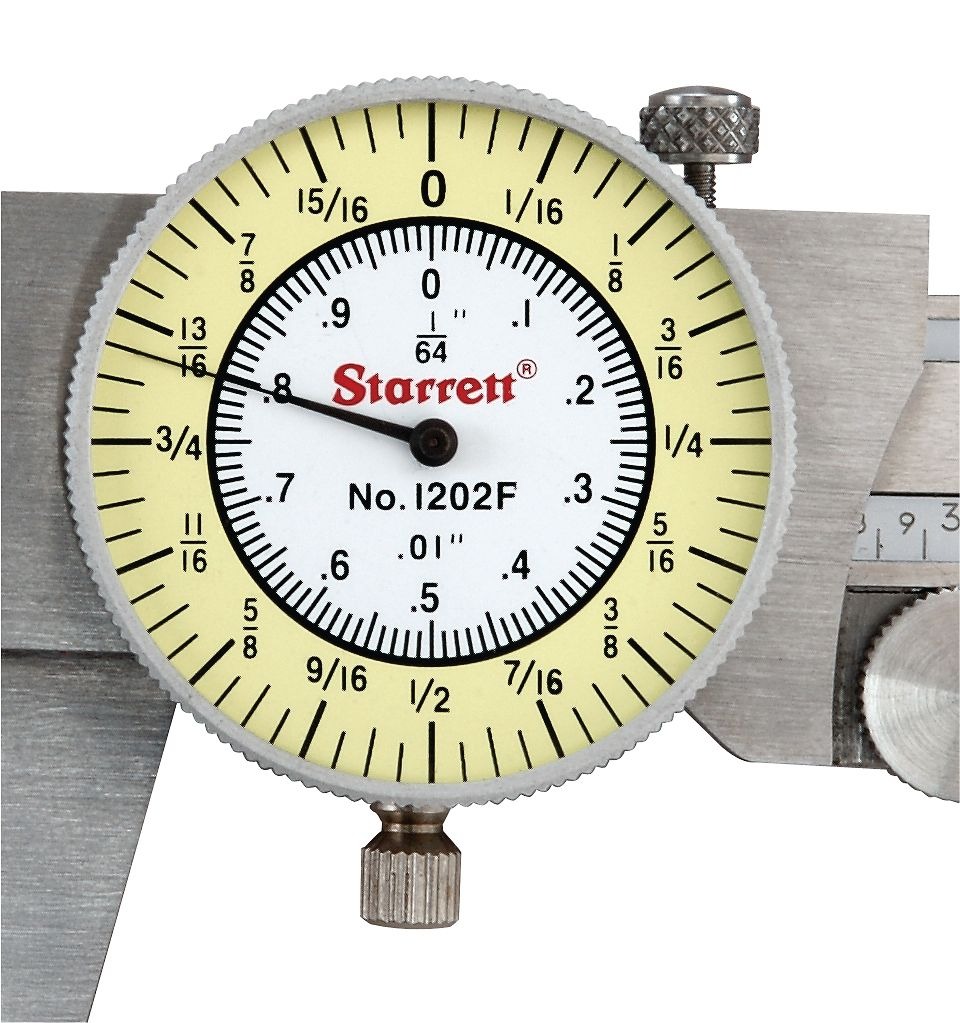

1/64″ graduations on the yellow outer scale, and .01″ on the white inner scale
Shows measurements as fractions
Lock screws for sliding jaw and dial bezel
Adjustable bezel
Thumb-operated fine adjustment roll
Covered rack depth rod
Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
Knife-edge contacts
Positive, spring-loaded double pinion anti-backlash control
Positive, spring-loaded double pinion anti-backlash control
1/64″ graduations on the yellow outer scale, and .01″ on the white inner scale

Specifications:
Country of Origin :China

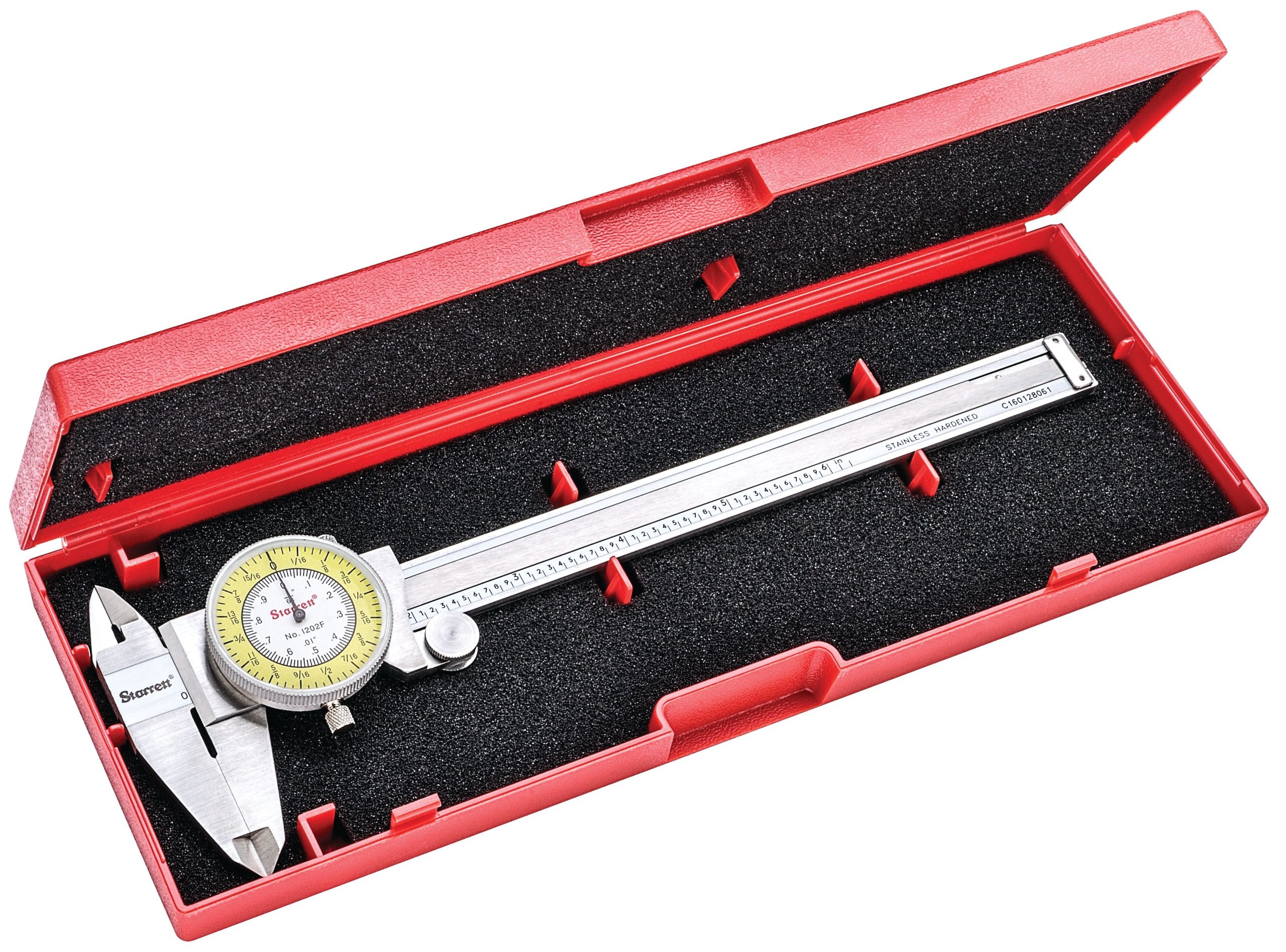

Case Type:Plastic
Construction Material:Stainless Steel
Dial Color:White
Bar Graduations:.100″
Max. Range (in):6
Min. Range (in):0
SLC Certification:Optional Add-On
Graduations (in):.010″
Inside Jaw Depth (in):5/8″
Inside Jaw Depth (mm):16mm
Outside Jaw Depth (in):1-1/2″
Outside Jaw Depth (mm):38mm
Range (in):0-6″
Revolution Range (in):1″
Accuracy (in):+/-.002″

Compliance:
Cal Prop 65 Warning:No

Packaging:
Unit Pack Height (in):1.3
Unit Pack Height (mm):33.02
Unit Pack Item Qty:1
Unit Pack Length (in):10
Unit Pack Length (mm):259.08
Unit Pack Weight (kg):0.453592
Unit Pack Weight (lbs):0.95
Unit Pack Width (in):3.8
Unit Pack Width (mm):96.52
