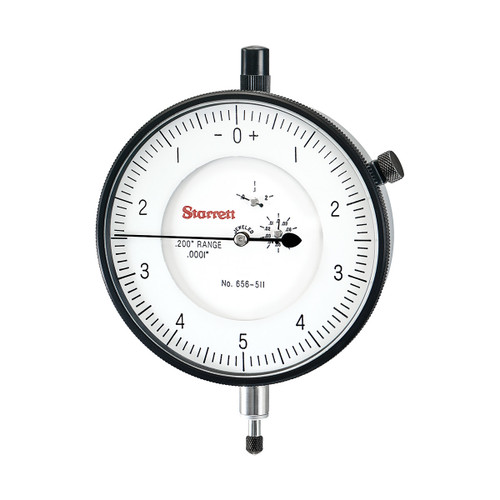

Starrett Dial Ind. Jewelled 3 5/8in .200in Range .0001in Grad 656-511J Dial Indicator

Description

Dial Indicator, 0-.200″ Range, 0-5-0 Balanced Dial, .0001″ Grads, .010″ Range Per Rev, .375″ Stem
Starrett 656 Dial Indicators have a shockless, hardened steel gear train and jewel bearings. Features include a lug-on-center back. Balanced and tapered hands are easy to follow. This model features a .200″ Measuring Range. If lift lever is desired, indicator must be ordered with case stem cap. .200″ Range, Dial Reading 0-5-0, 0001″ Grad.
Features:
Rugged and simple unit construction with a universally fitting design
Sharp bezel serrations for positive grip
Unbreakable crystal
Hardened stainless steel stem
No-glare satin finish on case
Hardened stainless steel rack and spindle
Massive bridge for rigid bearing support
Hardened stainless steel gears and pinions
Non-reflecting white eggshell finish on dial
Jewel Bearings
Lug On Center Back Installed, Flat Back Included
Revolution counter on dial
Download 2-Dimensional drawing here

Specifications:
Made in America: Yes
Graduations (in): .0001″
Total Range (in): .200″
Range One Rev. (in): .010″
Dial Reading: 0-5-0
Dial Color: White
Stem Diameter (in): .375″
