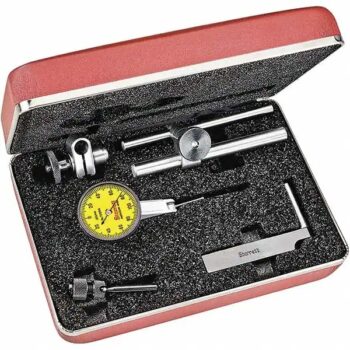

Starrett – Dial Indicator 0.002mm Grad 0.2mm Range Attachments

Description

The Starrett 708MACZ Dial Test Indicator with Dovetail Mounts has the following specifications:

Range: 0.2mm
Graduations: .002mm
Dial Reading: 0-100-0
Contact Point Ball Diameter: .078″/2mm
Contact Point Length: 5/8″(16mm)
Dial Face Color: Yellow
Attachments Included: Yes
Standard Letter of Certification: No
EDP: 65865
These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts.

Features:

Made in the USA
These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
Three dovetail positioning mounts work with existing test indicator accessories
Precision gear-driven design with smooth, jeweled movement
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Revolution count hand for easy reading
Meet or exceed ISO accuracy specification
Inch reading indicators are available with easy-to-read, shaded white, red, or black dials – millimeter reading indicators with yellow dials
Angled head for better reading position
Narrow body for in reach ability
Satin chrome finish for durability
Large 1-3/8″ (35mm) dial diameter
Include long carbide contacts 13/16″ (20mm)
