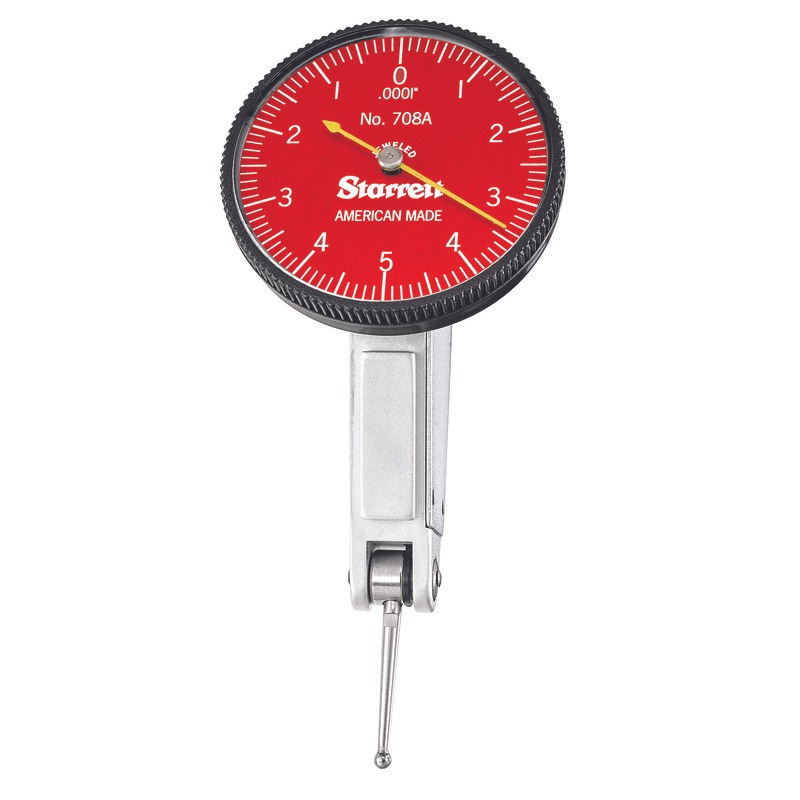

Starrett DIAL INDICATOR .0001 .010 R708AZ Dial Test Indicator with Dovetail Mount

Description

Dial Test Indicator with Dovetail, .010″ Range, 0-5-0 Dial Face, .0001″ Graduations

Features:
These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
Three dovetail positioning mounts work with existing test indicator accessories
Precision gear-driven design with smooth, jeweled movement
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Revolution count hand for easy reading
Meet or exceed ISO accuracy specification
Inch reading indicators are available with easy-to-read, shaded white, red, or black dials – millimeter reading indicators with yellow dials
Angled head for better reading positionNarrow body for inreach ability
Satin chrome finish for durability
Large 1-3/8″ (35mm) dial diameter
Include long carbide contacts 13/16″ (20mm)

Specifications:
Country of Origin :United States
Contact Ball Material:Carbide
Contact Point Ball Diameter (in):.078″ (2mm)
Contact Point Ball Diameter (mm):2mm (.078″)
Contact Point Length (in):13/16″
Contact Point Length (mm):20mm
Dial Color:Red
Dial Reading:0-5-0Attachments:Without Attachments
Max. Range (in):0.01
Min. Range (in):0
Graduations (in):.0001″
Range (in):.010″

Compliance:
Cal Prop 65 Chemical:Lead
Cal Prop 65 Warning:Yes
Cal Prop 65 Statement:WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
SDS Indicator:No

Packaging:
Unit Pack Height (in):1.3
Unit Pack Height (mm):58.42
Unit Pack Item Qty:1
Unit Pack Length (in):5.1
Unit Pack Length (mm):193.04
Unit Pack Weight (kg):0.5443104
Unit Pack Weight (lbs):0.25
Unit Pack Width (in):3
Unit Pack Width (mm):134.62
