Starrett – Dial Indicator .0005in Grad .030in 0-15-0 Case

Description

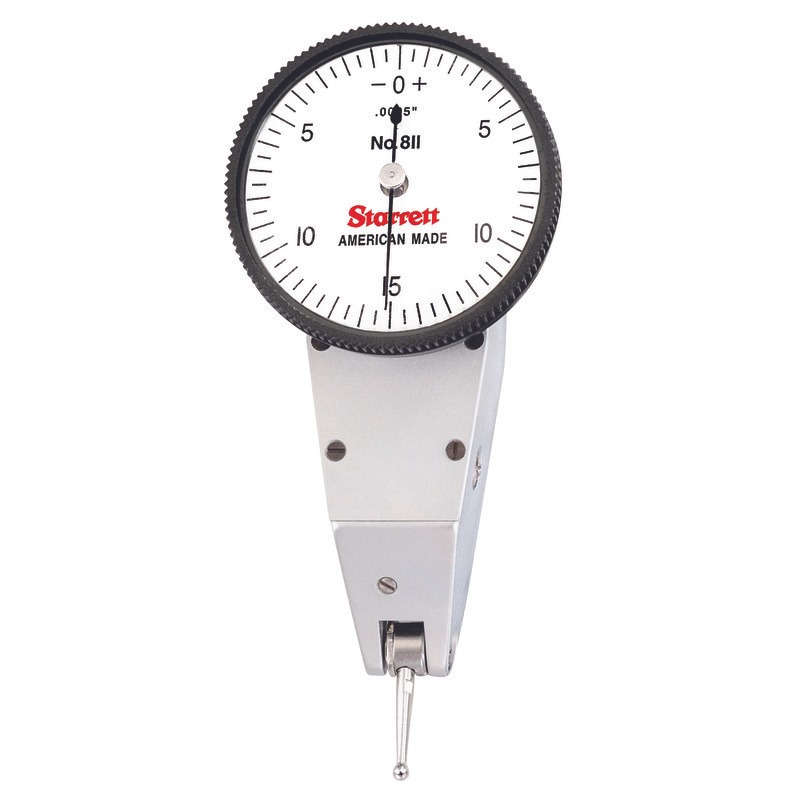

Dial Test Indicator with Swivel Head, .030″ Range, 0-15-0 Dial Face, .0005″ Graduations

Features:
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Contacts also available individually in steel, carbide and different sizes
Some of the most versatile and unique indicators available
Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 Deg

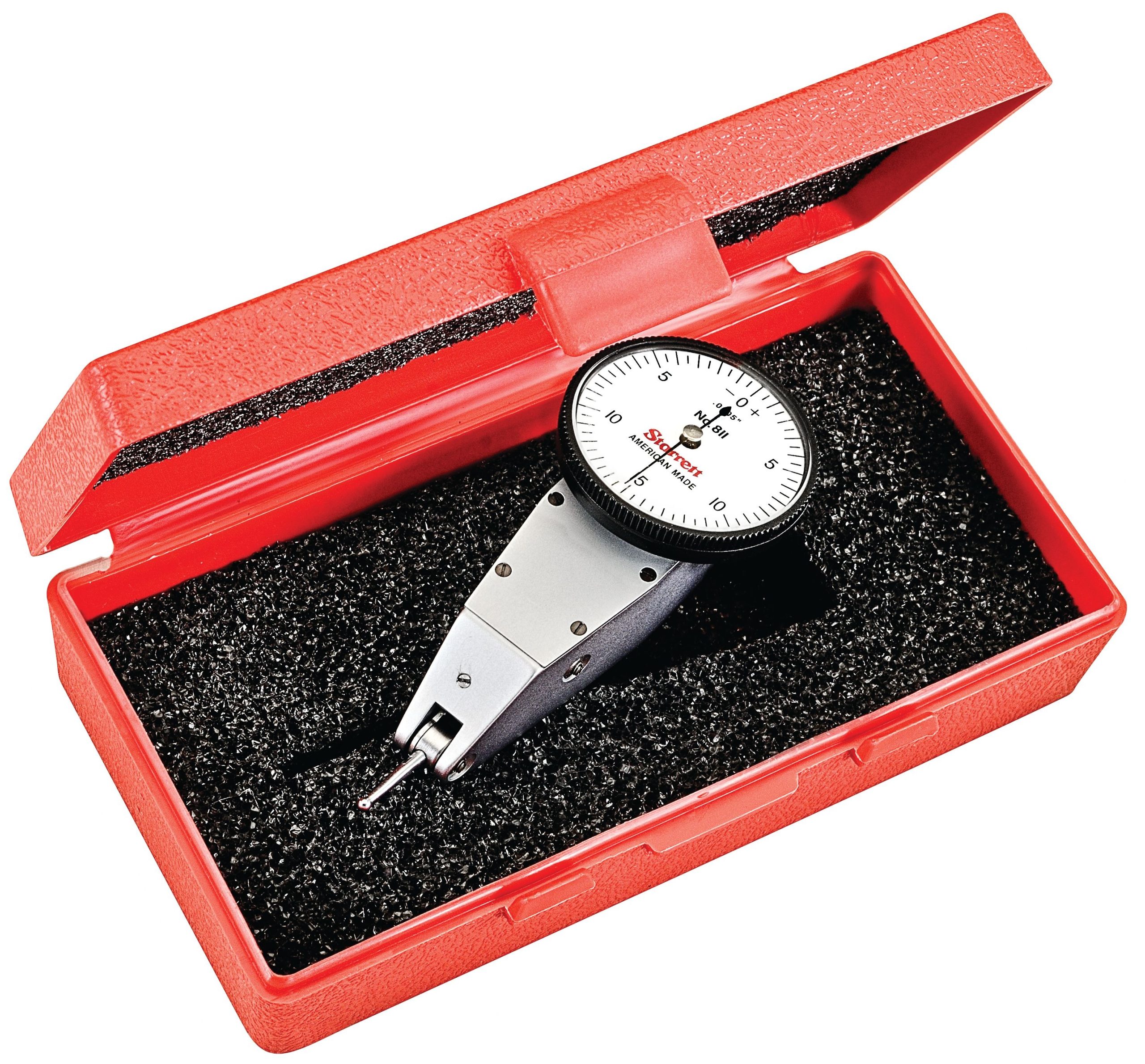

In Case
Inch reading indicators are available with white, red, or black dials – metric indicators with yellow dials
Smooth, jeweled movement
Large, 1-3/8″ (35mm) dial diameter for increased readability
Two positioning mounts work with dovetail test indicator accessories

Specifications:
Country of Origin :United States
Range (in):.030″
Contact Point Ball Diameter (in):.078″ (2mm)
Contact Point Length (in):5/8″
Contact Point Length (mm):16mm
Dial Color:White
Dial Reading:0-15-0
Attachments:Without Attachments
Max. Range (in):0.03
Min. Range (in):0
Contact Point Ball Diameter (mm):2mm (.078″)
Contact Ball Material:Steel
Graduations (in):.0005″

Compliance:
SDS Indicator:No
Cal Prop 65 Chemical:Lead
Cal Prop 65 Warning:Yes
Cal Prop 65 Statement:WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

Packaging:
Unit Pack Height (in):1.5
Unit Pack Height (mm):58.42
Unit Pack Item Qty:1
Unit Pack Length (in):5.1
Unit Pack Length (mm):193.04
Unit Pack Weight (kg):0.4989512
Unit Pack Weight (lbs):0.25
Unit Pack Width (in):3.1
Unit Pack Width (mm):134.62
