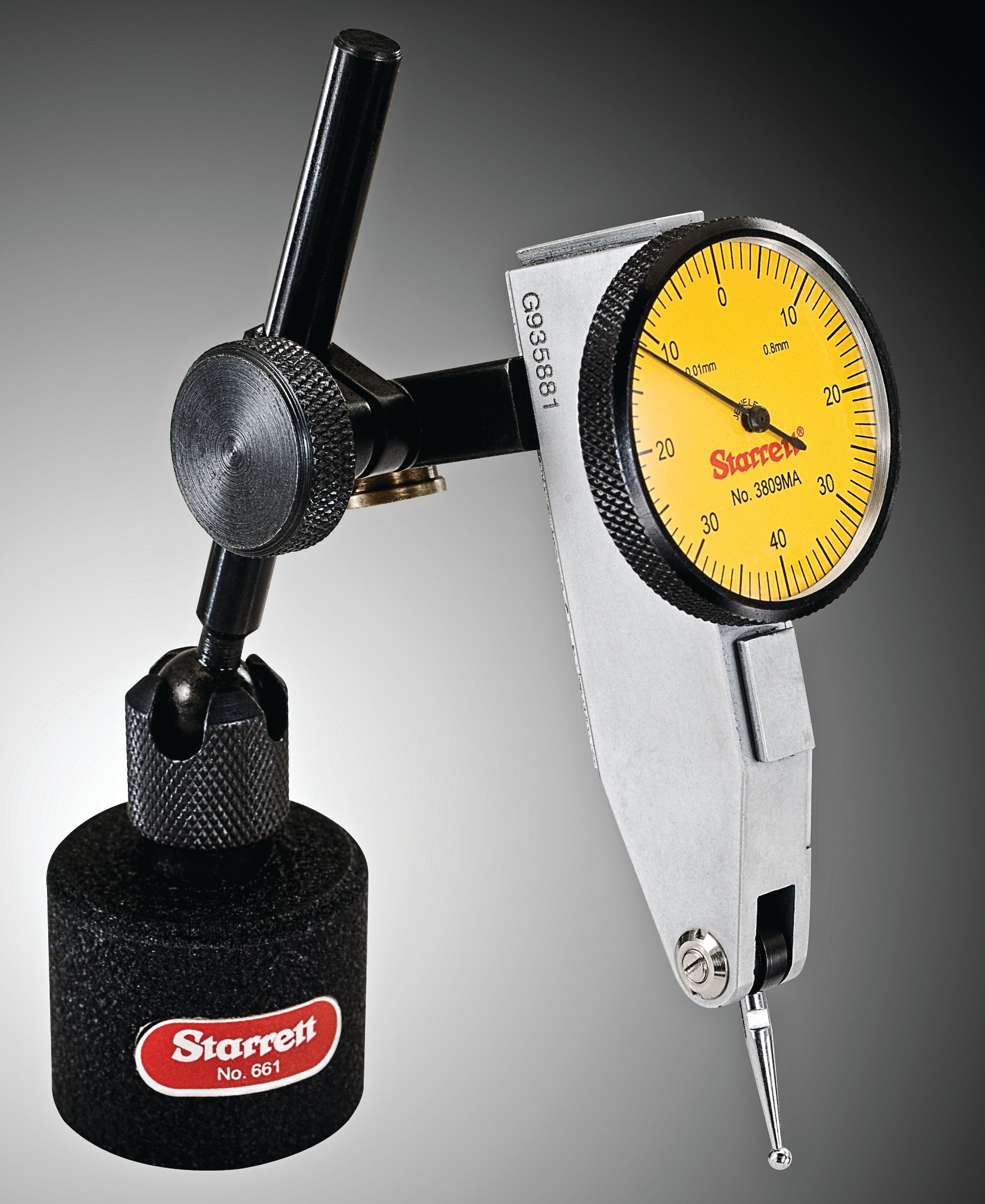

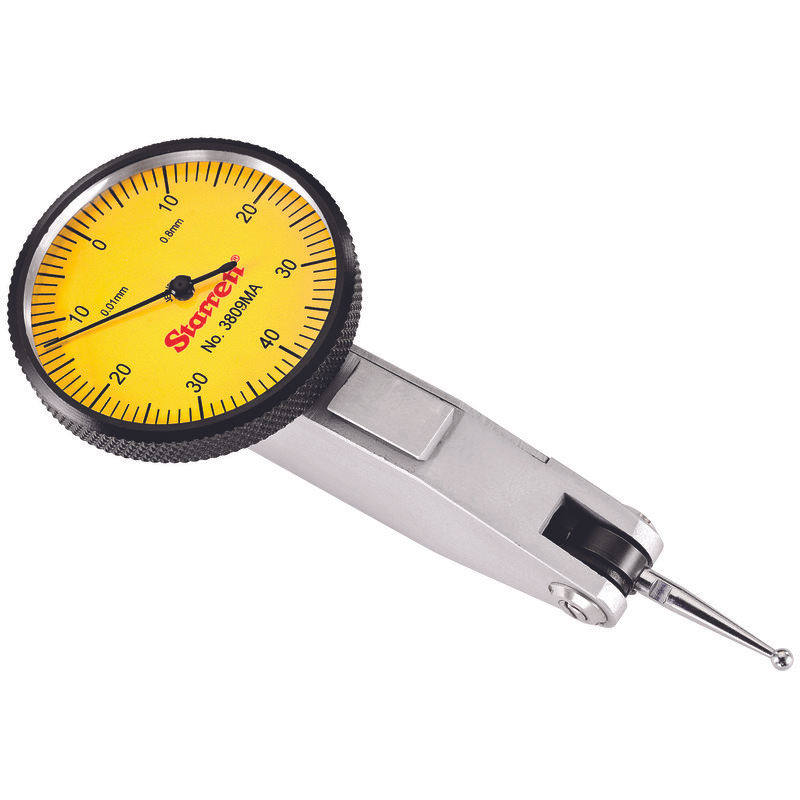

Starrett – Dial Test Indicator 0.8mm Range 0.01mm Grad

Description

Dial Test Indicator with Dovetail, 0.8mm Range, 0-40-0 1-1/4″ Dial Face, 0.01mm Graduations, Two Dovetail Clamps, Case

Features:
Three dovetail positioning mounts work with most existing test indicator accessories
Precision gear-driven design with smooth, jeweled movement
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Meets or exceeds ANSI/ASME accuracy specifications
High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
Narrow body for in reach ability
Satin chrome finish for durability

Specifications:
Country of Origin :China
Range (mm):0.8mm
Dial Color:Yellow
Dial Reading:0-40-0

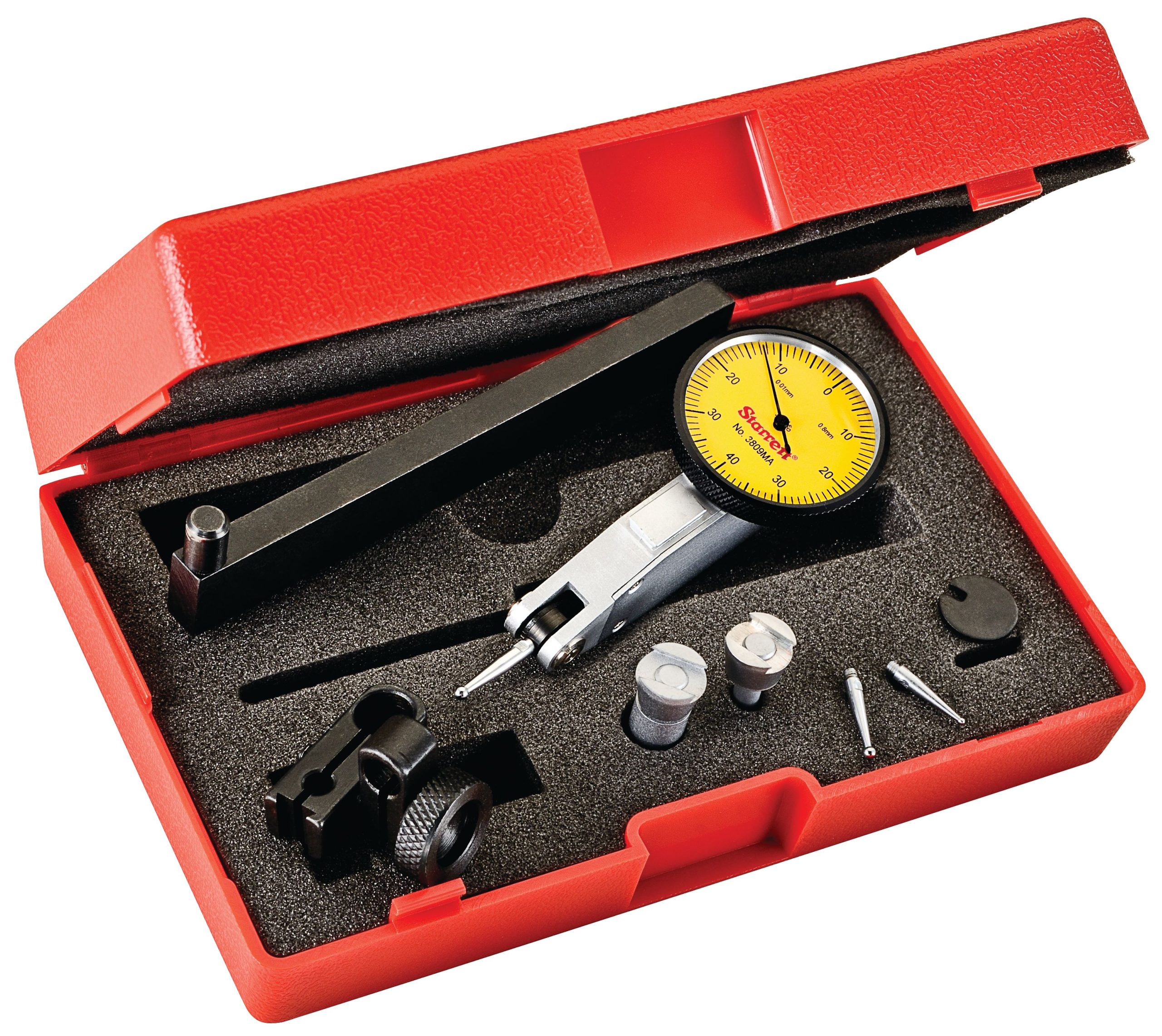

Attachments:4mm contact point, 9.5mm & 4mm dovetail clamps & case
Max. Range (mm):0.8
Min. Range (mm):0
Contact Ball Material:Steel
Contact Point Ball Diameter (in):.078″ (2mm)
Contact Point Ball Diameter (mm):2mm (.078″)
Contact Point Length (in):5/32″
Contact Point Length (mm):4mm
Graduations (mm):0.002mm

Compliance:
Cal Prop 65 Warning:No

Packaging:
Unit Pack Height (in):1.75
Unit Pack Item Qty:1
Unit Pack Length (in):6
Unit Pack Weight (lbs):0.5
Unit Pack Width (in):4
