$1,048.03$952.75 Ex. GST

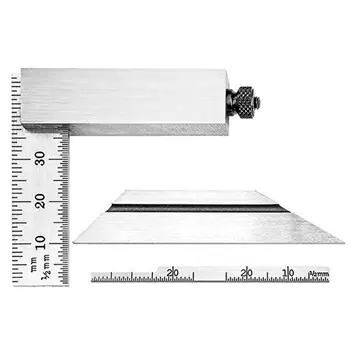

14MD Starrett Double Steel Square with Graduated Narrow Blade and Bevel Blade: 50mm
The Starrett 14MD Double Steel Square has the following specifications:
Blade Length: 50mm
Graduations: mm and 1/2mm
Material: Steel
Hardened and Ground Head and Blades
Graduated Blade Only
Designed for tool and die makers, these fine precision double steel squares have adjustable blades, ideal for tight fits. A knurled clamping nut accurately locks the blades in any position.
Beveled blade is 45� on one end and 30� on the other.
2-1/4″ (58mm) Narrow blade has 32nds and 64ths graduations. It is 5/32″ (4mm) wide over a length of approximately 1-5/8″ (41mm) and cut away at one end to a width of 3/32″ (2 4mm).
Starrett Series 14 & 14M Double Steel Squares:
14A Double Steel Square with Graduated Blade Only: 2.5″
14D Double Steel Square with Graduated Narrow Blade and Bevel Blade: 2.5″
14MA Double Steel Square with Graduated Blade Only: 50mm
14MD Double Steel Square with Graduated Narrow Blade and Bevel Blade: 50mm
| Weight | 0.0454 kg |
|---|---|
| Dimensions | Length 7.87cm x Width 7.87cm x Depth 2.29cm |
| barcode | |
| Additional Information |
