$377.45$343.14 Ex. GST

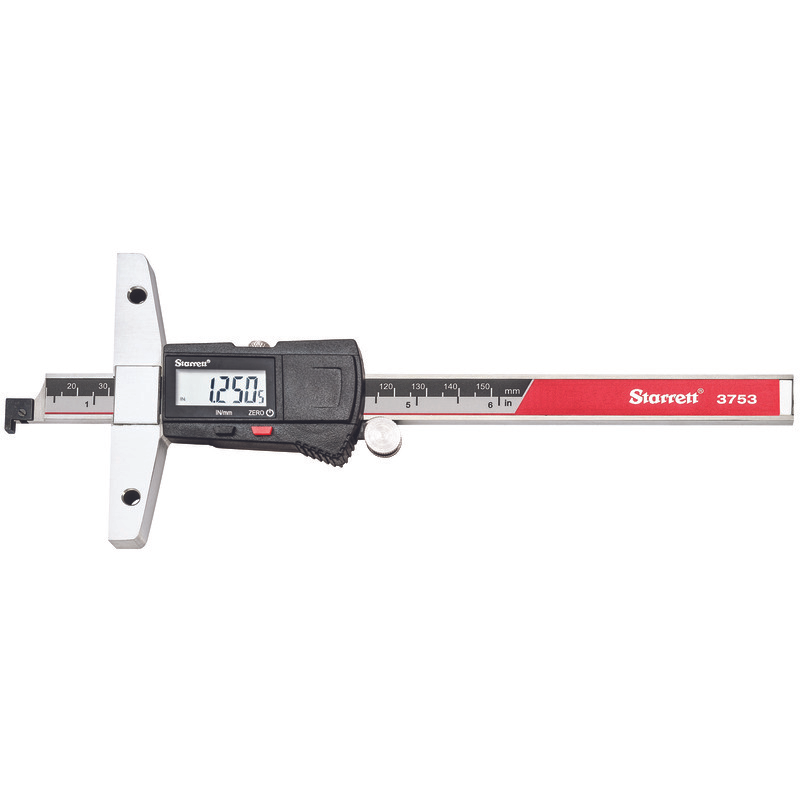

6″ Electronic Depth Gage, .0005″ Resolution, 0-6″ Range
Features:
Clear, easily-read numbers, properly sized for the tool
Hardened stainless steel body and slide for long life
Fine adjustment thumb roll for precision measurements
Lock to hold the slide in position
Hardened base is 3-15/16″ (99mm) long, but optional base extensions of 7″ and 12″ (175 and 300mm) are available.
Spacing between holes is 2-3/4″ (70mm).
Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
The removable hook has the screw permanently attached to prevent loss.
One-year minimum battery life with furnished 3-volt battery, CR2032
Inch/millimeter conversion
Zero at any position
Manual ON/OFF plus a built in automatic OFF after 15 minutes of nonuse
Specifications:
Country of Origin :China
Range (in):0-6″
Range (mm):0-150mm
Resolution (in):.0005″
Resolution (mm):0.01mm
SPC Output:No
Max. Range (in):6
Max. Range (mm):150
Min. Range (in):0
Min. Range (mm):0
Compliance:
Cal Prop 65 Warning:No
Packaging:
Unit Pack Height (in):1.5
Unit Pack Height (mm):38.1
Unit Pack Item Qty:1
Unit Pack Length (in):14
Unit Pack Length (mm):353.06
Unit Pack Weight (kg):0.7711064
Unit Pack Weight (lbs):1.7
Unit Pack Width (in):6.2
Unit Pack Width (mm):154.94
| Weight | 0.7711 kg |
|---|---|
| Dimensions | Length 35.31cm x Width 15.49cm x Depth 3.81cm |
| barcode | |
| Additional Information |
