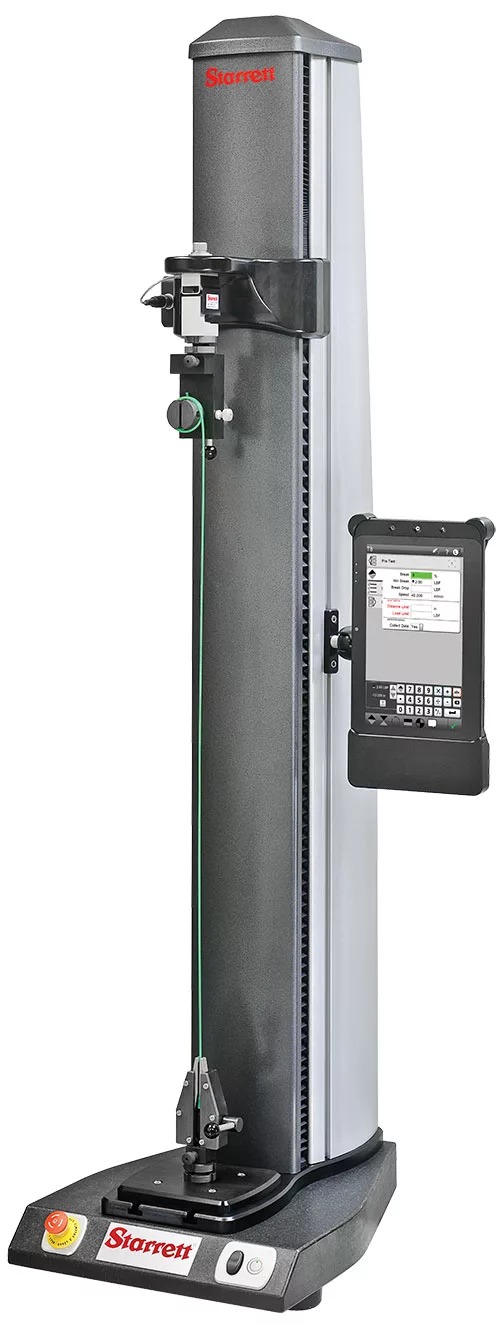

Starrett Force Measurement System FMS-1000-L2 Force Measurement System

Features:
Turnkey 1000 N (225 lbf) Force Measurement System includes Testing Frame, L2 Plus Controller with L2 Plus Force Measurement Software
Easily
Perform Tension, Compression, Flexural, Shear, Peel and COF TestingPerform Basic Force Test Methods Quickly with Easy-to-Use Test Templates
Perform Complex Multi-stage Testing Using Advanced Test Builder ApplicationCompact Footprint (15″W x 20.25″D)
Conforms to All Relevant European Standards and Carries CE Mark

Specifications:
Frame Type: Single Column
User Interface: Tablet PC
Load Capacity: 100 kgf, 1000 N, 225 lbf
Maximum Speed: 1525 mm/min, 60″/min
Minimum Speed: 0.02 mm/min, 0.001″/min
Return Speed: 1525 mm/min, 60″/min
Total Crosshead Travel: 760 mm, 30″
Total Vertical Test Space: 953 mm, 37.5″
Crosshead Throat Depth: 108 mm, 4.25″
Accuracy Seep: ± 0.2%
Accuracy: Load Cell Dependant
Load Cell Sensor Models: Models FLC Series, MLC Series, or ULC Series
USB I/O: I/O Standard
Power: Single Phase Voltage (Vac) ± 10% 200, or 240
Operating Temperature: 50 to 100F, (10 to 38F)
Humidity: 10 to 90%, non-condensing
CE Compliant: Yes
