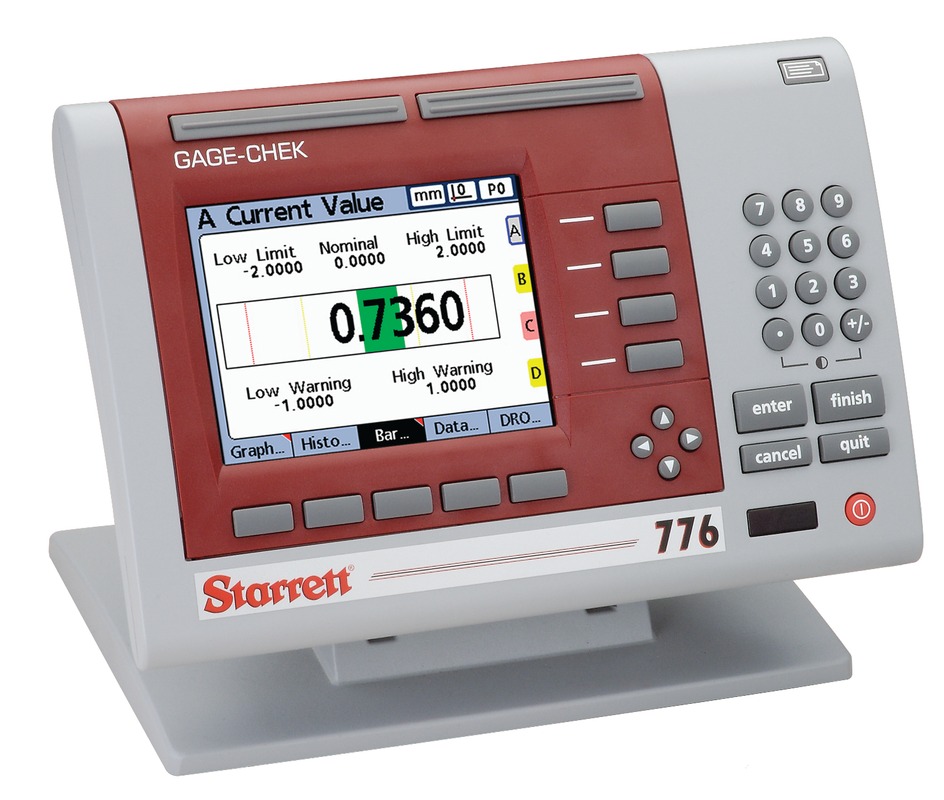

Starrett GAGE CHEK- 180-ST 776E Gage-Chek Multi-Axis, Measured Value Display

Description

Gage-Chek Multi-Axis, Measured Value Display

Features:
Large (6″) color flat-panel LCD screen built into a compact ergonomically designed case with an adjustable tilt base
Supports 8 input channels. These can be mathematically combined to display dimensions such as flatness, volume or runout
Screens include individual readings with the capacity to display four lines simultaneously, bar and dial position style displays, graphs and SPC data
Supports Starrett 776 Series LVTD probes
Measurements can be taken by the operator or in a semi-automated manner
Large comfortable buttons allow easy selection of measurement functions, display screen changes, data entry, and zeroing the screen
Speaker and external jack outputs can be adjusted to compensate for noisy work environments.
Earphones can be plugged into speaker jack for silent operation
Two 3″ x 1/2″ keys placed over the screen can be programmed as hot keys for frequently used functions
Optional foot switch available
Display Digit Size: .45″
Enclosure (WxHxD): 11.5″x7.5″x2.75″
Base Width (WxHxD): 10″x2″x .5″
Enclosure Weight: 3.5 lbs.
Base Weight: 7 lbs.
External Connections: Foot switch,
Remote Keypad, Touch Probe,
RS-232C Serial Port, Parallel Port
Outputs: 2 Relay Outputs

Packaging:
Unit Pack Height (in):7.8
Unit Pack Height (mm):198.12
Unit Pack Item Qty:1
Unit Pack Length (in):17.6
Unit Pack Length (mm):447.04
Unit Pack Weight (kg):6.80388
Unit Pack Weight (lbs):15
Unit Pack Width (in):12.3
Unit Pack Width (mm):312.42
