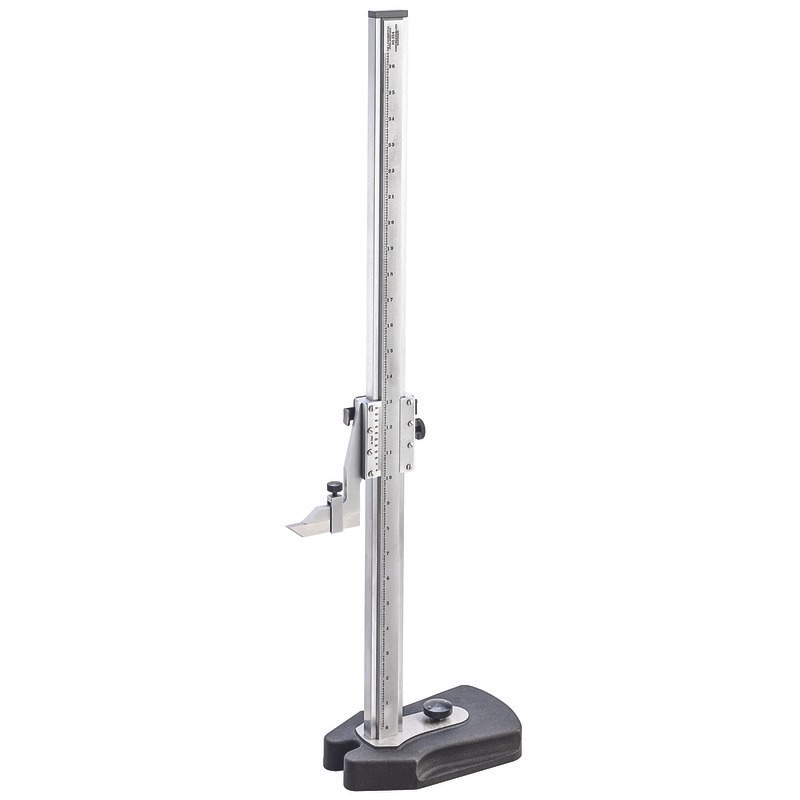

Starrett GAUGE VERNIER HEIGHT MASTER 0-24 254Z-24 Master Vernier Height Gage

Description

Master Vernier Height Gage, 0 – 24″ Range

Features:
50-division vernier scales permits half as many bar graduations as single vernier tools. These graduations provide easy reading to .003
Flush fitting of the vernier scales to the main scale eliminates parallax. Vernier scales are adjustable
Black lines and figures against Starrett satin chrome finish make reading easy
Scriber and base are designed for direct reading from zero (bottom of base)
Quick-adjust release on the slide allows for fast positioning
Extremely fine adjustments by a knob on the base isolating the column and slide from external pressures
Additional remote fine adjustment located on top of the bar for sizes 36 (900mm) and larger
Special master bar design and the balanced design and weight of the base eliminates vibration
Master bars on models up to 24 and 600mm are hardened and stabilized
Base is hardened, ground, and lapped square with the bar and has finger grooves to provide ease of movement
Vertical bar is positioned near the center of the base for balance and stability
Versatile tool will scribe lines, mount dial indicators or electronic probes, and accept depth attachments

Specifications:
Country of Origin :United States
Range (in):0 – 24″
Max. Range (in):24
Min. Range (in):0
Graduations (in):.001″

Compliance:
SDS Indicator:No
Cal Prop 65 Chemical:Lead, Beryllium
Cal Prop 65 Warning:Yes
Cal Prop 65 Statement:WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

Packaging:
Unit Pack Height (in):7
Unit Pack Height (mm):927.1
Unit Pack Item Qty:1
Unit Pack Length (in):36.1
Unit Pack Length (mm):325.12
Unit Pack Weight (kg):14.061352
Unit Pack Weight (lbs):32.15
Unit Pack Width (in):13.4
Unit Pack Width (mm):185.42
