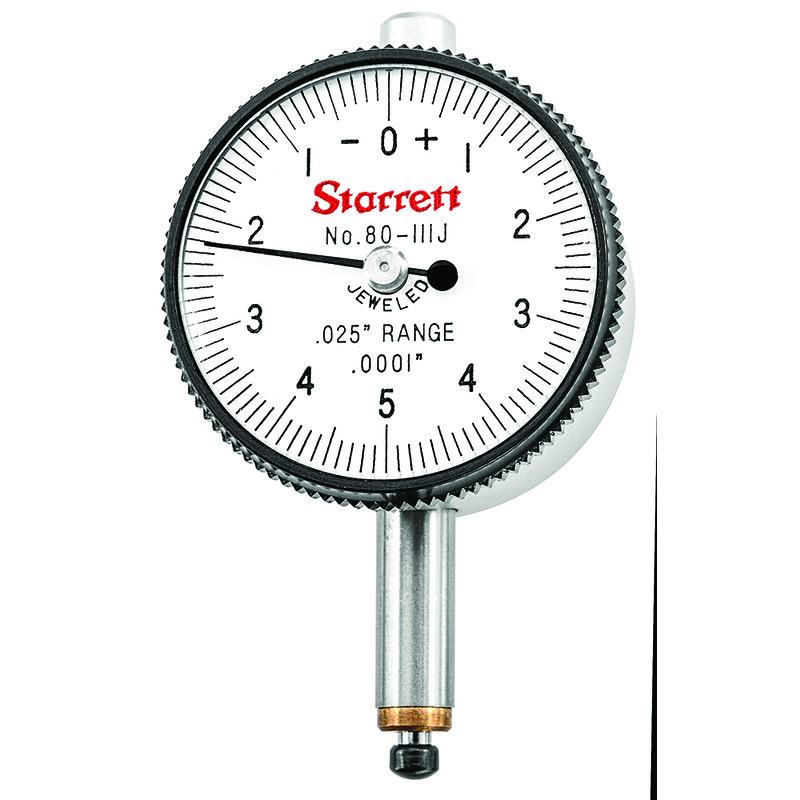

Starrett – MINI-CATOR ASSEMBLY .0001 MODEL

Description

Mini Dial Indicator, 0-.025″ Range, 0-5-0 Balanced Dial, .0001″ Grads, .010″ Range Per Rev, .2185″ Stem
Features:
Built for gaging dimensions in tight places
Equipped with high precision, low friction movements and frictionally adjustable bezels for quick, positive zero setting
No-glare, white eggshell finish dials
Black bezel, silver finish on case
Furnished with balanced dial, jeweled bearings and lug-on center back
Black bezel, silver finish on case
Unbreakable crystal
Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
Hardened stainless steel stem
Hardened stainless steel rack and spindle
Hardened stainless steel gears and pinions
The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings
No-glare satin finish on case
Direct acting compression spring eliminates side friction
Contact points and backs can be ordered individually. Order by part number/EDP number
Frictionally adjustable bezels for quick, positive zero setting
Easy readability with the best, balanced style of graduation and number combination
Balanced and tapered hands are easy to follow
Furnished with balanced dial, jeweled bearings and lug-on-center back.

Specifications:
Graduations (in): .0001″
Total Range (in): .025″
Range One Rev. (in): .010″
Dial Reading: 0-5-0
Dial Color: White
Stem Diameter (in): .2185″
