Starrett – SURFACE ROUGHNESS TESTER

Description

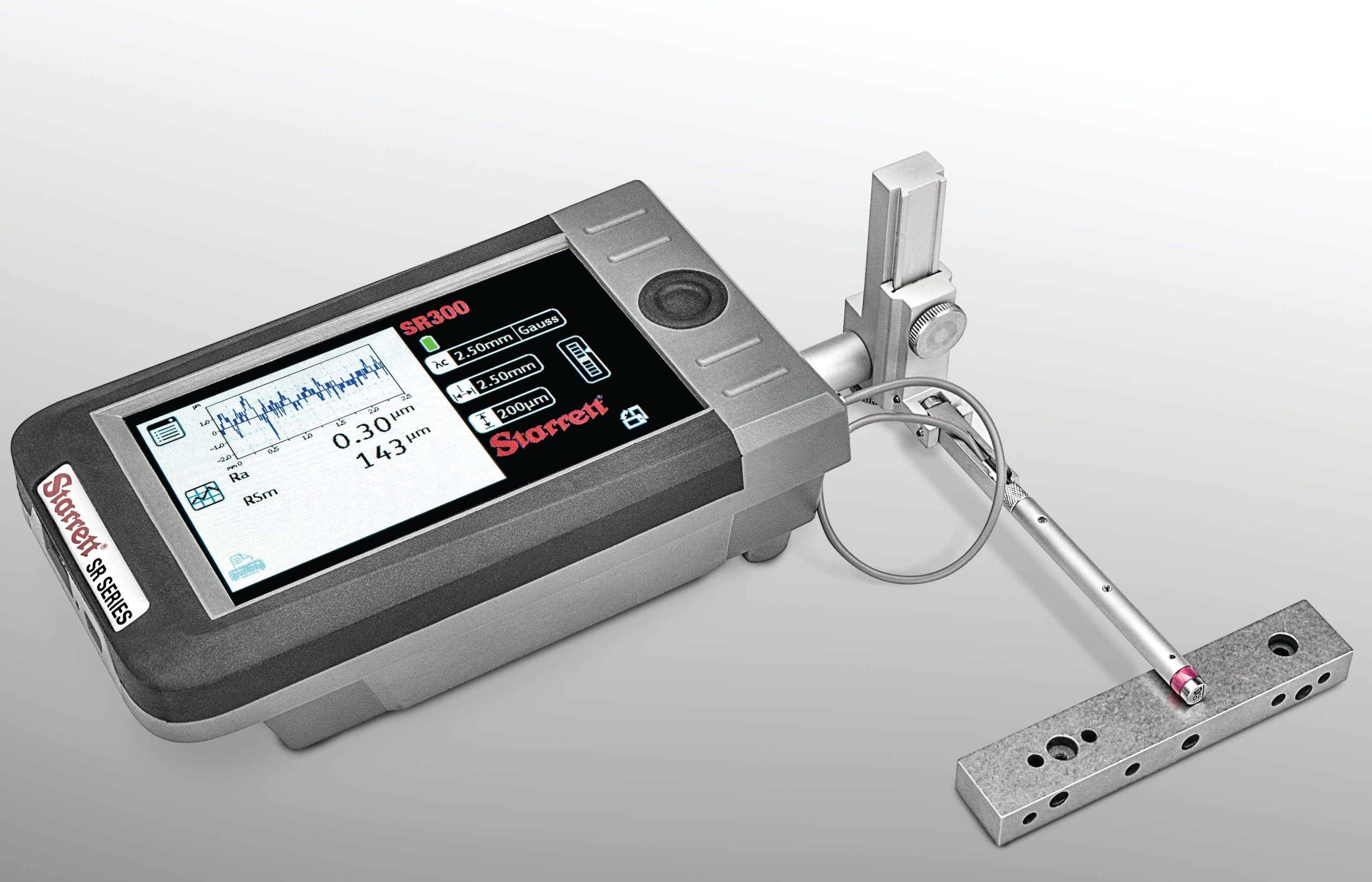

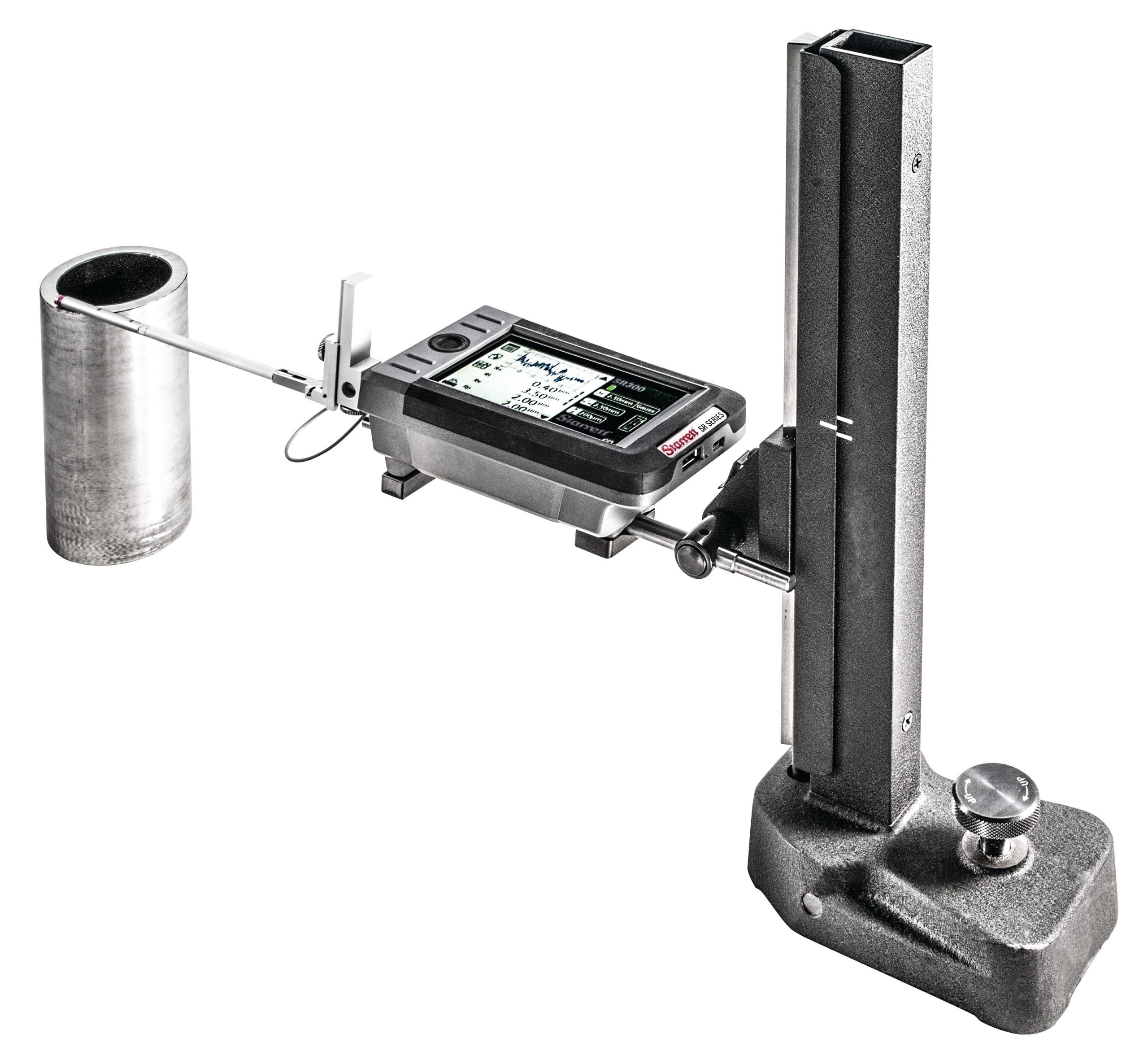

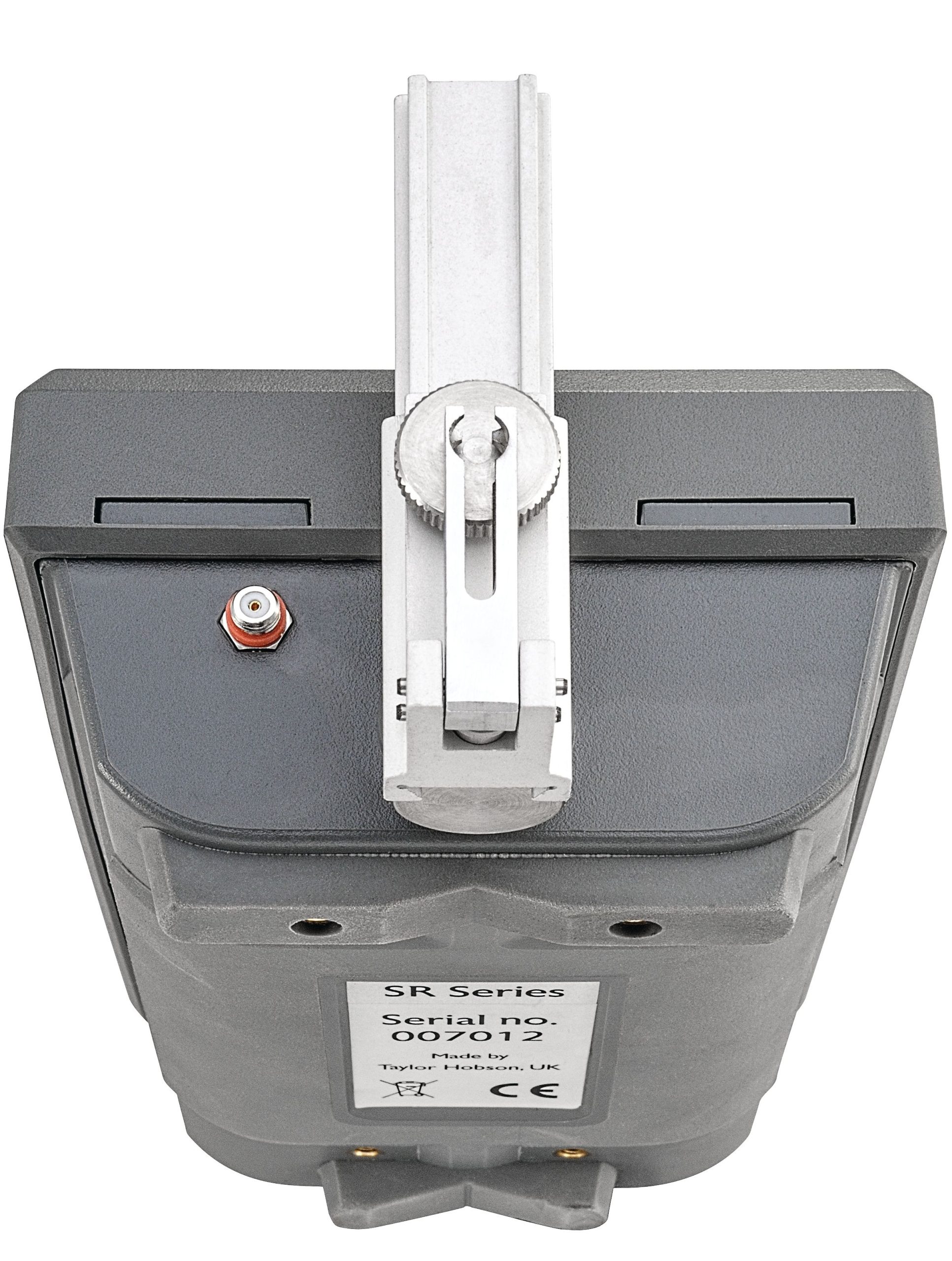

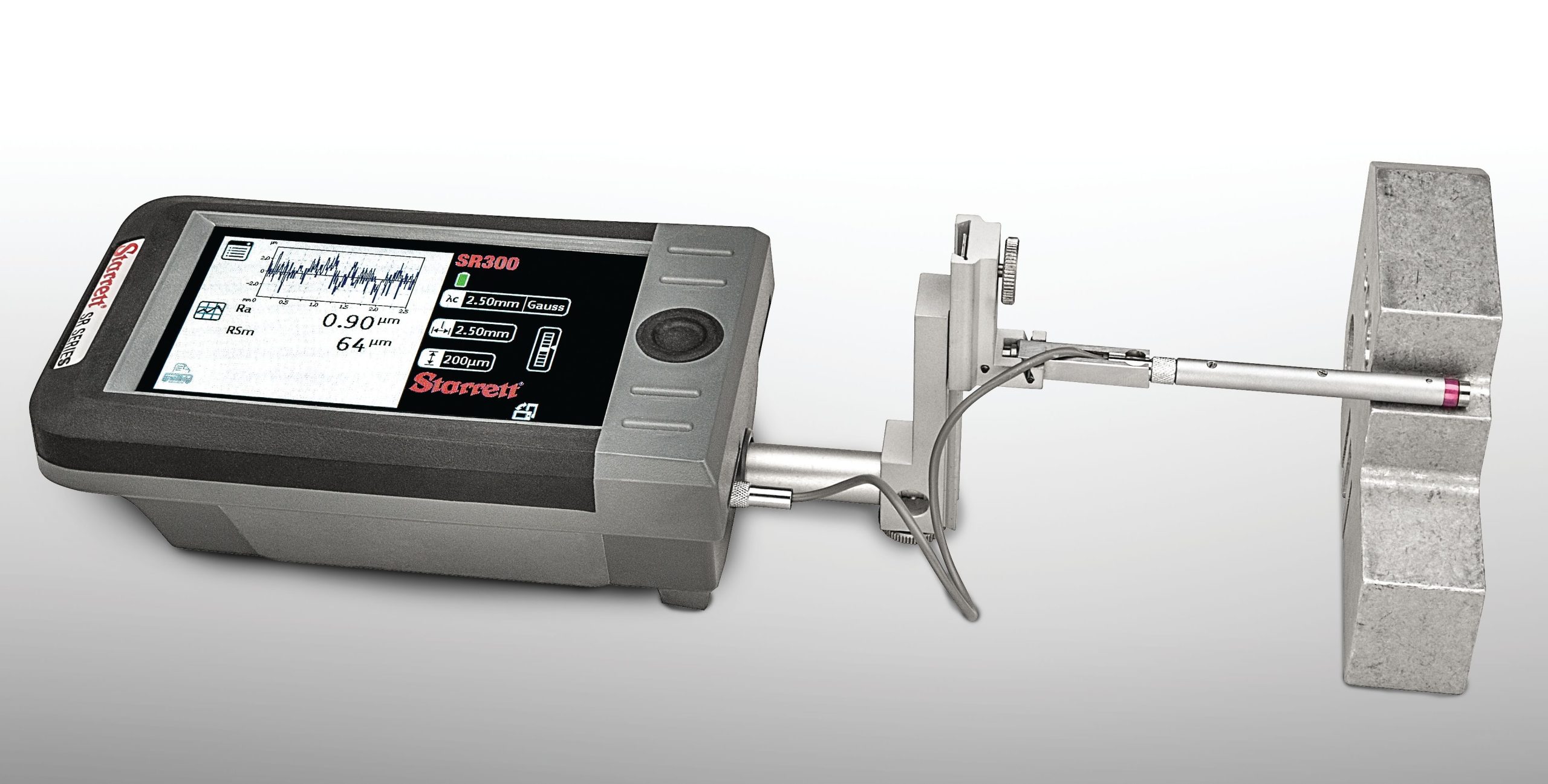

Surface Roughness Tester

Features:
Large screen display
Unique stylus lift mechanism for total flexibility
Many application specific parameter options
Comprehensive selection optional accessories and pickups
Long traverse length and extended pickup reach
Stores of up to 100 readings

Specifications:
Country of Origin :United Kingdom
Cutoff Lengths:0.01, 0.03, 0.3″ / 0.25, 0.8, 2.5, 8mm
Filter:2CR or gaussian (selectable)
Measuring Range:200/100/10μm
Pick-up Stylus:Inductive
Roughness Parameter:Ra, Rz, Rt, Rp, Rmr, Rpc, Rsm, Rz1max, Rsk, Rda
Accuracy (in):2% of reading + LSD μm
Tracer Tip:Diamond stylus Tip radius 200μ” / 5μm unless otherwise specified
Tracing Length:0.01-0.49″ / 0.25-12.5mm
Tracing Speed:0.04″/sec, 1mm/sec

Compliance:
Cal Prop 65 Chemical:Lead
Cal Prop 65 Warning:Yes
Cal Prop 65 Statement:WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Contaminated if Opened:No
Fragile:No
Hazmat Indicator:No
PMRA Regulated:No
Refrigerant Indicator:No
RoHS (EU):No
SDS Indicator:No
Subject to Environmental Change:No
Temperature Sensitive:No

Packaging:
Unit Pack Height (in):12.75
Unit Pack Item Qty:1
Unit Pack Length (in):16
Unit Pack Weight (lbs):4.63
Unit Pack Width (in):4.75
