Starrett – Taper Gage .010-.150in .001in Grad (0.3-4mm 0.05mm Grad)

Description

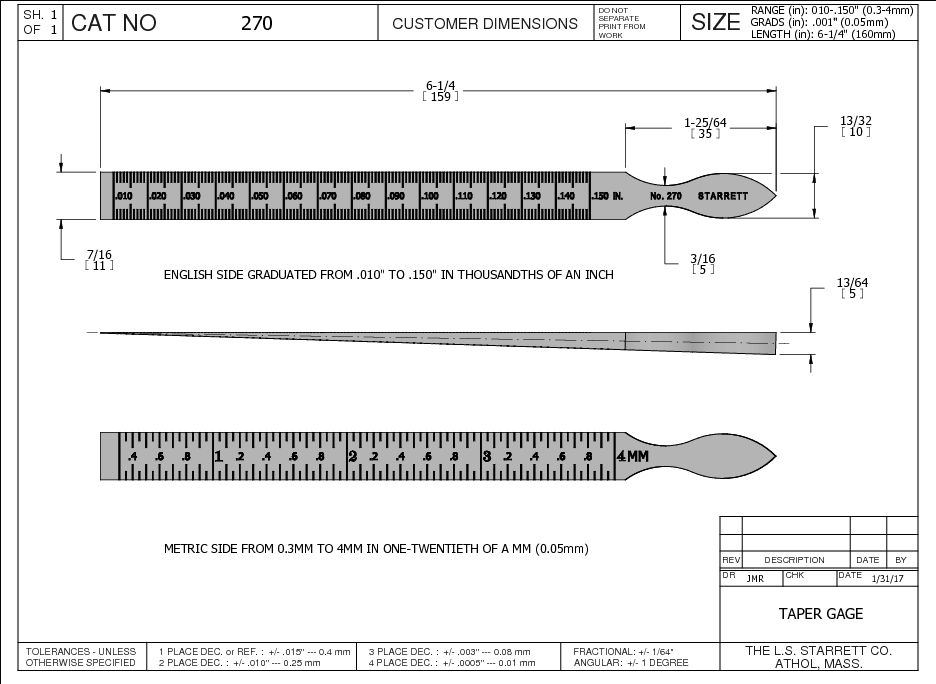

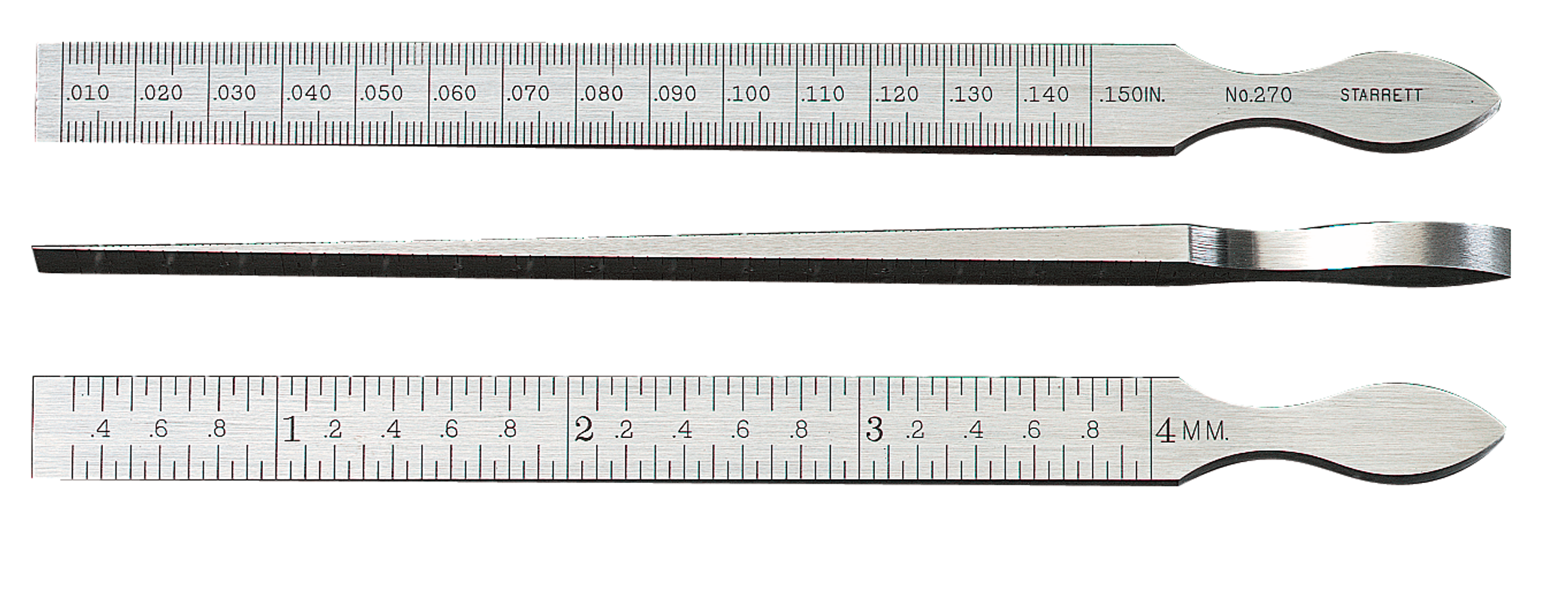

Taper Gage, .010-.150″/0.3-4mm Range, .001″/0.05mm Graduations, 6-1/4″/160mm Length

Features:
Very useful tool for bearing work and for gaging slots
Made of quality tool steel and accurately tapered throughout entire length for quick and convenient measuring
11mm (7/16″) wide by 160mm (6-1/4″) long
Can be used as a precision shim
One side graduated from .010″ to .150″ in thousandths of an inch; the reverse side from 0.3mm to 4mm in one-twentieth of a mm (0.05mm)

Specifications:
Country of Origin :China
Range (in):010-.150″
Range (mm):0.3-4mm
Max. Range (in):0.15
Max. Range (mm):4
Min. Range (in):0.01
Min. Range (mm):0.3
Graduations (in):.001″
Graduations (mm):0.05mm
Length (in):6-1/4″
Length (mm):160mm

Compliance:
PMRA Regulated:No
Refrigerant Indicator:No
RoHS (EU):No
SDS Indicator:No
Subject to Environmental Change:No
Temperature Sensitive:No
Cal Prop 65 Warning:No
Conflict Minerals:No
Contaminated if Opened:No
Fragile:No
Hazmat Indicator:No

Packaging:
Unit Pack Height (in):0.8
Unit Pack Height (mm):22.86
Unit Pack Item Qty:1
Unit Pack Length (in):6.8
Unit Pack Length (mm):172.72
Unit Pack Weight (kg):0.0453592
Unit Pack Weight (lbs):0.15
Unit Pack Width (in):1.5
Unit Pack Width (mm):40.64
