Starrett TEST INDICATOR- DIAL 1-9/16 BTR91014-5 King Cut Reciprocating Saw Blade

Description

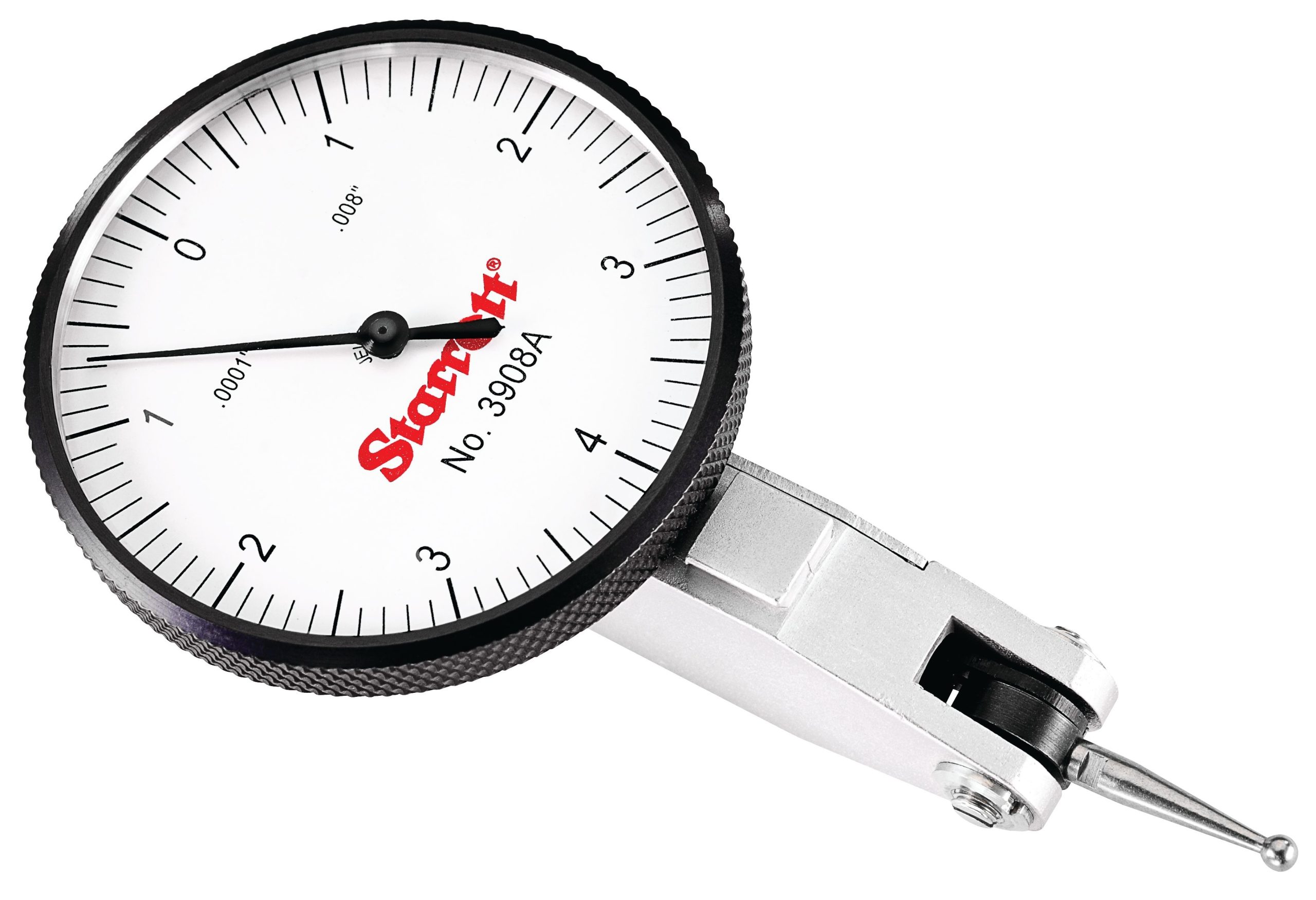

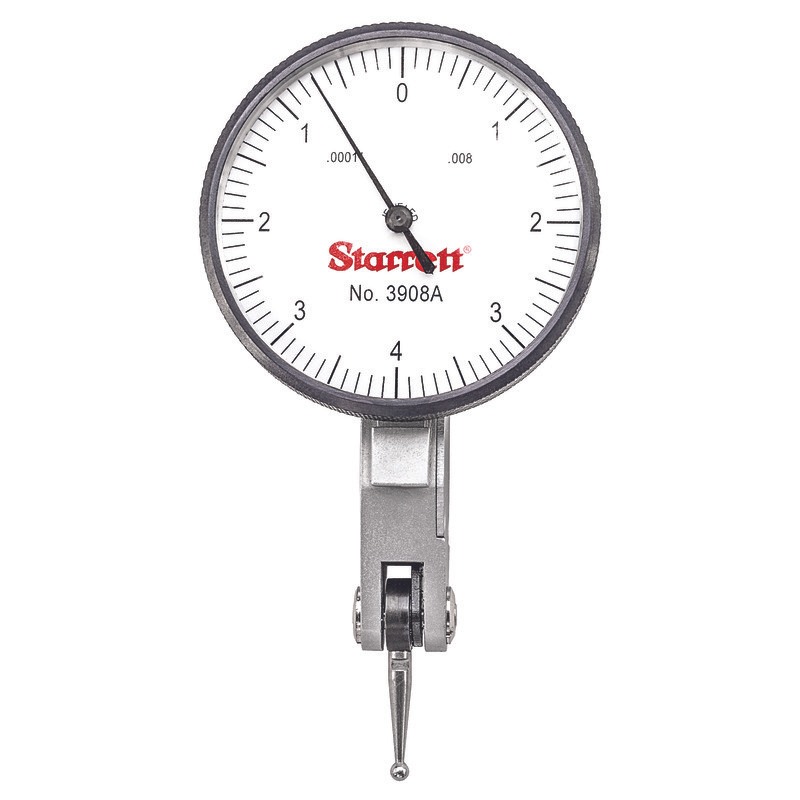

Dial Test Indicator with Dovetail, .008″ Range, 0-4-0 1-9/16″ Dial Face, .0001″ Graduations, Two Dovetail Clamps, Case

Features:
Three dovetail positioning mounts work with most existing test indicator accessories
Precision gear-driven design with smooth, jeweled movement
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Meets or exceeds ANSI/ASME accuracy specifications
High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators

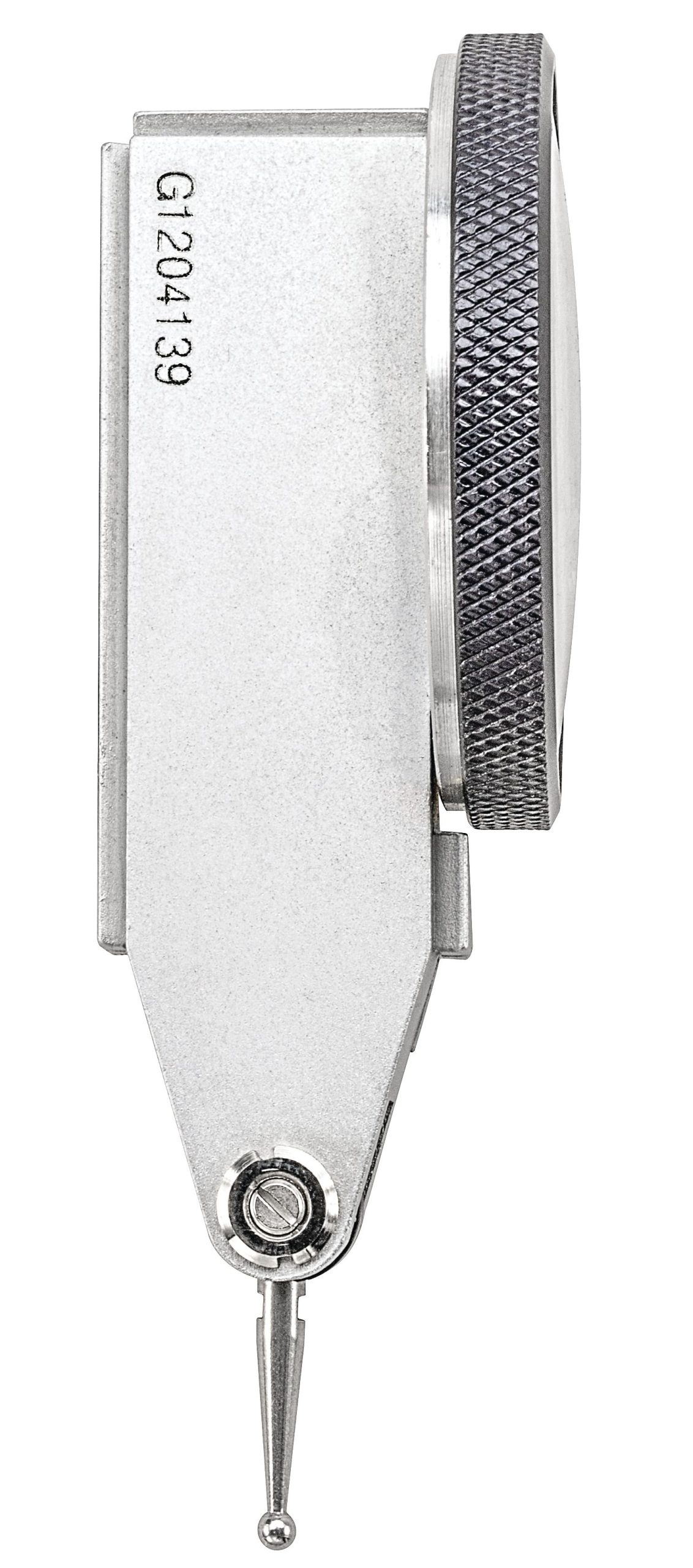

Narrow body for in reach ability
Satin chrome finish for durability

Specifications:
Country of Origin :China
Range (in):.008″
Dial Color:White
Dial Reading:0-4-0

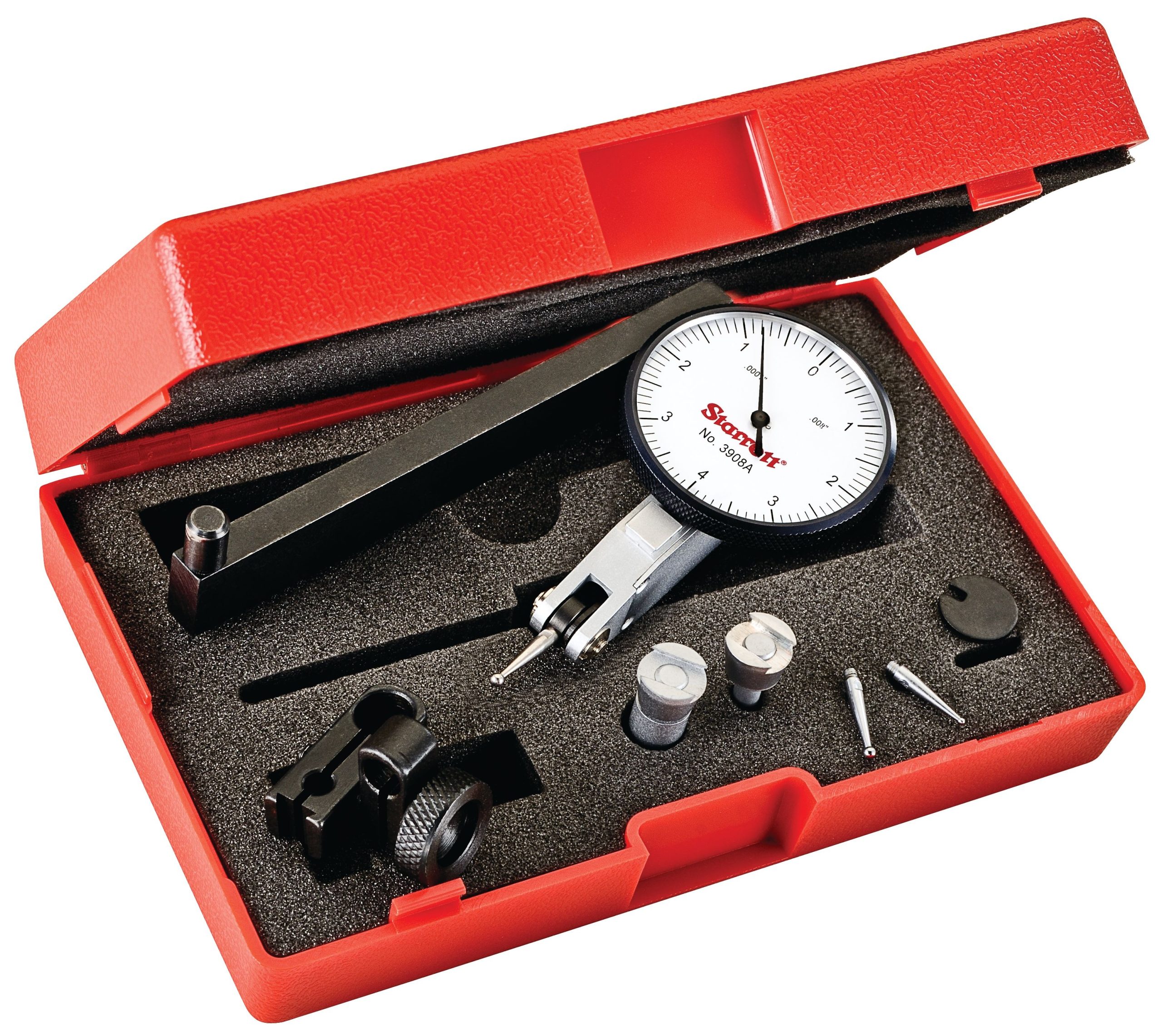

Attachments:.156″ contact point, 3/8″ & 5/32″ dovetail clamps & case
Max. Range (in):0.008
Min. Range (in):0
Contact Ball Material:Steel
Contact Point Ball Diameter (in):.078″ (2mm)
Contact Point Ball Diameter (mm):2mm (.078″)
Contact Point Length (in):5/32″
Contact Point Length (mm):4mm
Graduations (in):.0001″

Compliance:
Cal Prop 65 Warning:No

Packaging:
Unit Pack Height (in):1.75
Unit Pack Item Qty:1
Unit Pack Length (in):6
Unit Pack Weight (lbs):0.5
Unit Pack Width (in):4
