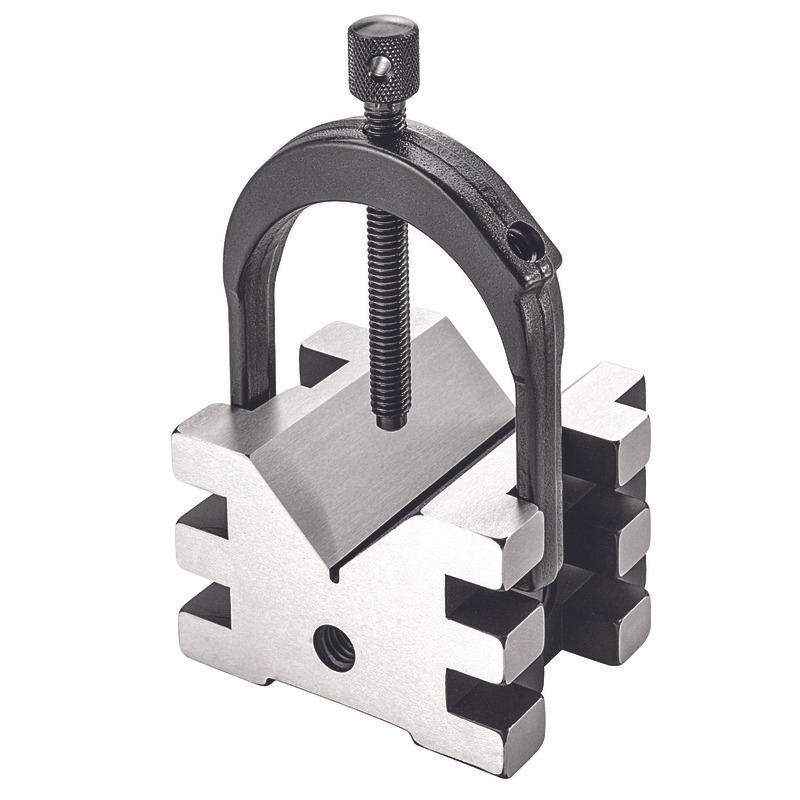

Starrett V-Block and Clamp 568A V-Block and Clamp

Description

V-Block and Clamp, 2″ (50mm) Dia. Round; 1-7/16″ (36mm) Square (1-9/16″ (40mm) with Screw at Top) Capacity

Features:
Hardened steel, precision ground parallel and square
V-grooves are ground central and parallel to the sides and base – perfect alignment in matched pairs

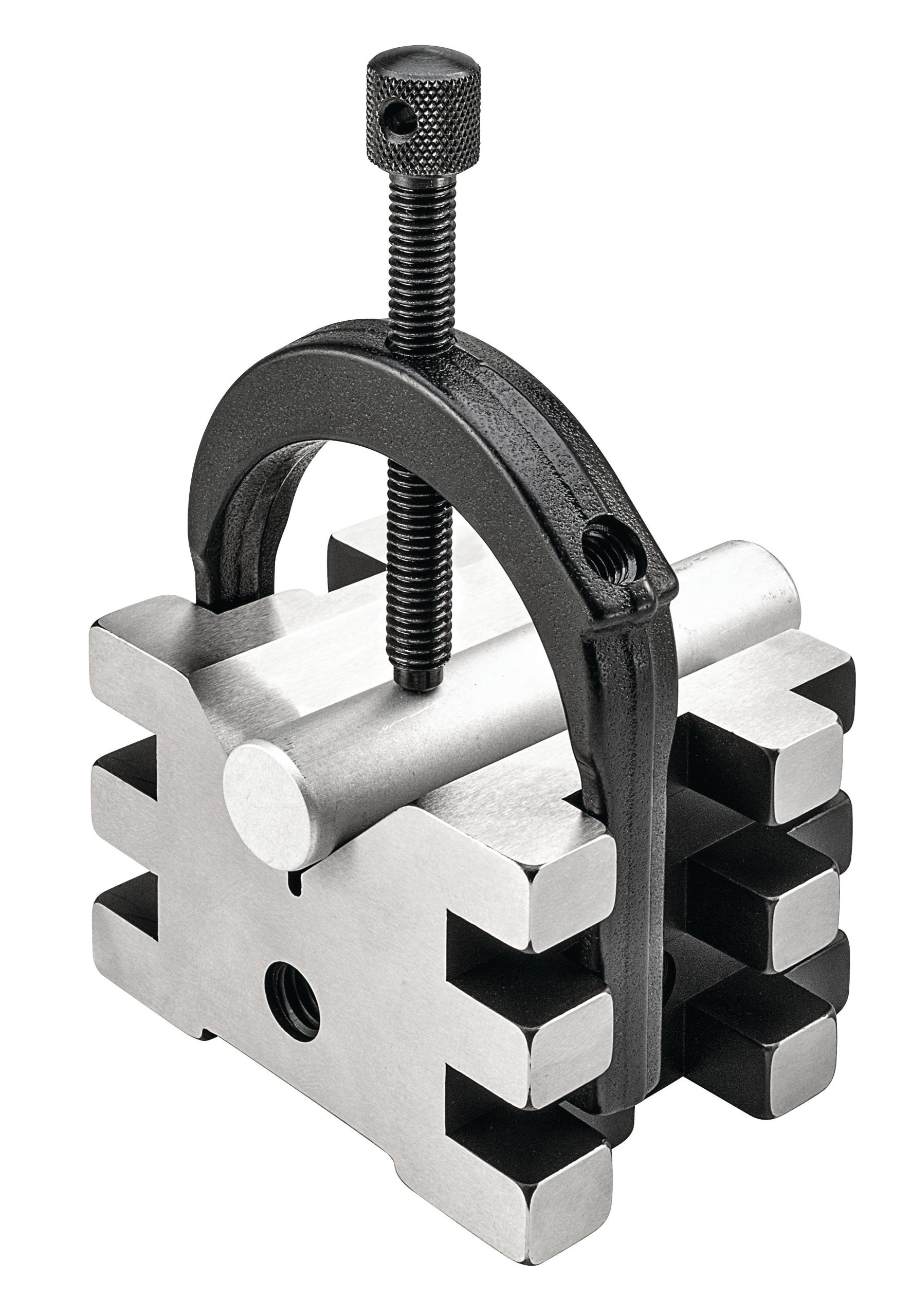

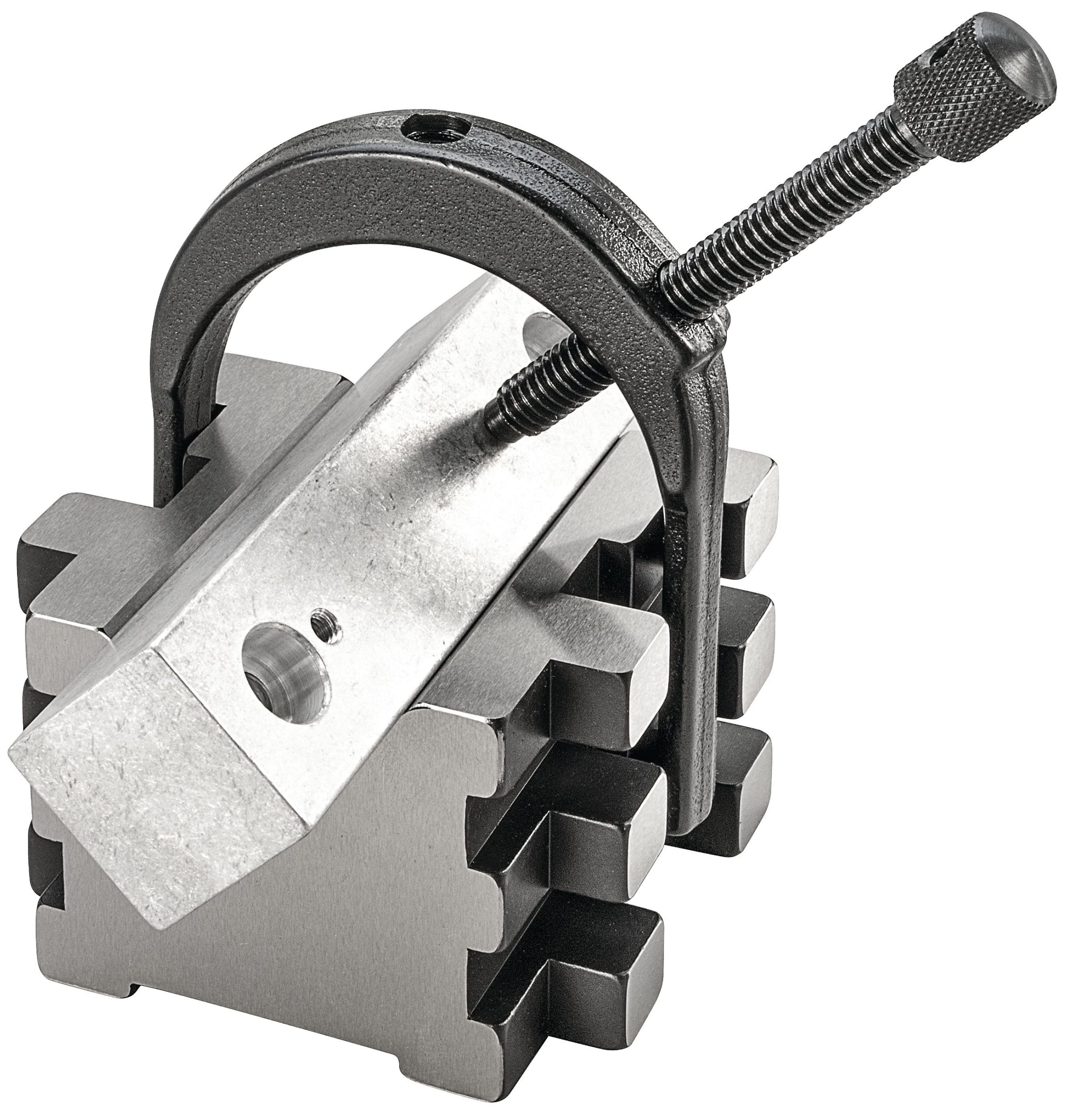

Clamps have screw holes at 45 Deg and 90 Deg to hold either square or round work
Stepped groove construction permits high or low clamp mounting or small or large work
Clamps do not project over the width of the block, permitting it to be used on the base, ends or sides
3/8-16 tapped holes permit mounting blocks on faceplates or angle irons
Each block is 2-1/2″ long x 3″ wide x 2″ high (63 x 75 x 50mm)
Specifications:

Country of Origin :United States
Capacity (in):2″ Dia. Round; 1-7/16″ Square (1-9/16″ with Screw at Top)
Capacity (mm):50mm Dia. Round; 36mm Square (40mm with Screw at Top)

Compliance:
Cal Prop 65 Chemical:Lead
Cal Prop 65 Warning:Yes
Cal Prop 65 Statement:WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
SDS Indicator:No

Packaging:
Unit Pack Height (in):3.5
Unit Pack Height (mm):91.44
Unit Pack Item Qty:1
Unit Pack Length (in):6.3
Unit Pack Length (mm):157.48
Unit Pack Weight (kg):1.587572
Unit Pack Weight (lbs):3.4
Unit Pack Width (in):3.5
Unit Pack Width (mm):88.9
