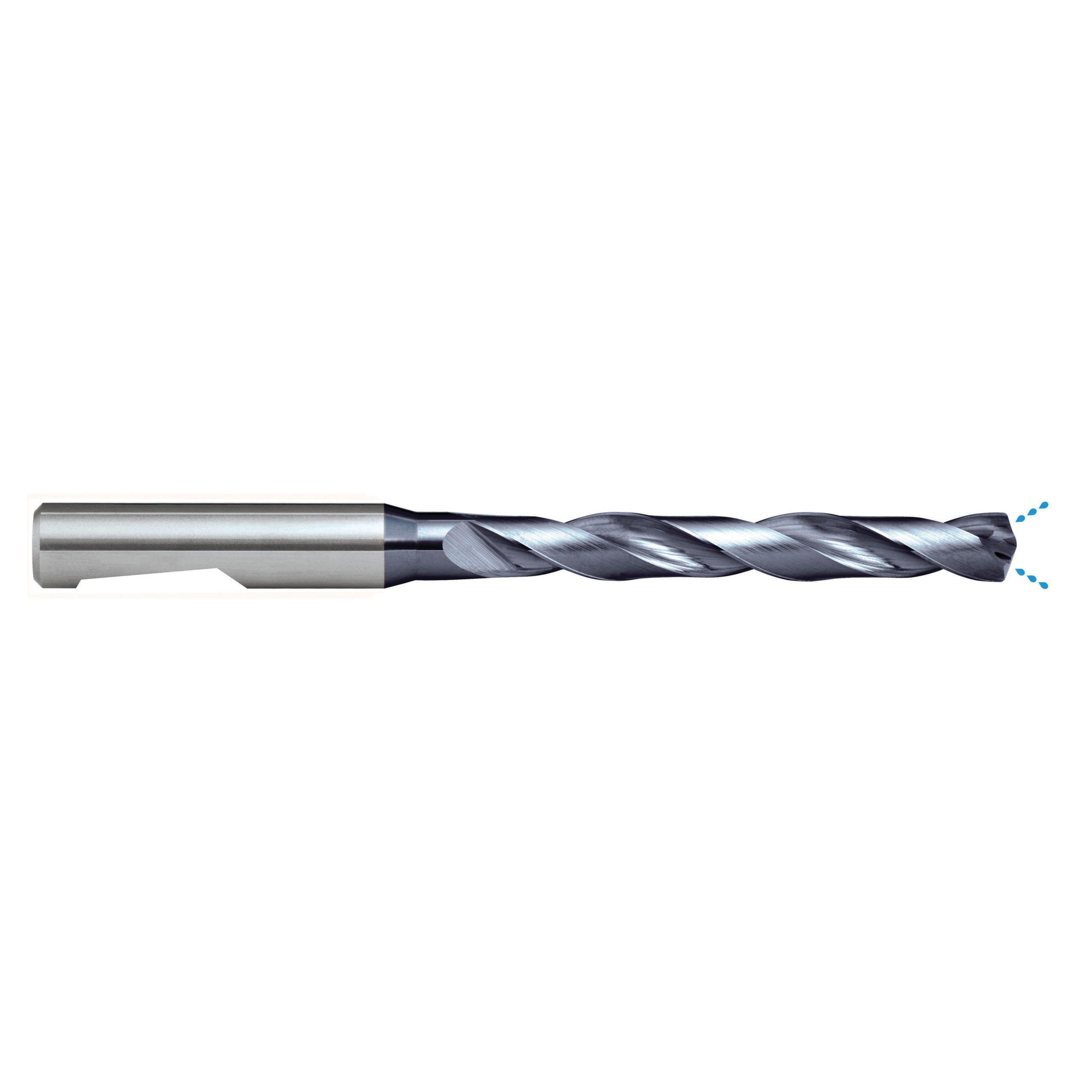

SUTTON DRILL D334 6.8 5xD IK R30 N DIN6537-HE VHM AlCrN

Description

Drill, 5xD, R30 N, IK, Shank Form HE
Strong core with internal coolant supply
Micro geometry & surface conditioning for optimal chip control
AlCrN for maximum tool life

Specifications:
Designation: N
Material: VHM
Finish: AlCrN
Max Cut Depth: 5xD:
Shank Form:HE
Helix Angle: R30x
Point Tolerance: m7
Shank Tolerance: h6:
Point Angle: 140°
Point Form: Form C
Standard: DIN6537

Applications:
Steel – Non-alloy, cast & free cutting (~ 0.15 %C)
Steel – Non-alloy, cast & free cutting (~ 0.45 %C)
Steel – Non-alloy, cast & free cutting (~ 0.75 %C)
Steel – Low alloy & cast < 5% of alloying elements
Steel – High alloy, cast & tool
Steel – Corrosion resistant & cast – Martensitic
Stainless Steel – Precipitation Hardening
Cast Iron, Grey (GG) – Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) – Pearlitic
Cast Iron, Malleable – Ferritic
Cast Iron, Malleable – Pearlitic
Hardened steel
Cast Iron – Chilled

Product Atribute:
Thread Diameter (mm): 6.8
Overall Length (mm): 91
Shank (mm): 8
Flute Length (mm): 53
Group Code: D334
Type: Carbide Drill Bit
System of Measurement: DIN 6537, Metric
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish: Aluminium Chromium Nitride (AlCrN)
Helix Angle: R30x
Shank Tolerance: h6
Point Angle: 140°
Maximum Cut Depth: 5xD
Shank Form: HE
Point Tolerance: m7
Point Form: Form C
