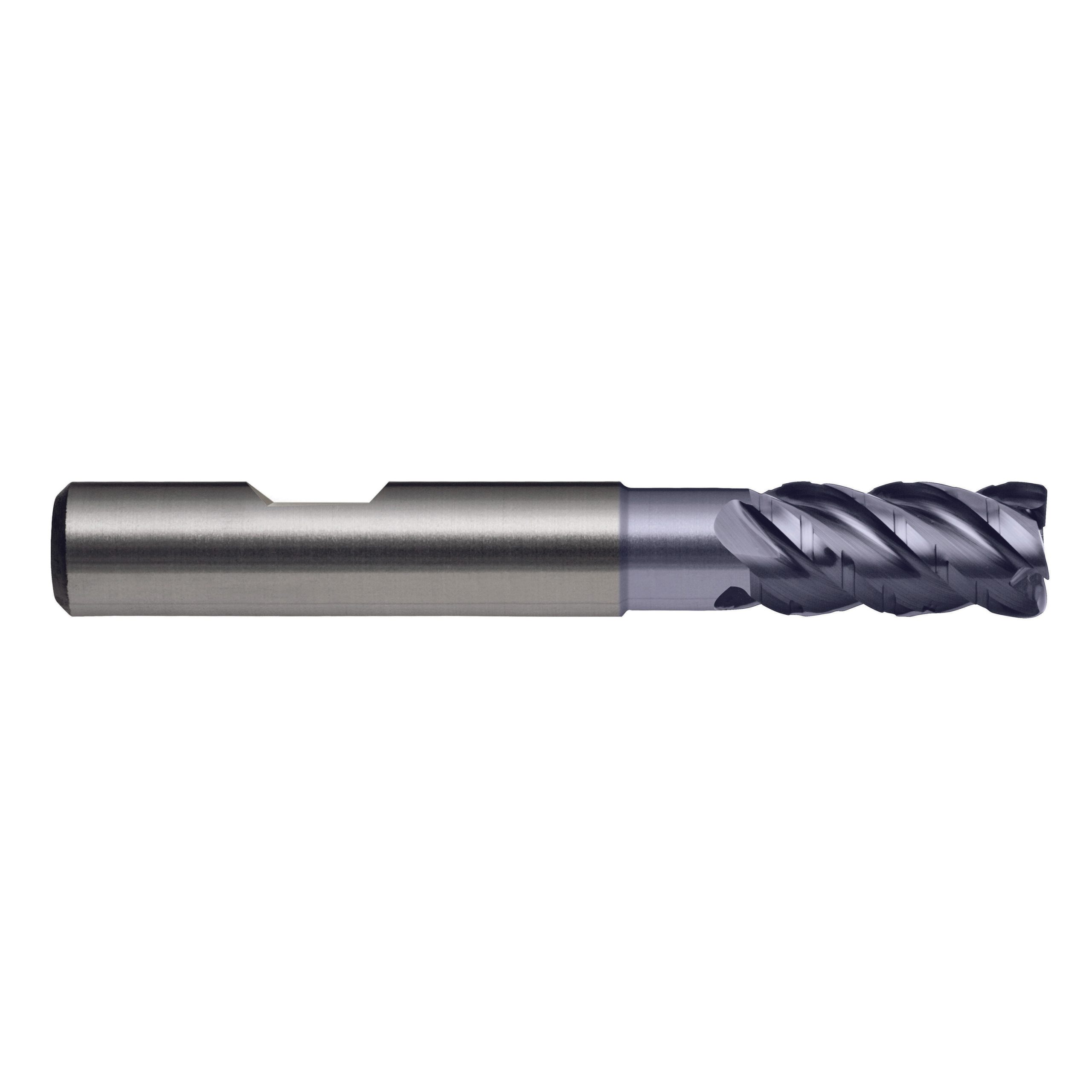

SUTTON E/MILL E546 5mm LNG 4 FL R45-STF DIN6527L-HB VHM Ultra AlCrN

Description

Features:
Rougher, STF, 4 Flute, R45 UNI, Long, Harmony for high performance
For finishing & semi-roughing applications
Suitable for materials up to 1400 N/mm2

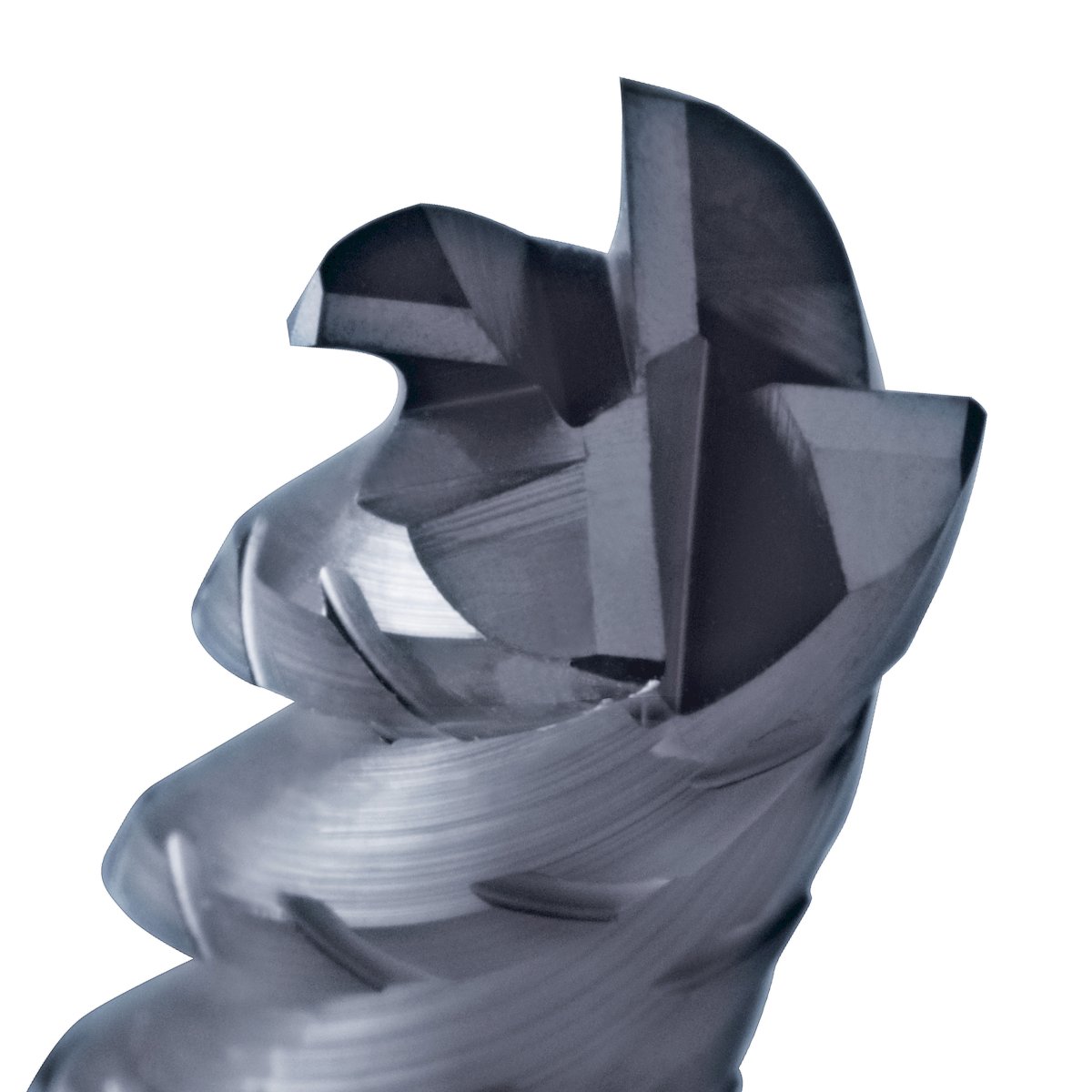

Unequal flute design with Special Tooth Form (STF), produces excellent surface finish
Eliminates the use of finishing Endmills in many cases
AlCrN for longer tool life

Product Attributes:

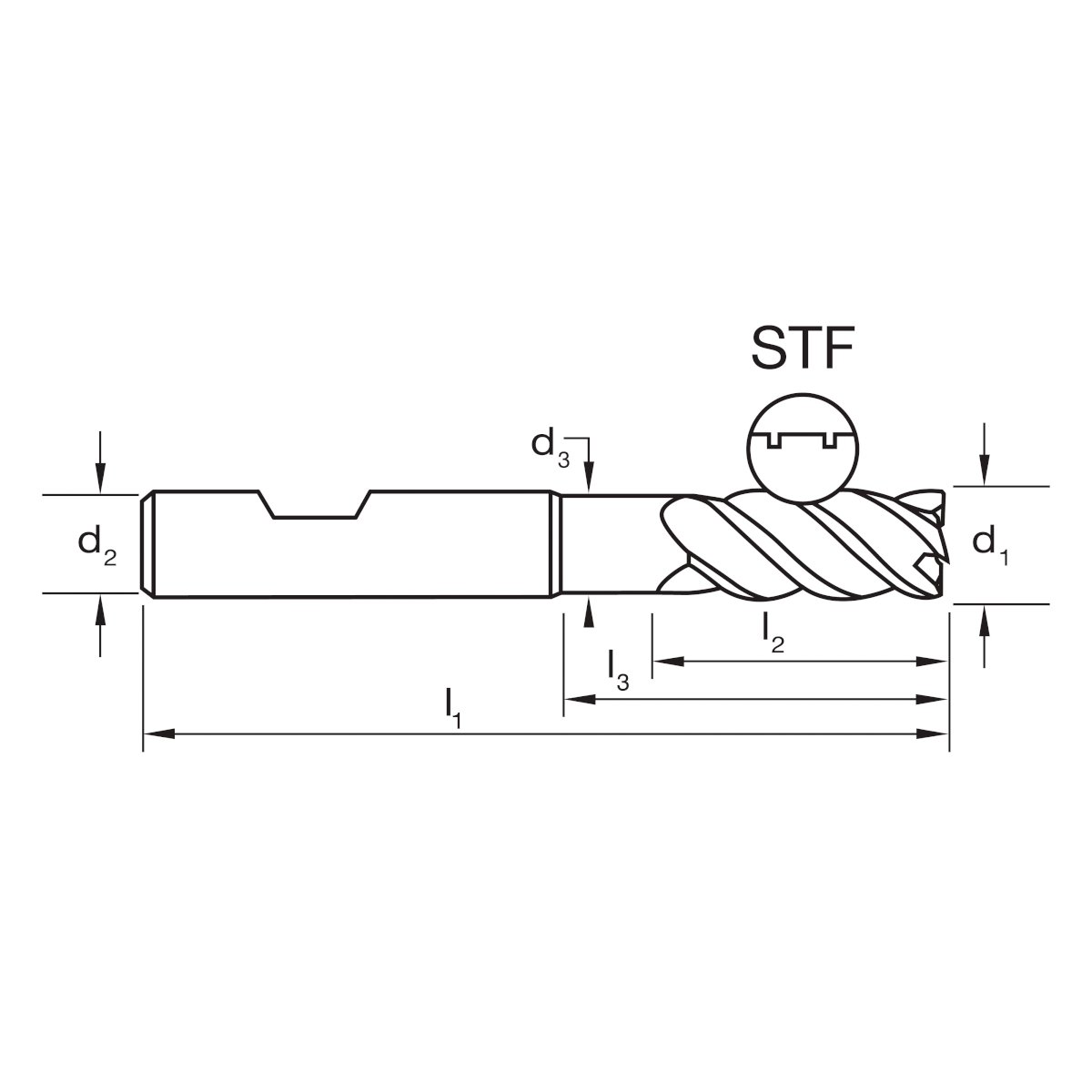

Diameter d1 (mm): 5.00
Length l1 (mm): 57
Length l2 (mm): 13
Length l3 (mm): 20
Diameter d2 (mm): 6
Designation: UNI
Material: VHM-ULTRA
Finish: AlCrN
Shank Form: HB
Helix Angle: R45
Point Tolerance: e8
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Standard: DIN 6527L
Rake Angle: 8
