SYKES TORQUE WRENCH MOTORQ GEN 2 500 3/4

Product Code: 802500

$1,722.63$1,566.03 Ex. GST

Product Code: 802500 SKU 802500 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

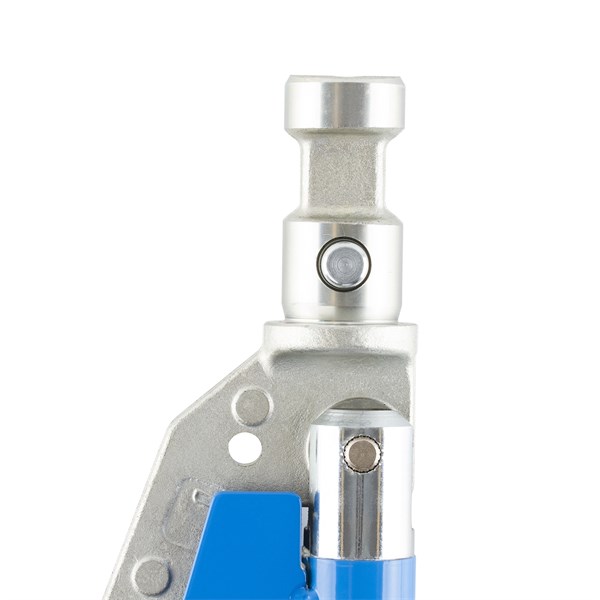

New Generation Mortorq 2-piece split torque head and handle design
Unique profiled cam and reaction plate, provides a clear torque signal and the large break angle greatly reduces the possibility of over torqueing.
Robust construction provides accurate torque results (to ±4%) and is suitable for all heavy-duty applications

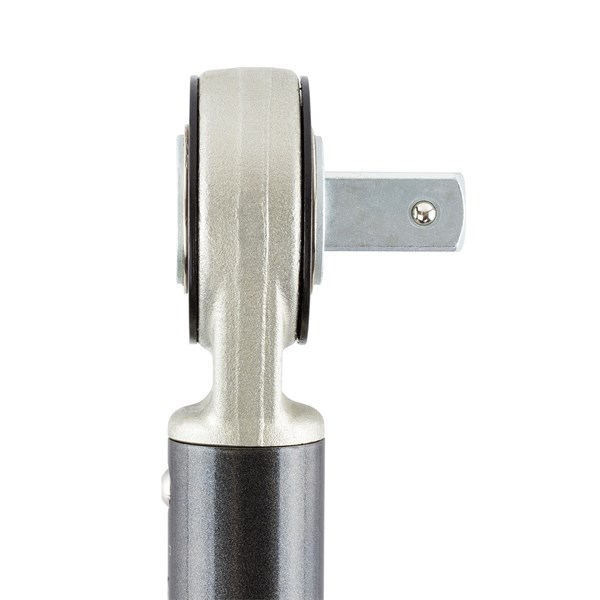

Features the renowned Sykes-Pickavant mechanism with a push-thru ratchet head that has been engineered for strength and durability while operating in both clockwise and anti-clockwise directions
New comfort handle developed to guide the user’s hand into the correct position during operation

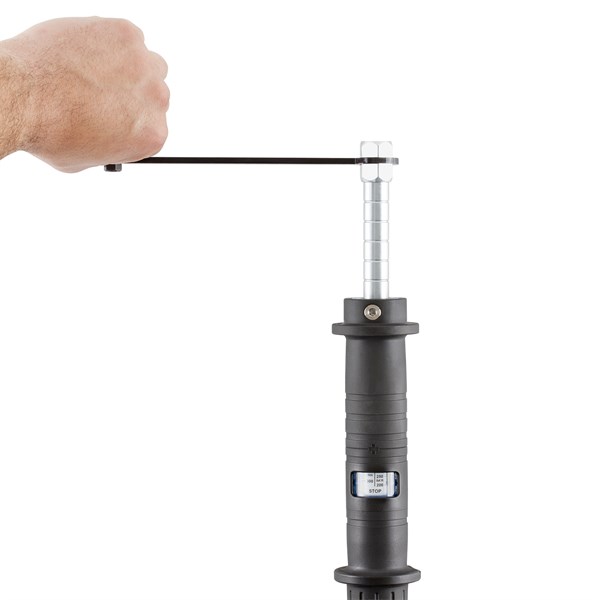

Supplied with Torque adjusting spanner to easily adjust the torque to the desired value.
Includes easy to read torque scale protected from dust, dirt and spray

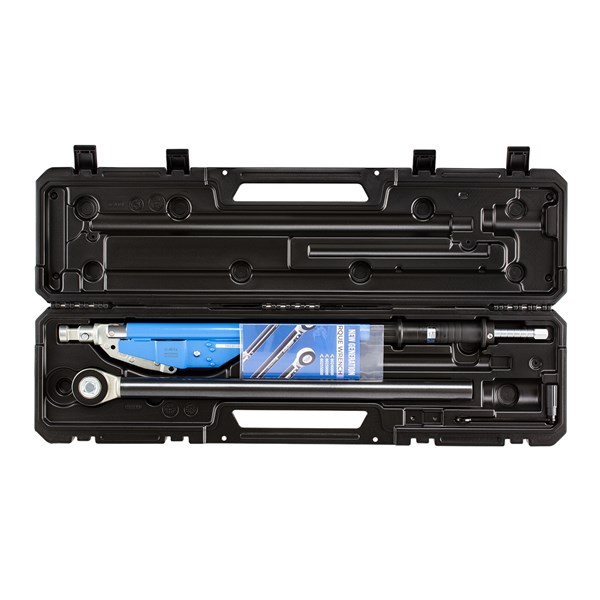

Supplied in heavy-duty storage case (970 x 260 x 95mm)
Manufactured in England to ISO 6789-1:2017 standard and supplied with a UKAS accredited calibration certificate
Replaces 800500 1st Gen 3/4″ Torque Wrench

Additional information

Weight 7.4000 kg
Dimensions
barcode
Additional Information

Accuracy: ±4%
Description – Short: New Generation Mortorq 2-piece split torque head and handle design is suitable for all heavy duty applications. Made in England
Length: 1449mm
Part No: 802500
Ratchet Diameter: 69mm
Ratchet Teeth: 36
Ratchet Type: Push-Thru
Scale Type: Dual – Analogue
Sq. Dr.: 3/4"
Style: New Gen Motorq 500
Torque Capacity Lbf. ft.: 200 – 750
Torque Capacity Nm: 300 – 1000
Weight: 7.4kg

Brand

SYKES-PICKAVANT
